SyncScan 2

SyncScan 2

Features

  • Light weight: 4kg only including battery.
  • Faster scan speed (Approximately 3 meters/minute).
  • Removable electric fan: cool down the system when in high temperature.
  • 1 or 2 ch-TOFD for your selection by license activation.
  • Support UT/PA/TOFD, suitable for weld, forging and plate inspection.
  • 32-channel PA is more suitable for inspection on extra-thick wall and high-attenuation material.
  • 32-channel PA and 2-channel TOFD work simultaneously on pressure vessel inspection (TOFD can measure thickness up to 100mm).
  • Support pitch and catch (PR) mode, corrosion inspection with dual linear array probe.
  • System ports:Encoder (support biaxial coding),SD card, USB 2pcs,VGA, Ethernet.
  • Probe ports: 4 ports for UT/TOFD probes, 1 port for PA probe.

Multiple Solutions for Welds & Corrosion

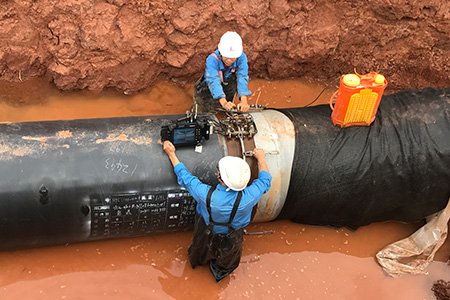

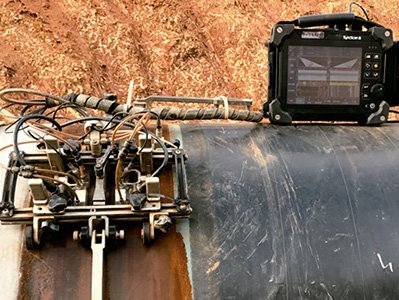

  • PAUT/TOFD Solution for Long-distance Pipeline
    For one/dual-side inspection on long-distance pipeline with OD ranging 1000-1300mm inpetrochemical industry. Dual-side PA inspection and PAUT+TOFD inspection for selection.



  • PAUT/TOFD Solution for Medium-to-large-diameter Pipeline
    For one/dual-side inspection on long-distance pipeline with OD ranging 1000-1300mm inpetrochemical industry. Dual-side PA inspection and PAUT+TOFD inspection for selection.

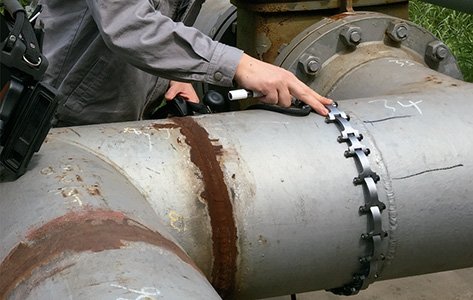

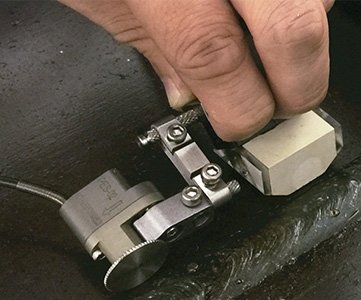

  • PAUT or TOFD Solution for Small Pipe and Medium Pipe Welds With 16 or 32 elements low-profile PA probes, suitable for girth welds inspection on small pipe (20.32-114.3mm) andmedium pipe(100-300mm). Dual-side PA inspection or TOFD inspection for selection.

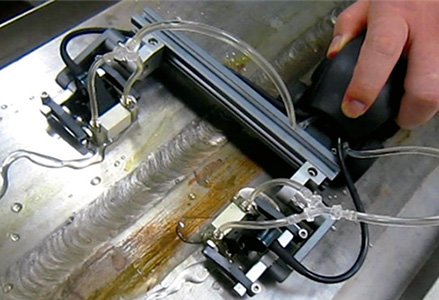

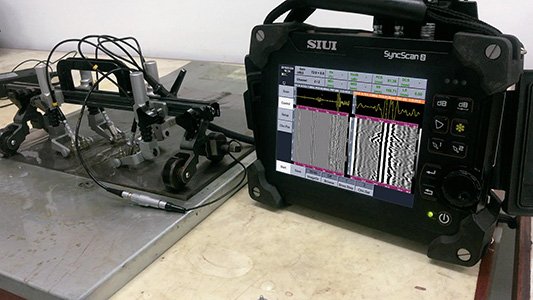

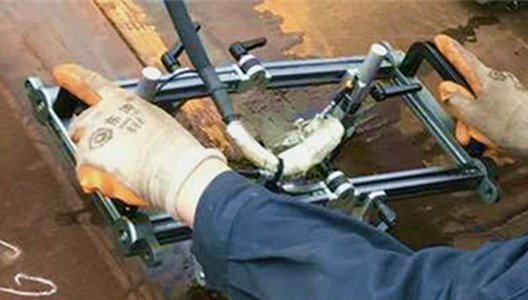

  • PAUT/TOFD Solution for Flat Weld Compatible with different crawlers for various flat weld inspection.

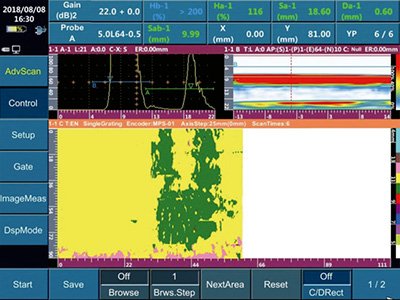

  • PAUT Solution for Corrosion With corrosion mapping scanner, SyncScan 2 can be used for PA testing on small&medium areas, immersion pipeline.

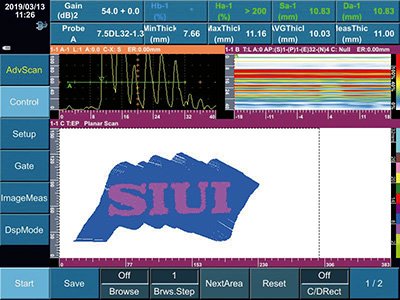

With free 2D scanner, SyncScan 2 can be used for scanning in any direction in two-dimensional space.



With dual linear array probe, SyncScan 2 can be used for detecting coarse-grained and composite materials with severe attenuation.
