"MARK-10" (Made in USA) The M3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test® technology. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions.
Basic Force / Torque Indicator

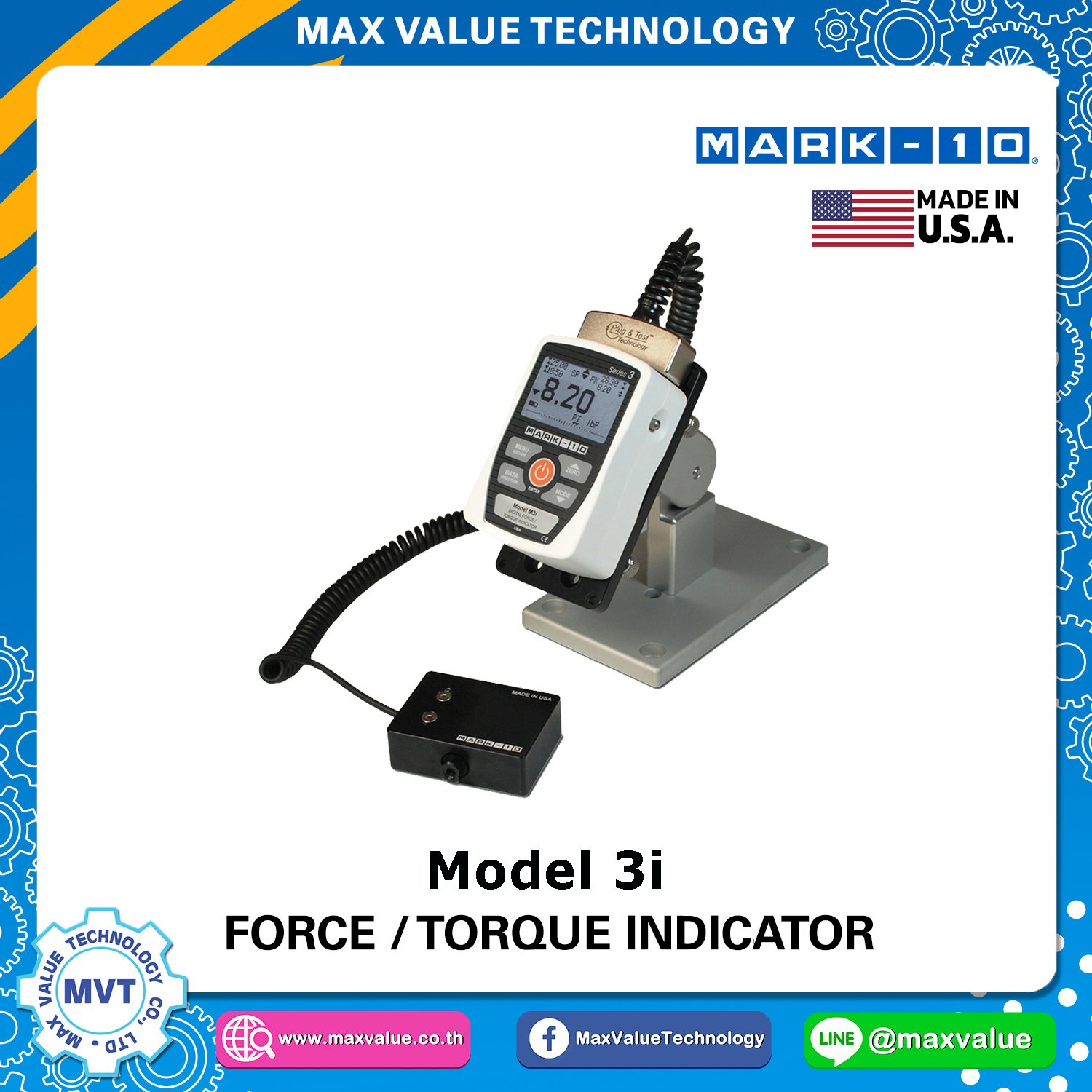

The M3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test® technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.
The M3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The M3i includes MESUR®Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation..
|M3i||Force/torque indicator, 110V|
|M3iE||Force/torque indicator, 220V European Plug|
|M3iU||Force/torque indicator, 220V UK Plug|
|M3iA||Force/torque indicator, 220V Australian Plug|
|Additional Items to Consider|
|09-1165||Spare USB cable|
|08-1026||Spare rechargeable battery|
|AC1031||Spare AC adapter, 220V EUR|
|AC1008||Stand, table top|
|Accuracy:||±0.2% of full scale|
|Sampling rate:||2,000 Hz|
|Power:||AC or rechargeable battery. |
Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
|Battery Life:||Backlight on:|
up to 7 hours of continuous use
up to 24 hours of continuous use
|Outputs:||USB / RS-232:|
Configurable up to 115,200 baud.
|Configurable settings:||Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration|
|Safe overload:||150% of full scale (display shows “OVER” at 110% and above)|
|Weight:||0.7 lb [0.3 kg]|
|Environmental requirements:||40 – 100°F, max. 96% humidity, non-condensing|
Plug & Test Sensor
Select from a broad range of interchangeable force and torque sensors, with force ranges up to 10,000 lbF (50 kN) and torque ranges up to 5,000 lbFin (550 Nm)
Plug and Test Force Sensors
|R01||S-Beam force sensor, tension and compreession|

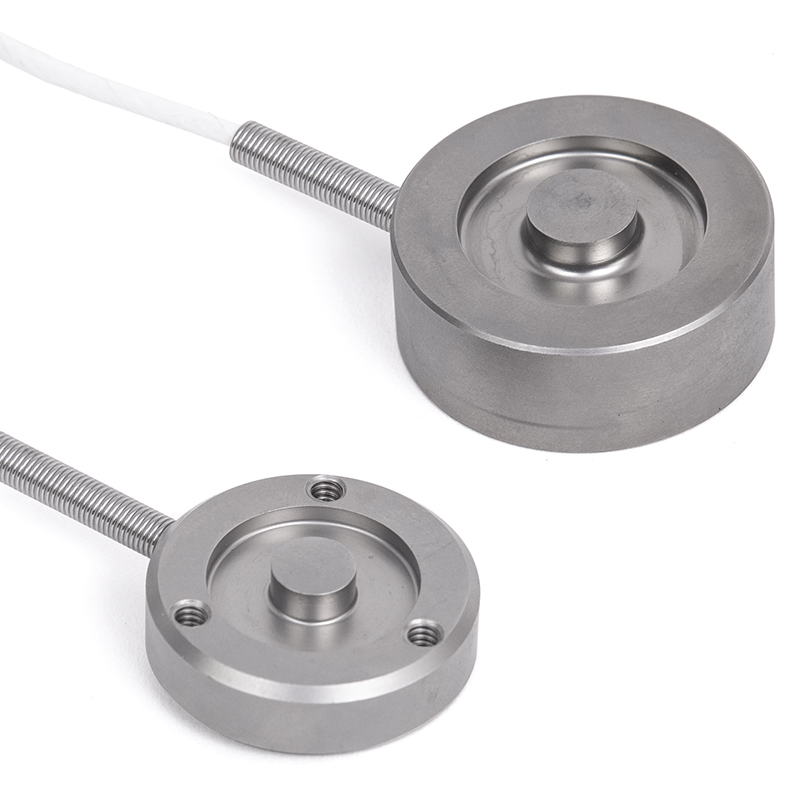

|R02||Miniature button force sensors, compression only|
|R03||Inline force sensors, tension and compression|

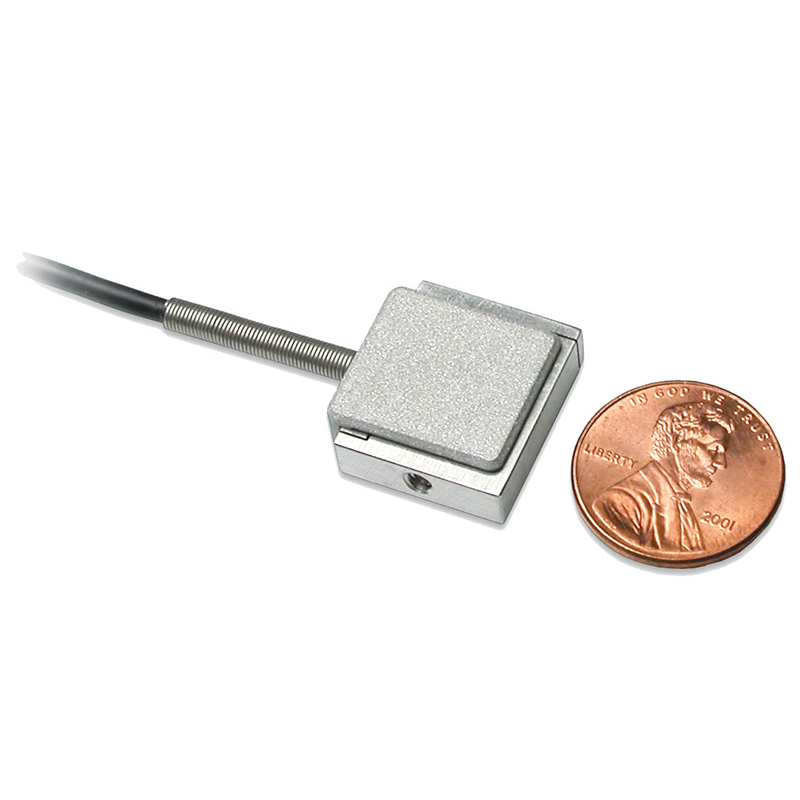

|R04||Miniature S-beam force sensors, tension and compression|

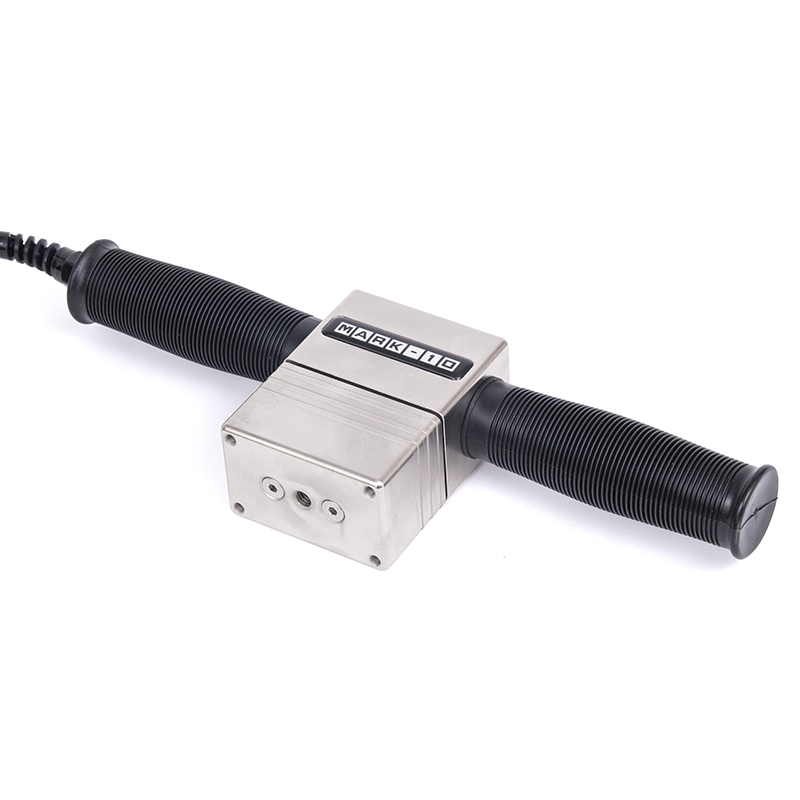

|R05||Fully enclosed smart sensors, push and pull|

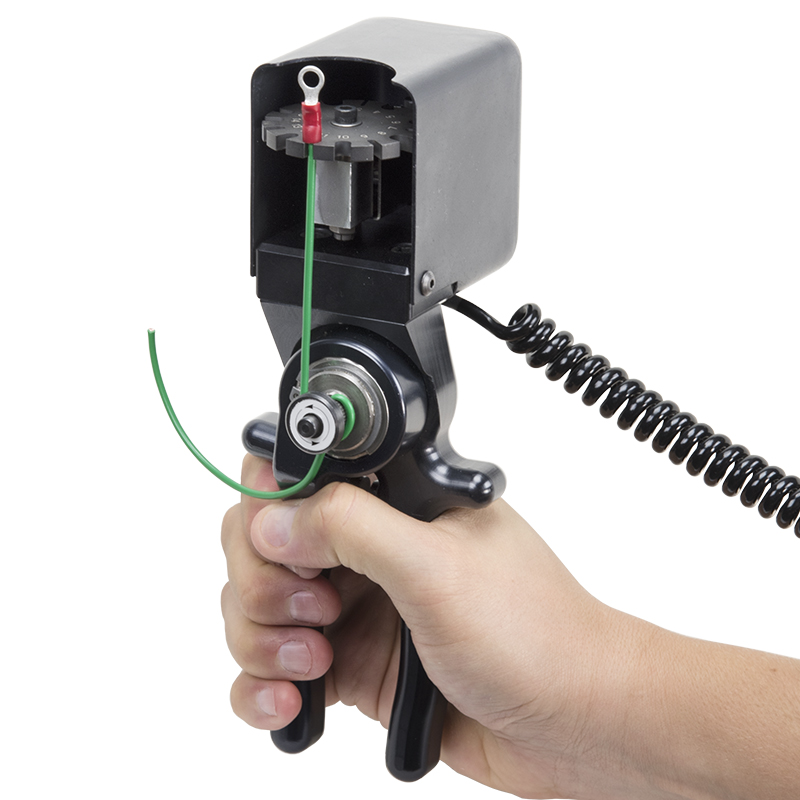

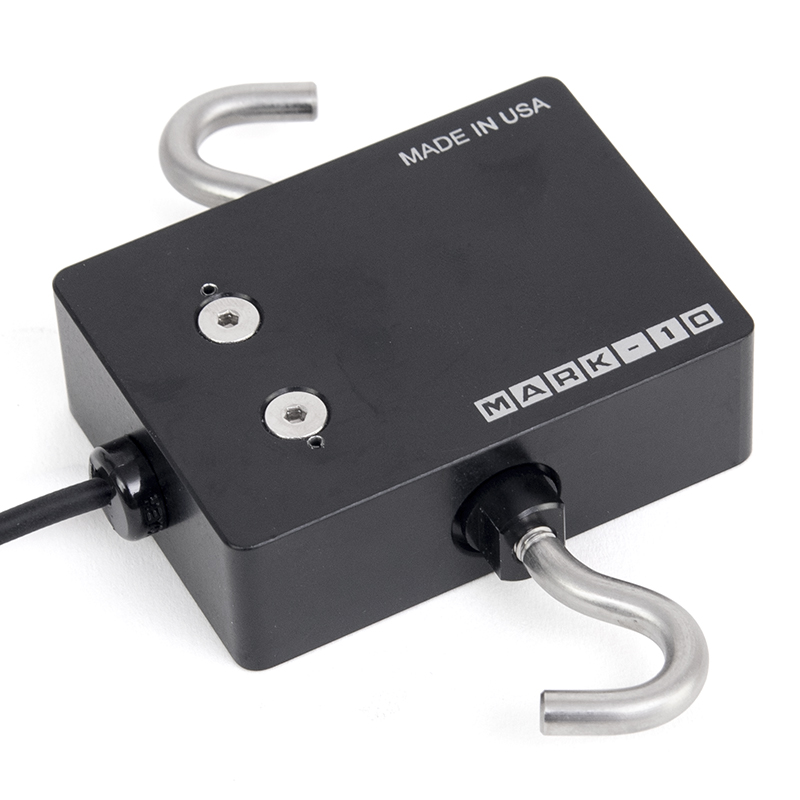

|R06||Wire crimp pull sensor, tension only|

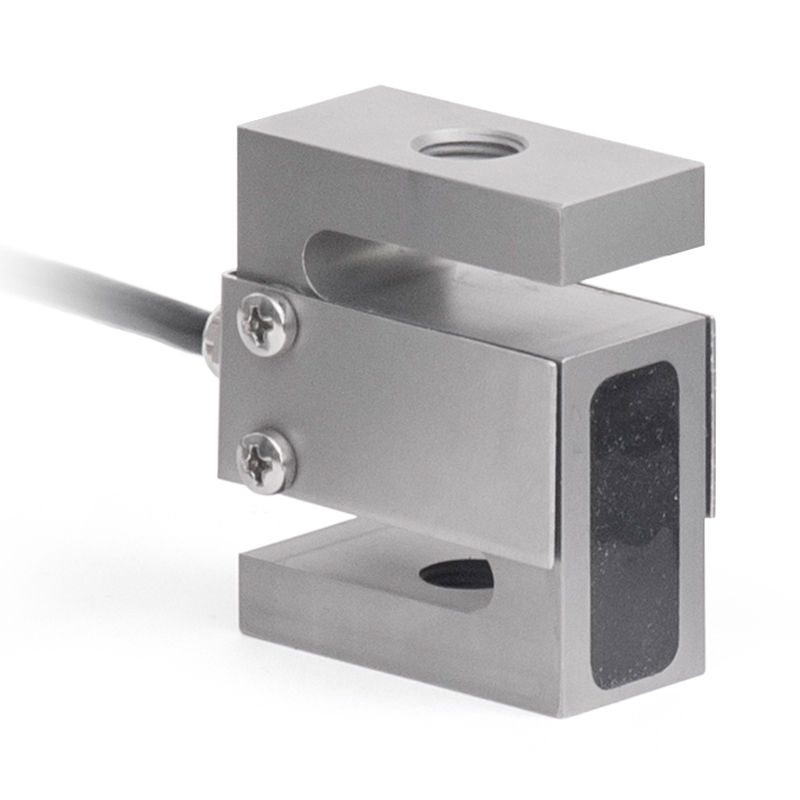

|R07||S-beam force sensors for Series F Advanced Test Frames|

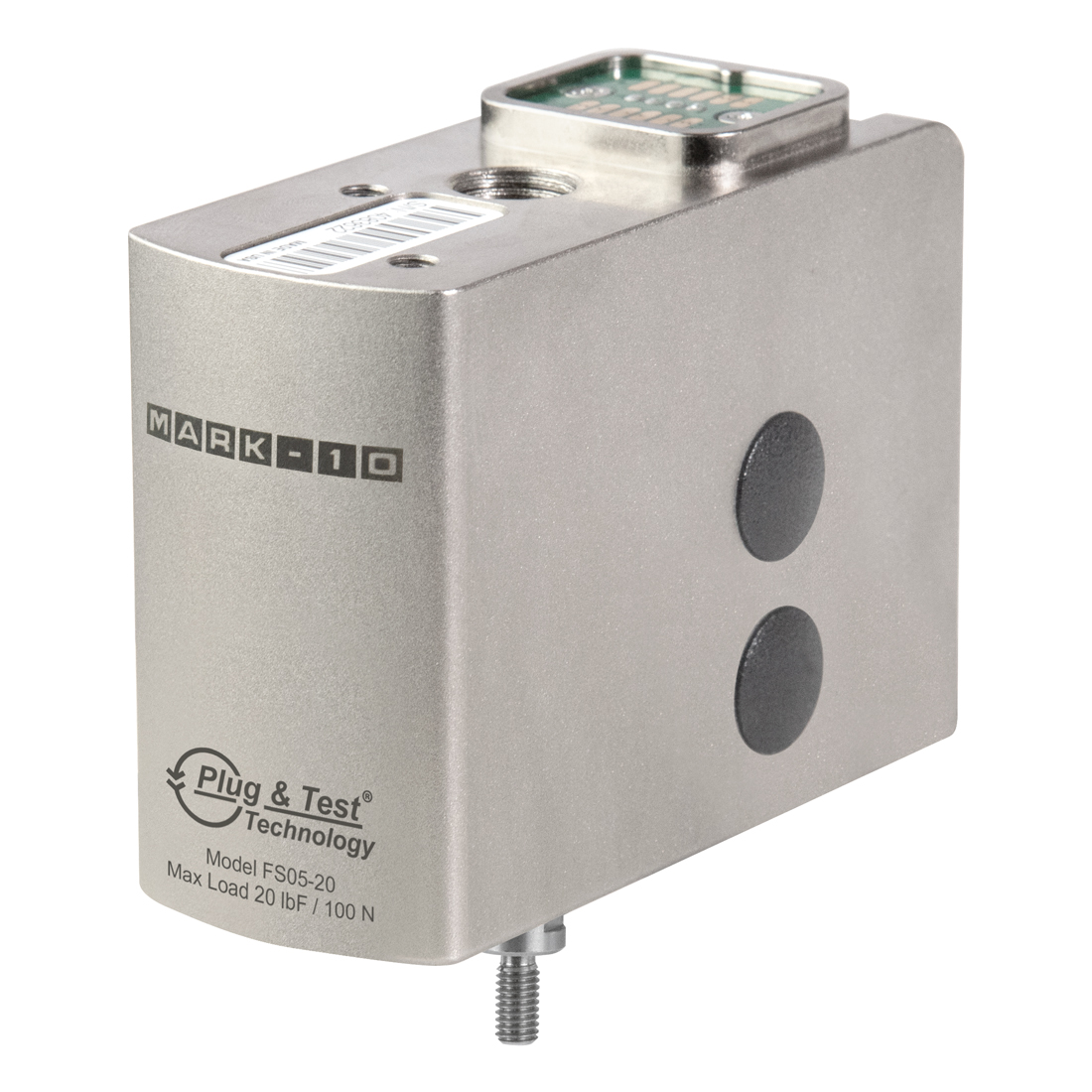

|FS05||Integrated force sensor for Series F Advanced Test Frames|
Plug and Test Torque Sensors

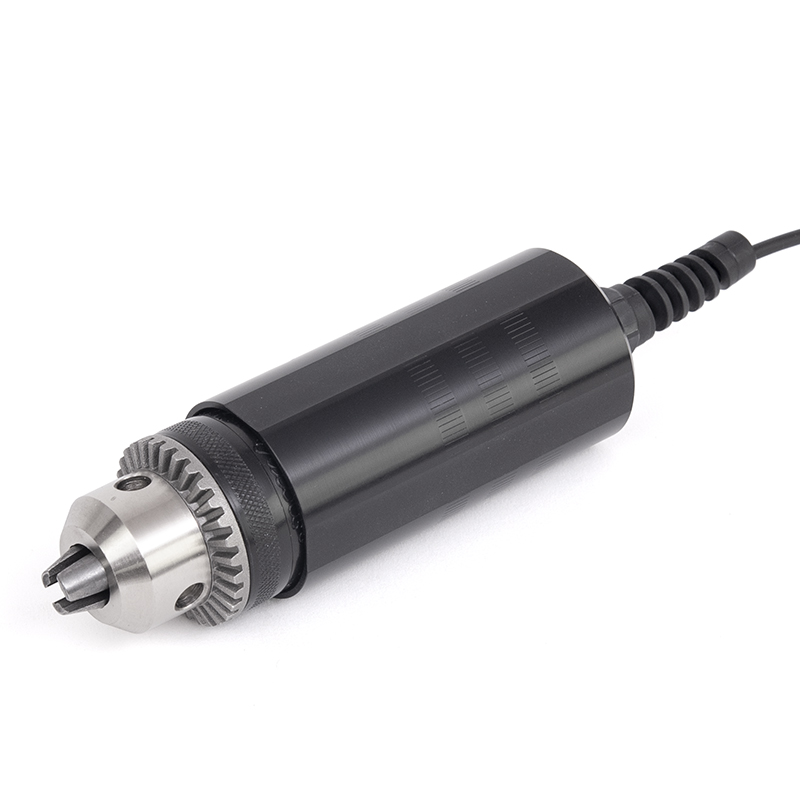

|R50||Universal torque sensors|

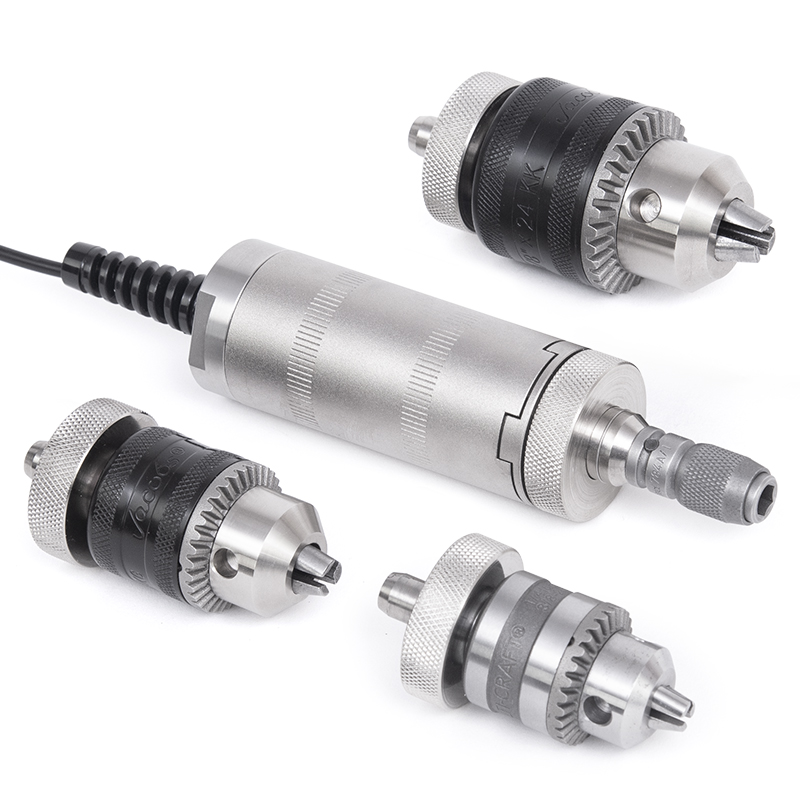

|R51||Universal torque sensors with interchangeable attachments|

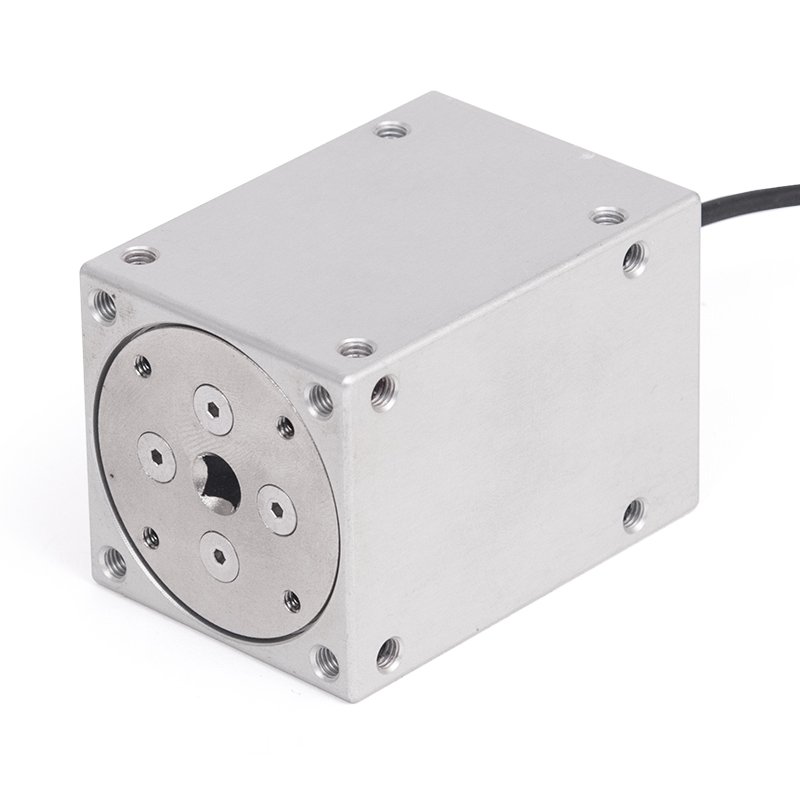

|R52||Tool calibration torque sensors|

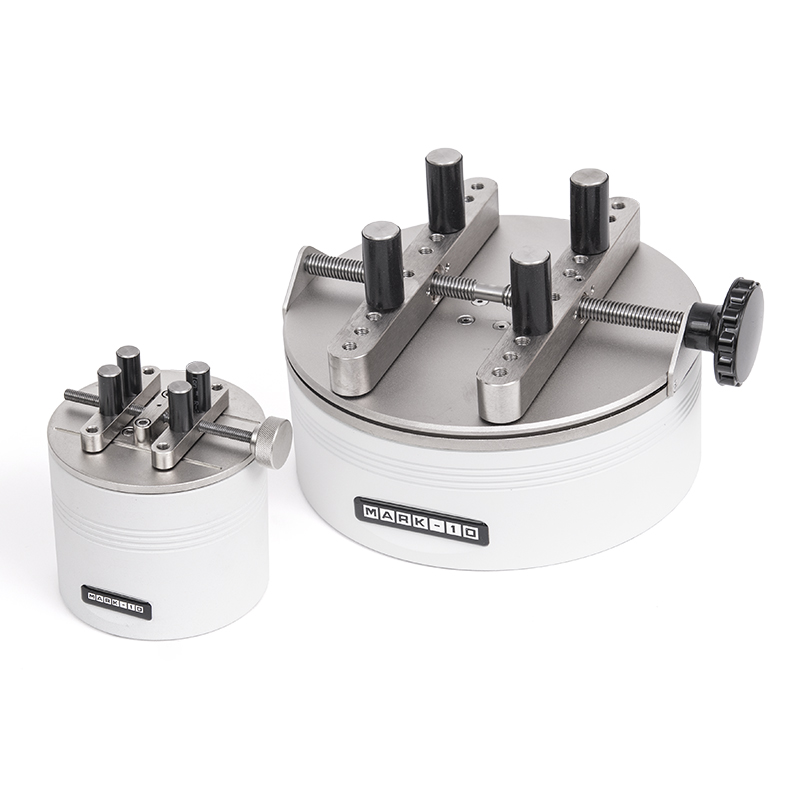

|R53||Closure torque sensors|

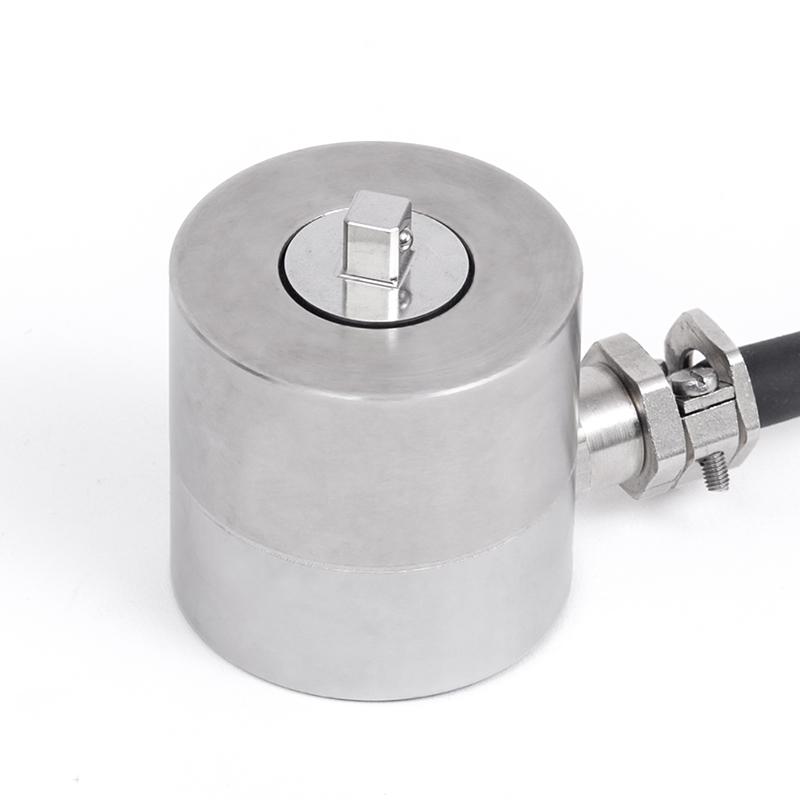

|R55||High capacity torque sensors|
