"KROEPLIN" (Made in Germany) Measurement of grooves and thickness I Range 0-100 mm. & Depth 382 mm. Ball Ø 5 mm
หมวดหมู่ : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of grooves and thickness ,
แบรนด์ : KROEPLIN
Share
C8100- เขาควายวัดนอก แบบดิจิตอล
Brand : KROEPLIN (Made in Germany)
-----------------
Electronic external measuring gauge
Measurement of grooves and thickness
- Measuring range Meb: 0 – 100 mm
- Numerical interval Zw: 0,05 / 0,1 mm
- Measuring depth L max.: 382 mm
Additional information - caliper gauge
| Type | C8100 |
| Display mm / inch | mm + inch |
| Application | External measurement |
| Measuring span Mes | 100 mm |
| Measuring range Meb | 0 – 100 mm |
| Range of indication Azb | 0 – 101 mm |
| Numerical interval Zw | 0,05 / 0,1mm |
| Max. permissible errors G | 0,15 mm |
| Repeatability limit r | 0,1 mm |
| Measuring force F min. | 0,8 N |
| Measuring force F max. | 8 N |

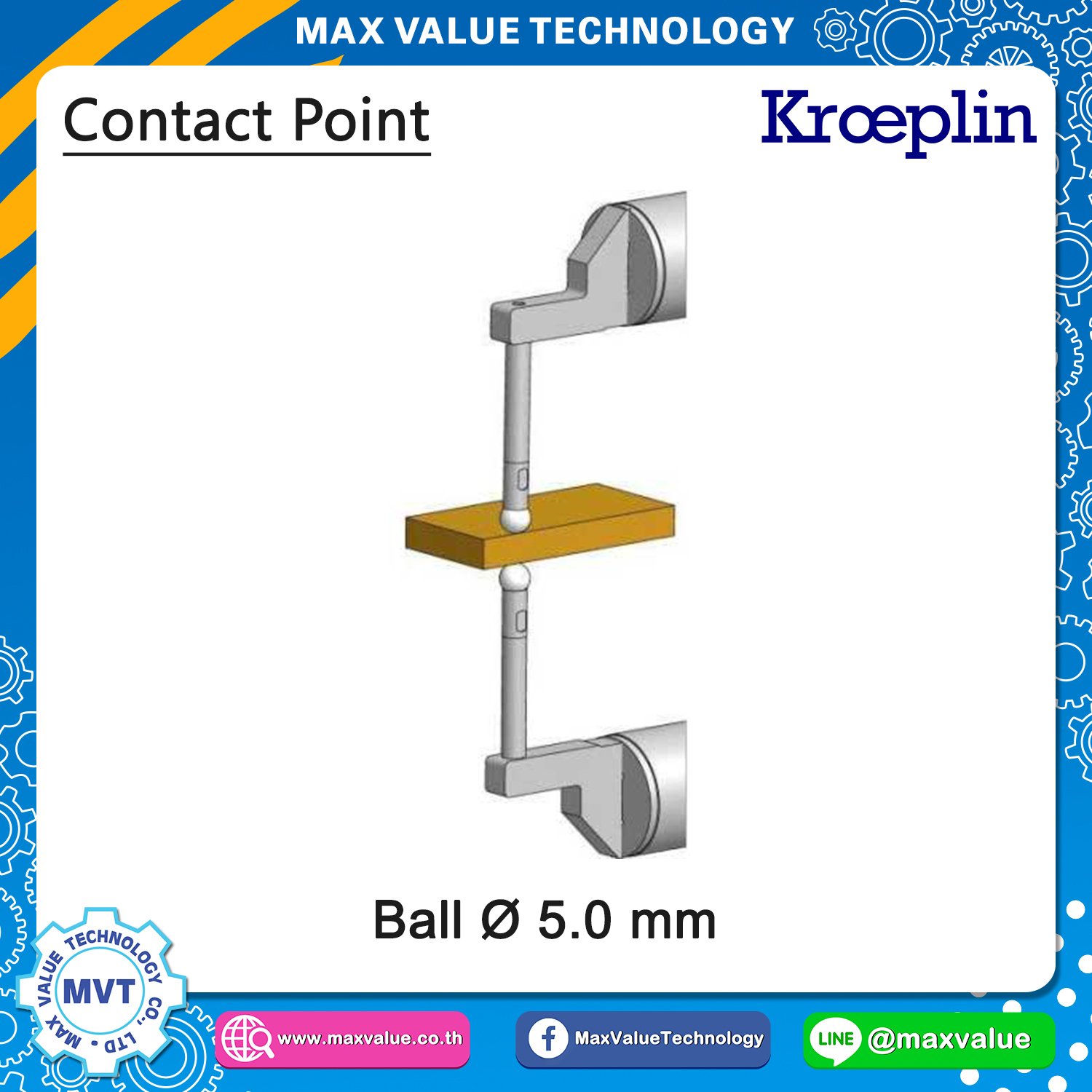

| Type of measuring contact movable | HM-Ball Ø 5 mm |
| Measuring contact movable Hb | 33 mm |
| Type of measuring contact fixed | HM-Ball Ø 5 mm |
| Measuring contact fixed Hf | |
| Measuring depth max. L | 375 mm |
| Weight | 660 g |
| Protection class | IP67 |
