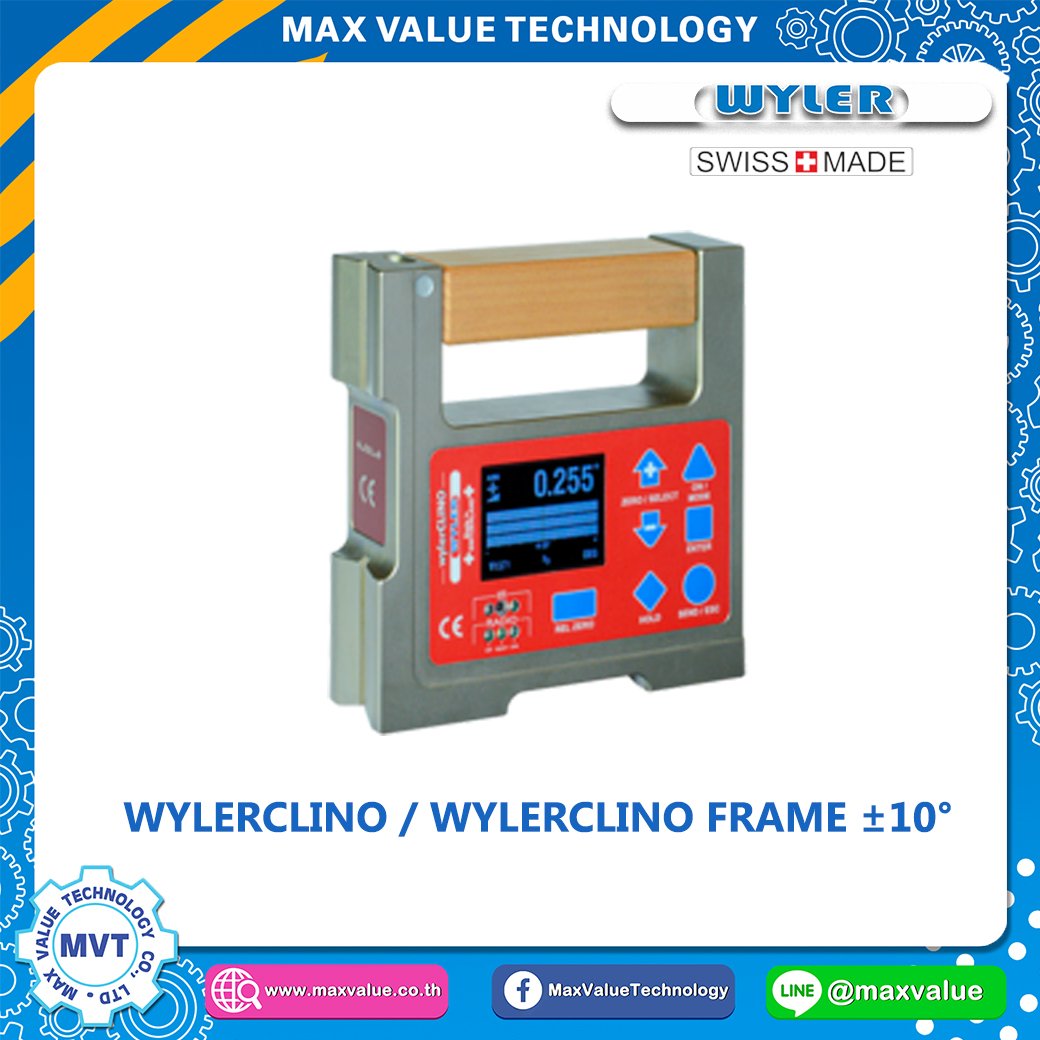

wylerCLINO / wylerCLINO Frame ±10°

คุณสมบัติสินค้า:

"WYLER" wylerCLINO instruments are portable precision measuring instrument for inclinations ±10° (formerly BlueCLINO), equipped with radio data transmission. (Range ±10°, Sensitivity 2 arcsec (0.010 mm/m))

Model

wylerCLINO ±10° wylerCLINO Frame ±10°

Magnetic or Thread holes

Cast

แบรนด์ : WYLER

Share

wylerCLINO / wylerCLINO Frame ±10°
Brand : Wyler (swiss made )
---------------------------------------

wylerCLINO / wylerCLINO Frames instruments are portable precision measuring instrument for inclinations ±10° (formerly BlueCLINO)

Product line wylerCLINO ±10° / wylerCLINO Frame ±10°

            wylerCLINO ±10°Cast iron, scraped



wylerCLINO Frame ±10°Cast iron, scraped


The wylerCLINO product line combines the need of large maeasuring ranges and highest accuracy. wylerCLINO and wylerCLINO Frame with measuring range ±10° in cast iron, prismatic measuring bases scraped.

wylerCLINO and wylerCLINO Frame ...
  • are equipped with radio data transmission
  • have a large and very easy-to-read color display
  • can indicate all current units
  • have internal software to perform simple zero setting with a reversal measurement
  • can be adjusted to local gravity
  • Fulfils the strict CE requirements (immunity against electromagnetic smog)
wylerCLINO and wylerCLINO Frame …
  • offer various display methods such as bar graphs or spirit levels
  • Rugged housing, with prismatic bases made of cast iron, nickel plated
  • Built-in cross vial for easy alignment of the vertical axis avoiding “twist errors”
  • Powered by standard 1.5 V batteries, rechargeable batteries or with mains adapter
  • Magnetic inserts optional

Selection of possible displays


Calibration Certificate
 The wylerCLINO can be delivered with an internationally recognised Calibration Certificate against a surcharge

Technical Specifications wylerCLINO ±10° and wylerCLINO Frame ±10°


--------------------------------------------------------

Dimensional drawings for wylerCLINO Frame ±10°

--------------------------------------------------------

Simple comparison of a left and a right vertical guideway

Application

NEW! wylerCLINO / Frame ±10°



MECHANICAL ENGINEERING / INCLINATION OF A HUGE BEARING RING

Measuring task / Goal:
Checking the inclination at various positions of a huge bearing ring.

 MORE

--------------------------------------------------------

MECHANICAL ENGINEERING / MACHINE TOOLS / ADJUSTMENT ANGLE OF A TOOL

Measuring task / Goal:
Checking the adjustment angle of a tool on a large rotating lathe.

 MORE

--------------------------------------------------------

FORMULA 1 CAR RACING

Measuring task / Goal:
Checking and precise adjustment of the wheel mounting, particularly of the wheel camber. These checks and adjustments are carried out between the different training laps to optimize the values for the actual race.

 MORE

--------------------------------------------------------

MAPPING A GOLF GREEN

Measuring task / Goal:
Mapping of the inclinations on the Green areas of a Golf course.

Some golf courses in England measure the flatness of the „Green“ in a simple way. A special vehicle has been constructed, on which two CLINOTRONIC are mounted in a right angles to each other.

Both are connected to a small printer. The green is checked according to a pre-set pattern and at each measuring point, after a short stop, the inclination angles determined in the two directions are recorded and printed.

 MORE

--------------------------------------------------------

CONTINEOUS CASTING / DIE TAPER

Subject:
Continuous casting is a process where molten metal is continuously feed to a cooled die, which is open on the lower end. For a successful process, chilling of the metal is precisely controlled. The correct taper angle is crucial for a successful process.

Measuring task:
The taper angle shall be precisely measured and adjusted. Precise results shall be possible in the workshop, while preparing dies, as well as on the casting line where severe conditions are common. Weight should allow easy handling by 1 person.

 MORE

--------------------------------------------------------

RADIO ONCOLOG / CALIBRATION ON LINAC MECHANICS

Subject:
In order to keep service downtime of the Linac as short as possible, en efficient and accurate way to calibrate Gantry settings, collimator angle and to adjust Couch Roll is needed.

Measuring task / Goal:
The small dimensions (100x75x30 mm) and the light weight (485 Gramm) together with the 4 precise measuring bases situated around the periphery, make the CLINOTRONIC Plus  the ideal instrument for the calibration task.

 MORE
--------------------------------------------------------

MEASURING OF THE INCLINATION OF THE ROAD SURFACE

Subject:
Roads are cambered in the middle to ensure a proper drain of the rainwater. The inclination of this camber must be within certain tolerances to guarantee a safe driving.

Measuring task:
The inclination of the road must be measured regularly during the placement of the road surface to ensure that the inclination remains within the tolerances. The measurements must be made by road workers at various temperatures (summer and hot tar) and even at insufficient light conditions (evening).

 MORE

--------------------------------------------------------

ALIGNMENT OF SOLAR PANELS

Subject:
Solar panels must be perfectly adjusted to the sun to ensure best possible performance.

Measuring task:
The inclination of each single solar panel must be verified periodically. A measuring range of up to ±60° is required.

 MORE



wylerLEVEL Frame - Introduction of our product strategy
--------------------------------------------------------


--------------------------------------------------------

Quick calibration of the inclination measuring instrument BlueCLINO








--------------------------------------------------------

Data sheet wylerCLINO :


IMPORTANT PRODUCT INFORMATION for the Measuring Instruments of the BlueSYSTEM-Family
... with Radio Equipment OBS433i

IMPORTANT PRODUCT INFORMATION for the Measuring Instruments of the BlueSYSTEM-Family
... with Radio Equipment OBS421i
