THV - Calibration bench(copy)


THV - Calibration bench for certification of equipment such as ring gauges and thread plug gauges. Its small dimensions and highly precise measuring system make it the ideal instrument for a mobile calibration station.

แบรนด์ : TRIMOS



Labconcept Universal calibration benches

  Brand TRIMOS (swiss made)


Horizontal Calibration Instruments for Laboratory

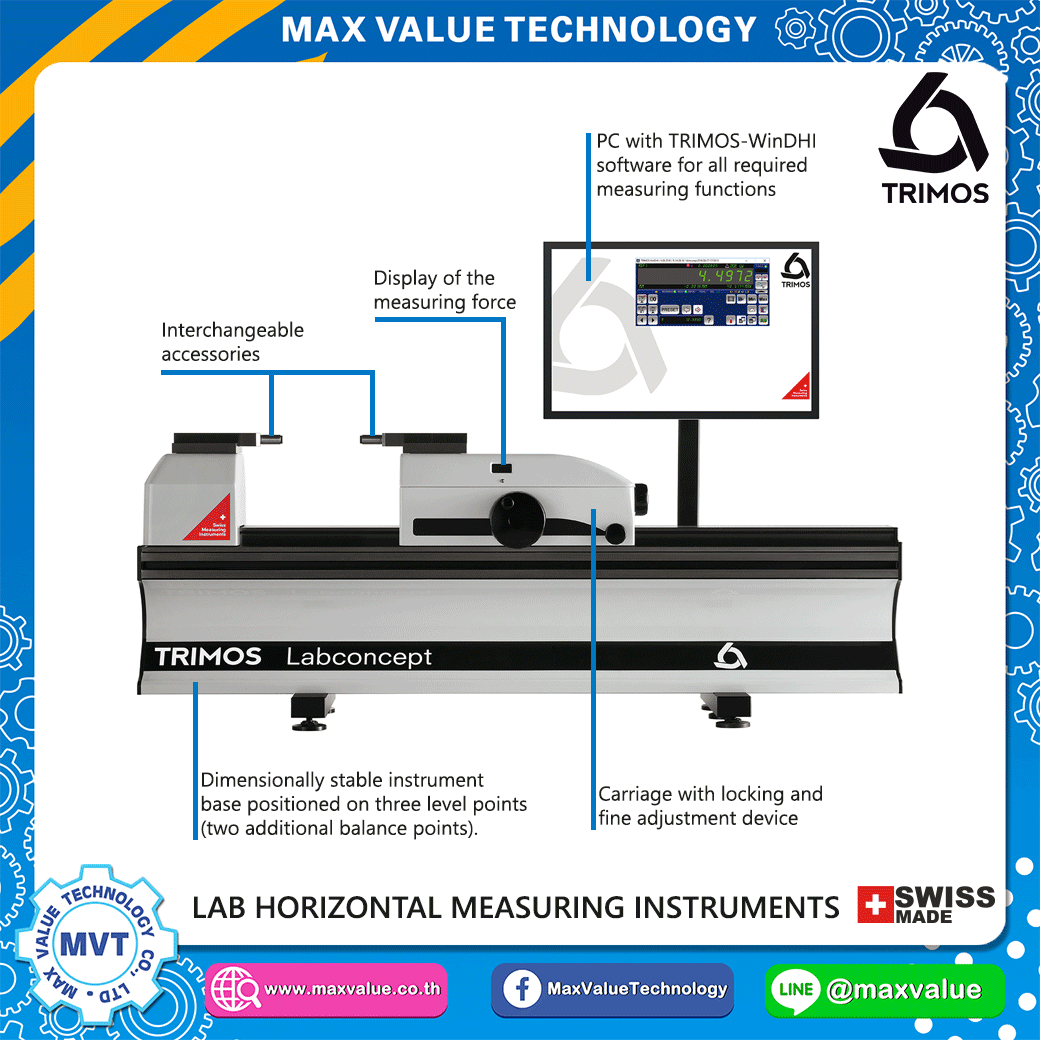

The Labconcept are high precision calibration systems that meet the most sophisticated requirements.

The up-to-date, well designed modular concept enables extremely secure functioning, facilitates the manipulation and therefore increases the productivity in the measuring laboratory. Simplicity and high accuracy have been associated.

This new concept, integrating a computer and a touch screen as well as the appropriate Trimos-WinDHI software with all necessary measuring functions guarantees the best results. A temperature compensation system as well as a gauge management system can be installed to enhance the system performance.

Instruments with a measuring range from 500 to 2000 mm are available, all made in one single piece. All measuring ranges being direct, it means that the whole measuring range is available without adjustment or intermediate re-calibration.

  • Meets the requirements of all ISO 9000
  • PC with exclusive software WinDHI
  • High precision measuring system
  • Dimensionally stable instrument base
  • Adjustable measuring force (0-12 N)
  • Large range of accessories
  • Direct measurement over the whole measuring range

Technical Specifications

Measuring range*550 mm (21 in)1050 mm (41 in)1550 mm (61 in)2050 mm (80 in)
Max. permissible errors0.3 + L (mm)/1500 µm
Repeatability (2s)0.1 µm
Resolutions 0.01 - 0.00001 mm (0.0001 - 0.000001 in)
Max. displacement speed1500 mm/s
Measuring force0 - 12 N
Operational temperature10 - 40 °C
Temperature of storage-10 - 40 °C
Relative humidity20 - 80 %
Weight94 kg.123 kg.152 kg.181 kg.
*The measuring range depends on the anvils used .
