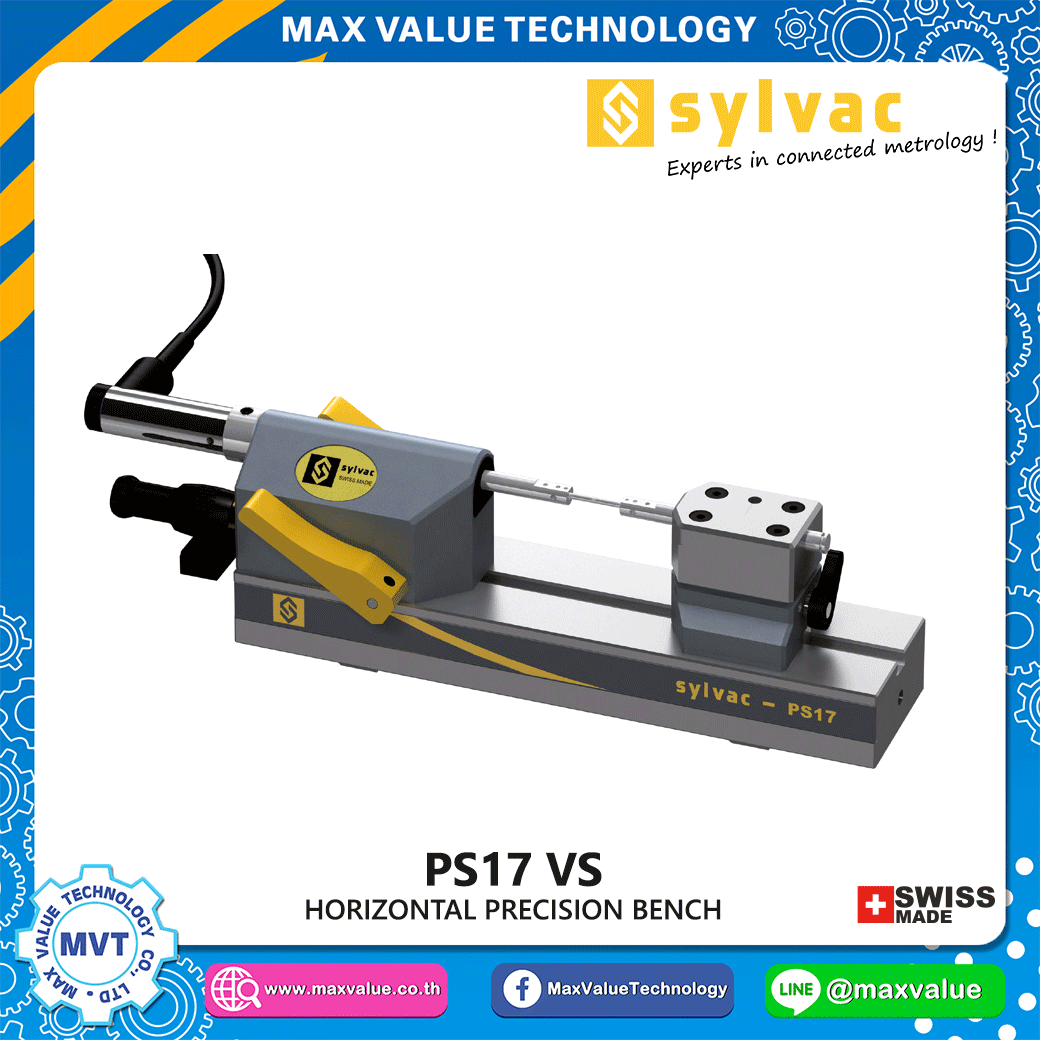

PS17 VS Bench table
คุณสมบัติสินค้า:
Measuring bench with great flexibility of use.
หมวดหมู่ : Metrology Product , Horizontal Measurement ,
แบรนด์ : SYLVAC
Share
Brand : SYLVAC (swiss made )
---------------------------------------
DESCRIPTION
- Horizontal precision bench for measuring small external dimensions similar to the PS15 bench, but with a tailstock.
- Can be equipped with either a digital digital indicator or a Sylvac measuring probe.
- Robust cast iron construction.
- 2 ergonomic levers for moving the movable axis with ball-bearing guide.
- Equipped with a micrometric screw to control the recoil of the mobile axis.
- Compatible with Sylvac Ø 1.5 mm and Cary type anvils.
- Supplied with hard metal measuring anvils Ø 1.5 mm.
- Adjustable measuring force 0.2-1.0 N.
- Measuring capacity 37 mm, measuring range 10 mm.
Technical Specifications
| 908-1242 | |
| Type | VS |
| Measuring system | at choice |
| Tailstock adjustable in Z +1.75 mm | • |
| Measurement capacity C mm | 37 |
| Measuring scale mm | 10 |
| Adjustable measuring force N | 0.2 - 1.0 |
| Weight kg | 1.4 |
| Clamping anvils Ø 1.5 mm | • |
| Compatibility with Cary | • |
| Micrometer screw | • |
