SDR

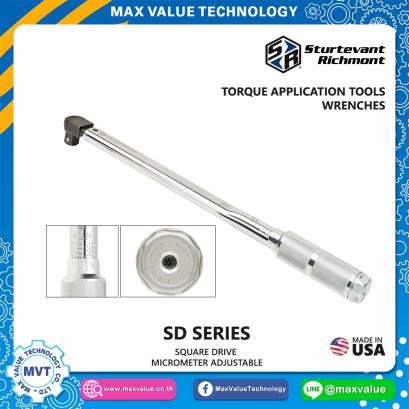

Square Drive Ratchet Micrometer Adjustable
Brand : SR Torque (USA made)
---------------------------------------
- Fastest torque adjustment across the scale via rotating grip.
- Locking tail piece prevents inadvertent target torque change.
- Ball bearing rockover assembly assures smooth operation, enhances repeatability and increases the cycle life of the wrench.
- At set torque value a strong audible and tactile impulse is emitted.
- Includes storage case.
- Ratchet design is very strong and durable.
- Accuracy of +/- 4% Indicated Value (from 20% to 100% of capacity) meets or exceeds ASME B107.300 - 2010, ISO 6789, and AS 28431.
SDR Fixed Ratchet Head Series
| Part No. | Model | Torque Capacity | Steps of Graduation | Square Drive (in.) | A (in.) | B (in.) | C (in.) | D (in.) | Weight (lbs) |
| 869749 | 2 SDR 50 I MG | 10 in lb-50 in lb | 1 in lb | 1/4 | 11 15⁄64 | 31⁄32 | 51⁄64 | 15⁄16 | 1.0 |
| 869750 | 2 SDR 150 I MG | 30 in lb-150 in lb | 2 in lb | 1/4 | 11 39⁄64 | 31⁄32 | 51⁄64 | 15⁄16 | 1.0 |
| 869781 | 2 SDR 200 I MG | 40 in lb-200 in lb | 2 in lb | 1/4 | 10 23⁄32 | 31⁄32 | 51⁄64 | 15⁄16 | 1.0 |
| 869751 | 3 SDR 150 I MG | 30 in lb-150 in lb | 2 in lb | 3/8 | 11 19⁄32 | 1 11⁄32 | 1 1⁄16 | 15⁄16 | 1.1 |
| 869761 | 3 SDR 200 I MG | 40 in lb-200 in lb | 2 in lb | 3/8 | 11 23⁄32 | 1 11⁄32 | 1 1⁄16 | 15⁄16 | 1.1 |
| 869748 | 3 SDR 600 I MG | 100 in lb-600 in lb | 5 in lb | 3/8 | 15 11⁄32 | 1 3⁄8 | 1 1⁄16 | 15⁄16 | 1.5 |
| 869752 | 3 SDR 750 I MG | 150 in lb-750 in lb | 5 in lb | 3/8 | 15 5⁄32 | 1 3⁄8 | 1 1⁄16 | 15⁄16 | 1.5 |
| 869747 | 3 SDR 1200 I MG | 200 in lb-1200 in lb | 10 in lb | 3/8 | 18 25⁄64 | 1 3⁄8 | 1 1⁄16 | 15⁄16 | 1.5 |
| 869755 | 4 SDR 1800 I MG | 300 in lb-1800 in lb | 10 in lb | 1/2 | 18 45⁄64 | 1 61⁄64 | 1 27⁄64 | 15⁄16 | 2.0 |
| 869756 | 3 SDR 75 MG | 15 ft lb-75 ft lb | .5 ft lb | 3/8 | 14 31⁄32 | 1 3⁄8 | 1 1⁄16 | 15⁄16 | 1.5 |
| 869754 | 3 SDR 100 MG | 20 ft lb-100 ft lb | 1 ft lb | 3/8 | 18 7⁄16 | 1 3⁄8 | 1 1⁄32 | 15⁄16 | 1.5 |
| 869757 | 4 SDR 150 MG | 30 ft lb-150 ft lb | 1 ft lb | 1/2 | 19 3⁄16 | 1 61⁄64 | 1 27⁄64 | 15⁄1 | 2.0 |
| 869758 | 4 SDR 250 MG | 50 ft lb-250 ft lb | 2 ft lb | 1/2 | 25 5⁄32 | 1 61⁄64 | 1 27⁄64 | 1 | 3.5 |
| 810760 | 6 SDR 300 | 50 ft lb-300 ft lb | 2.5 ft lb | 3/4 | 28 25⁄64 | 2 11⁄16 | 1 63⁄64 | 2 | 7.8 |
| 810597* | 6 SDR 600 | 100 ft lbs-600 ft. lbs. | 5 ft lb | 3/4 | 38 3⁄4 | 2 11⁄16 | 1 63⁄64 | 2 | 10.5 |
| 810525** | 6 SDR 700 | 100-700 ft. lbs. | 5 ft lb | 3/4 | 39 1⁄8 | 2 11⁄16 | 1 63⁄64 | 2 | 16.5 |
| Part No. | Model | Torque Capacity | Steps of Graduation | Square Drive (in.) | A (cm) | B (cm) | C (cm) | D (cm) | Weight (kg) |
| 869774 | 2 SDR 6 Nm MG | 1 Nm-6 Nm | 0.1 Nm | 1/4 | 28.5 | 2.4 | 2.0 | 3.1 | 0.5 |
| 869775 | 2 SDR 20 Nm MG | 4 Nm-20 Nm | 0.2 Nm | 1/4 | 28.5 | 2.4 | 2.0 | 3.1 | 0.5 |
| 869776 | 3 SDR 20 Nm MG | 4 Nm-20 Nm | 0.2 Nm | 3/8 | 30.4 | 2.4 | 2.0 | 3.1 | 0.5 |
| 869782 | 3 SDR 50 Nm MG | 10 Nm- 50 Nm | 0.5 Nm | 3/8 | 39.4 | 3.5 | 2.7 | 3.1 | 0.7 |
| 869777 | 3 SDR 100 Nm MG | 20 Nm-100 Nm | 0.5 Nm | 3/8 | 39.1 | 3.5 | 2.7 | 3.1 | 0.7 |
| 869797 | 4 SDR 100 Nm MG | 20 Nm-100 Nm | 0.5 Nm | 1/2 | 39.1 | 3.5 | 2.7 | 3.1 | 0.7 |
| 869783 | 3 SDR 140 Nm MG | 30 Nm-140 Nm | 1 Nm | 3/8 | 47.0 | 3.5 | 2.7 | 3.1 | 0.7 |
| 869798 | 4 SDR 140 Nm MG | 30 Nm-140 Nm | 1 Nm | 1/2 (3/8 body) | 46.4 | 3.5 | 3.5 | 3.1 | 0.7 |
| 869778 | 4 SDR 200 Nm MG | 40 Nm-200 Nm | 1 Nm | 1/2 | 49.5 | 5.0 | 3.6 | 3.1 | 0.9 |
| 869779 | 4 SDR 300 Nm MG | 60 Nm-300 Nm | 2 Nm | 1/2 | 63.4 | 5.0 | 3.6 | 3.1 | 1.6 |
| 869789 | 6 SDR 300 Nm MG | 60 Nm-300 Nm | 2 Nm | 3/4 | 63.4 | 5.0 | 3.6 | 3.1 | 1.6 |
| 810598* | 6 SDR 800 Nm | 150 Nm-800 Nm | 5 Nm | 3/4 | 97.5 | 6.8 | 5.0 | 3.8 | 4.8 |
