The All-purpose 3D scanner that obtains high precision of geometric mapping, which is crucial in reverse engineering, as well as enables the possibility of realistic scanning of color texture that is necessary in digitalization.
SMARTTECH3D ON guarantees:
• Stereoscopic measurement using two detectors
• Aluminum and carbon fiber housing that is resistant to temperature changes
Stereoscopic measurement system
Top of the line detectors that perform stereoscopic measurements allow for the elimination of measurement noise and the use of bi-directional projection of fringes guarantees a more precise representation of the sharp edges of the measured objects.
High-accuracy 3D scanning
The SMARTTECH3D ON is a factory-calibrated metrological tool, certified by the manufacturer according to the VDI/VDE 2634 German guidelines, and its measurement accuracy can be additionally confirmed by a certificate of an independent accredited metrology laboratory.
Detailed reproduction of fine details
The resolution of the new 3D scanner allows for increasing the efficiency of scanning objects with a high degree of complexity as well as fully automating the entire process.
The software connected with the 3D scanner allows the user to immediately start a comprehensive process of digitizing the chosen objects. SMARTTECH3Dmeasure guides the user through 3D scanning and data processing all the way up to a closed model ready for 3D printing or a final control report in PDF format. Thanks to unique data management algorithms, our software ensures smooth working conditions even with massive clouds of points (over 300 million) on standard laptops. The built-in function of adjusting the projection intensity and other measurement parameters makes it possible to scan objects with a glossy or dark surface.

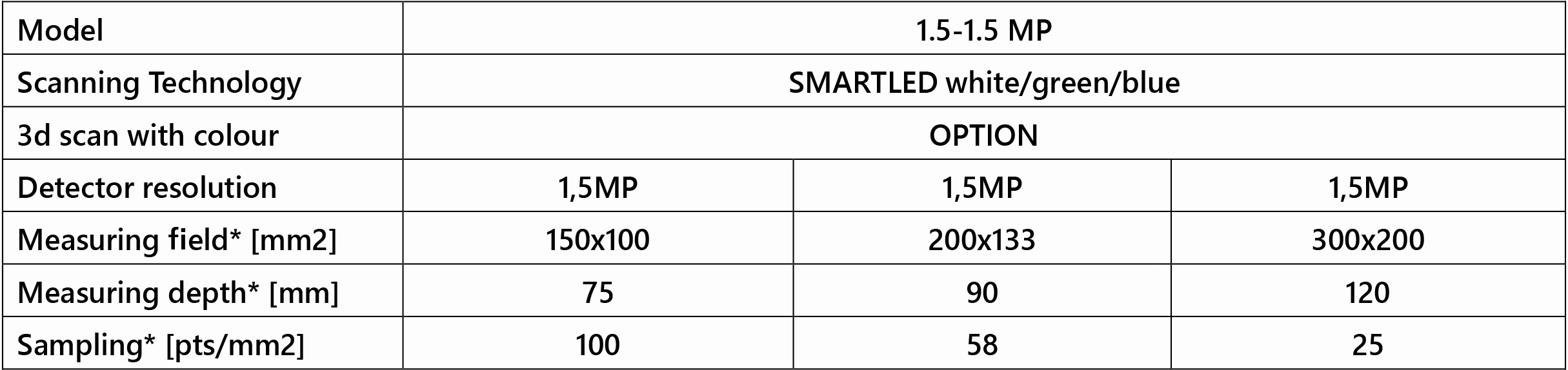

Technical Data
Download : MODEL ON
