Ultra-light, large linear ruler with integrated Bluetooth® system
Frame made of special aluminium profile reinforced with 4 stainless steel guide rods with fixing holes
New XXL display unit with digits 20 mm high
Three buttons, including the central button with selectable favourite function
Supplied with a drive bar that can be positioned at the top or bottom of the display.
Additional data output Proximity

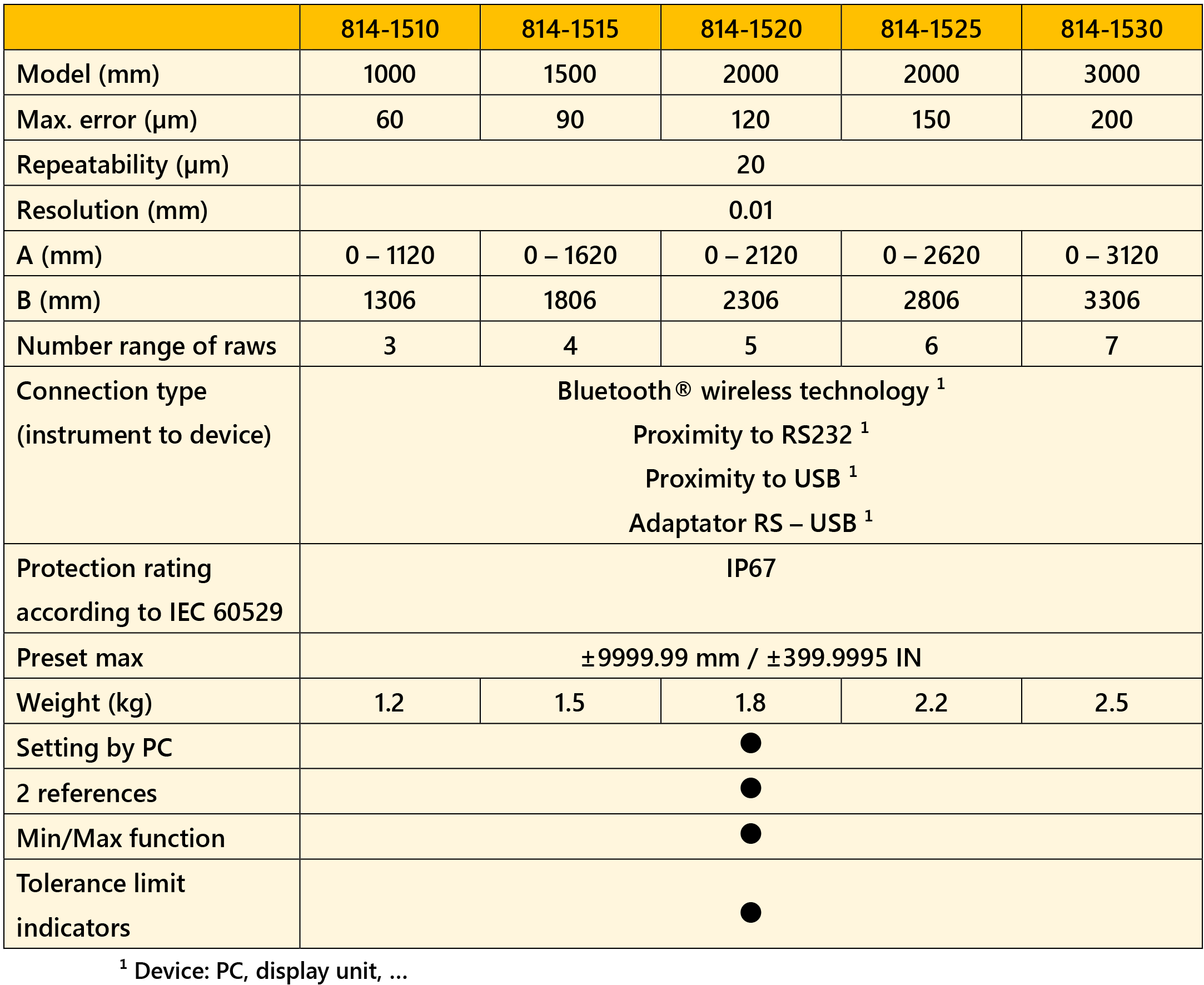

Measuring range 1000 and 3000 mm
On request, several rulers can be joined together to increase the measuring range.
Protection class IP67
FEATURES
Solution for linear measurement: Designed to equip machine tables and special linear measurement systems, The ruler is fixed on a table, and the unit displays the exact linear distance traveled between point A and point B.
Seamless Data Aquisition: Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.
Built to last: Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 rulers are built to withstand the demands of rigorous use while maintaining stability and accuracy.
User-Friendly Design: The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light depth gauge becomes effortless.
Tailored precision: the ruler comes with a versatile drive bar that can be positioned either at the top or bottom of the display, accommodating your specific needs. With an impressive measuring range of 1000mm or 3000mm, it caters to a wide range of applications. Need an extended measuring range? Simply connect multiple rulers together upon request.
