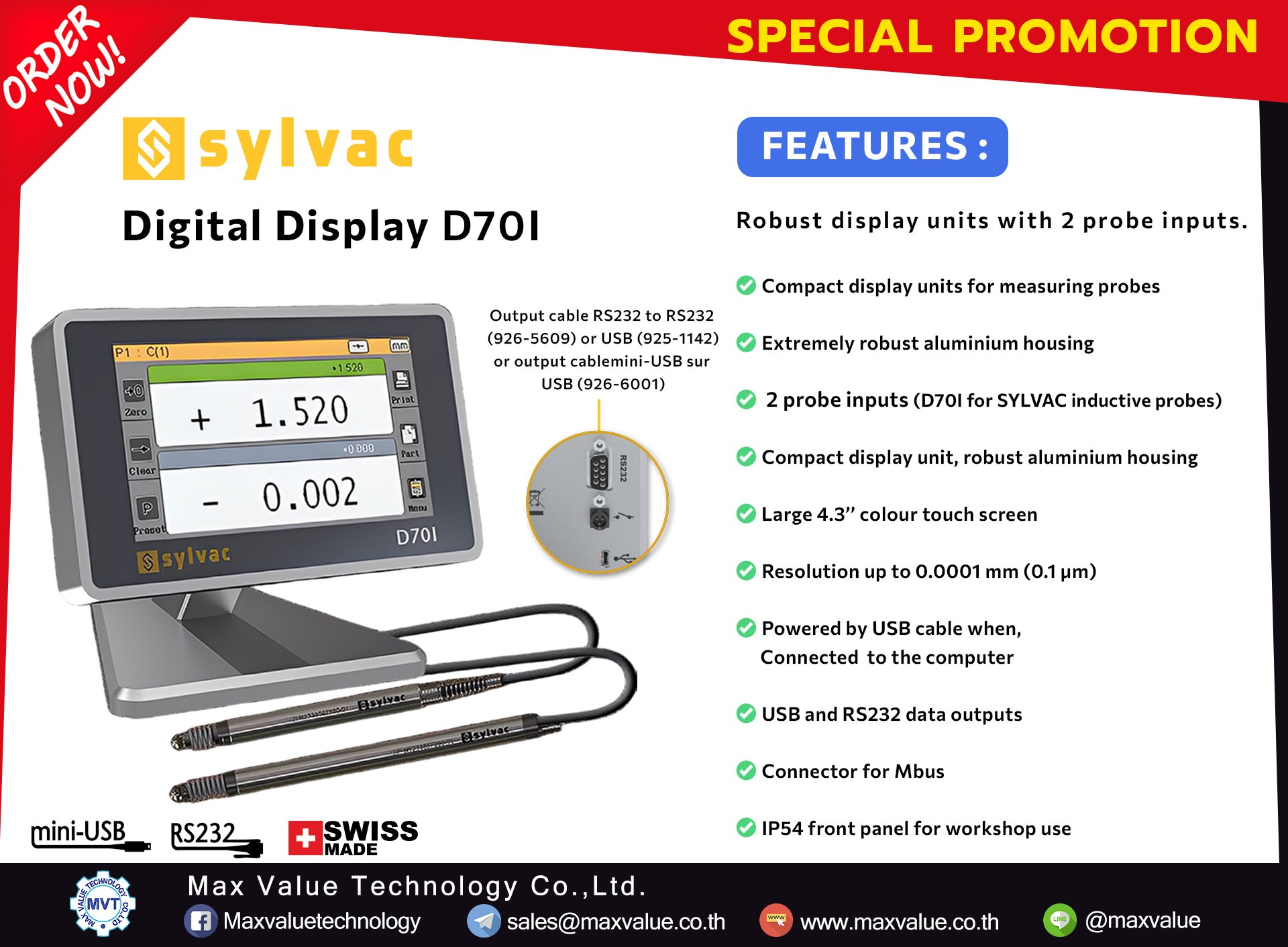

DESCRIPTION- Compact display units for measuring probes
- Extremely robust aluminium housing
- Available with 2 probe inputs :
- D70I = for SYLVAC inductive probes

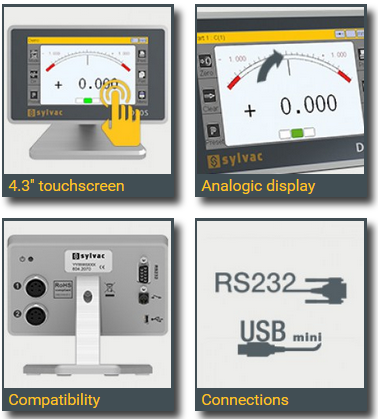

- Large 4.3’’ colour touch screen with intuitive functions
- Display in different modes (possibility to display the 2 values simultaneously)
- Resolution up to 0.0001 mm (0.1 μm)
- Extensive choice of functions including MIN/MAX/DELTA and channel combinations
- Connector for optional pedal 904-4102 (D70I)
- Powered by USB cable, the unit is detected as an «external keyboard» when connected to the computer, allowing for easy data transfer.
- USB and RS232 data outputs
- Connector for Mbus
- IP54 liquid-proof front panel for workshop use
FEATURES- Intuitive Operation: Our touch screen display units offer plug and play ease of use, requiring no additional drivers or software installation, making it hassle-free to connect and start measuring.
- Versatile Modularity for Various Probe Types: Choose from three versions – D70I for Sylvac inductive probes (compatible with Tesa and Mahr probes)
- Clear Display Options: Analogic, tolerance limit, 2 values simultaneously, for a clear and easy-to-read representation of measurement values.
- High Resolution for Precise Readings: Experience exceptional resolution, up to 0.00001 mm (0.01 µm) oensuring accurate and detailed measurement readings.
- Effortless Data Transfer and Compatibility: Seamlessly transfer data via USB or RS232 outputs, with compatibility with Excel and SPC for easy integration into your workflow.
- Robust and Workshop-Ready Design: Designed with an extremely robust aluminum housing and IP65 liquid-proof front panel, our units withstand workshop conditions for reliable performance.
