1350 Digital Torque and Angle Torque Driver

1350 Digital Torque and Angle Torque Driver

1350 Digital Torque and Angle Torque Driver

The 1350 Series TD Digital Torque and Angle Torque Drivers bring a new level of torque control and accuracy to your low torque applications. Here is a quick list of features that help make your low torque applications error-free

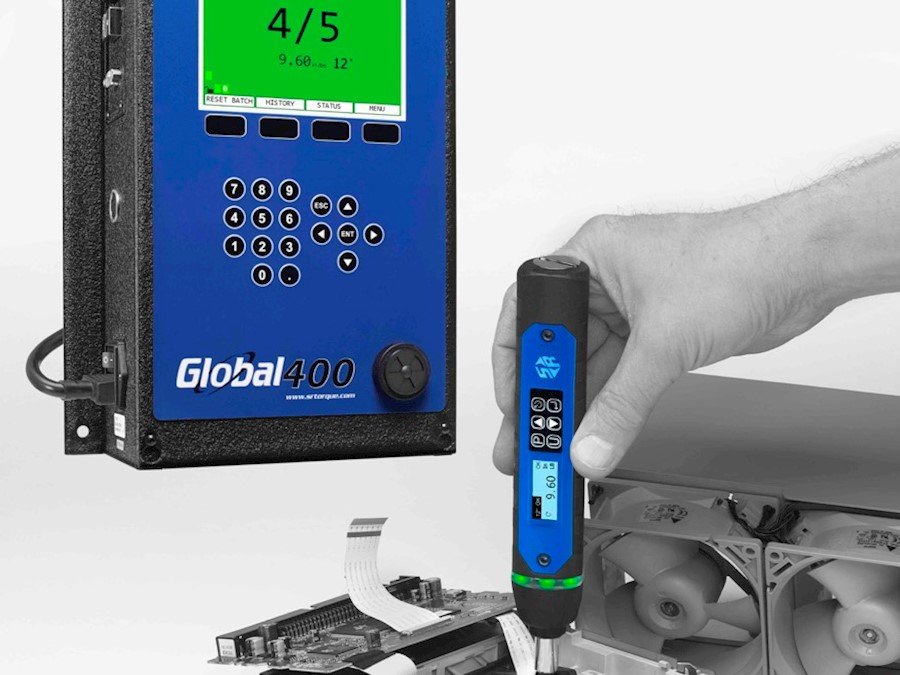

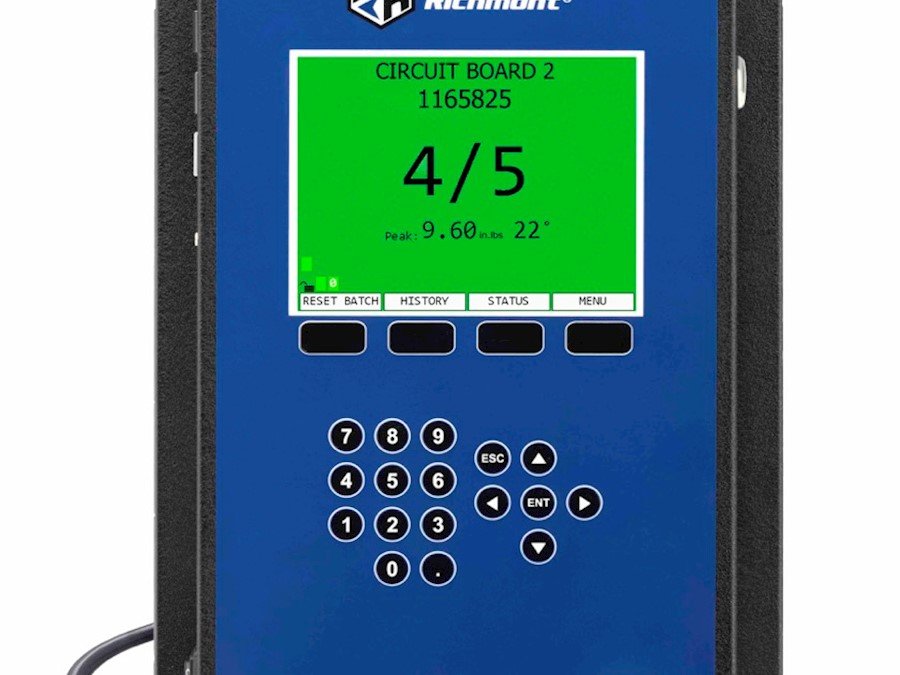

  • The 1350 Series TD is compatible with the Global 400 and Global 400mp controllers.
  • Comes in two torque capacities:
  • Meets/exceeds ASME B107.300-2010 and ISO 6789
  • Bi-directional +/- 2% Indicated Value from 5% to 100% of tool capacity.
  • The 80 inch-pound driver range is 4 to 80 inch-pounds.
  • The 100 inch-ounce driver range is 5 to 100 inch-ounces.
  • All torque and angle settings are set using the Global 400 or Global 400mp. Error proofing feature: parameters cannot be set using the buttons on the torque screwdriver. This prevents any inadvertent P-Set changes and protects your assembly process integrity.
  • You can pair this tool with multiple P-Sets at different torque or torque and angle values because it is a digital tool. This can be used to replace multiple preset tools.
  • TAM function (Torque and Angle Monitoring) provides you with "double hit" protection. If a fastener reaches torque without the required degrees of rotation the fastener is rejected as non-compliant.
  • Torque and angle functionality can also alert the operator if a gasket or washer is missing because it shows changing joint conditions.
  • The display backlight is visible when torque is applied. Displays the torque and angle value on the digital display on the screwdriver.
  • Visible from any angle, the light band on the driver turns yellow, then green, the driver beeps, and the body vibrates when target torque is achieved.
  •  The female hexagon version, as well as the male square drive version, gives you the flexibility to meet all of your torque driver application needs.
  •  ESD Compliant when the grounding strap is properly worn.
  • XBee radio 2.4 GHz - 12 broadcast channels to optimize radio connectivity.

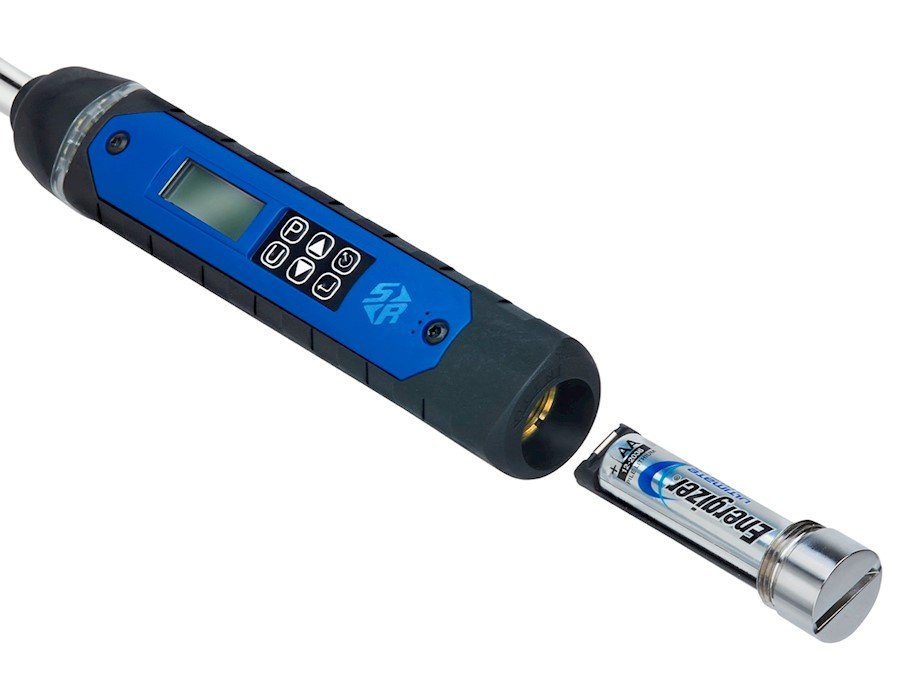

  • Powered by 1 AA NiMH rechargeable battery. The TD ships with two NiMH rechargeable batteries.
  • Chargers sold separately.

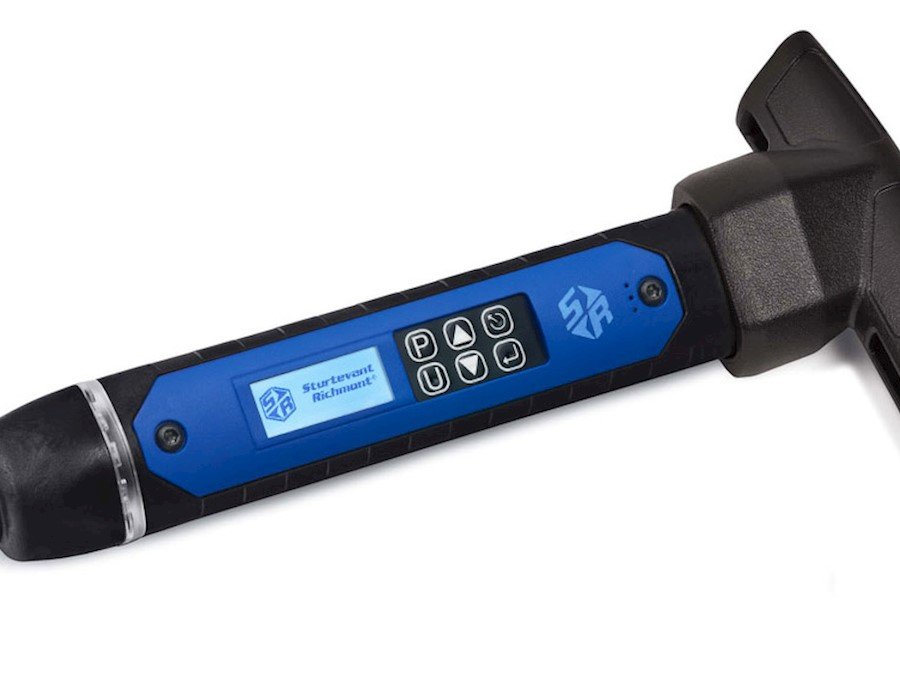

  • Recommended for the 10770 and the 10771: best use with the L-Grip handle to assist in effortlessly reaching the 80 inch-pound capacity. DO NOT use the L-Grip with the 100 inch-ounce model. You will over-torque the fastener.

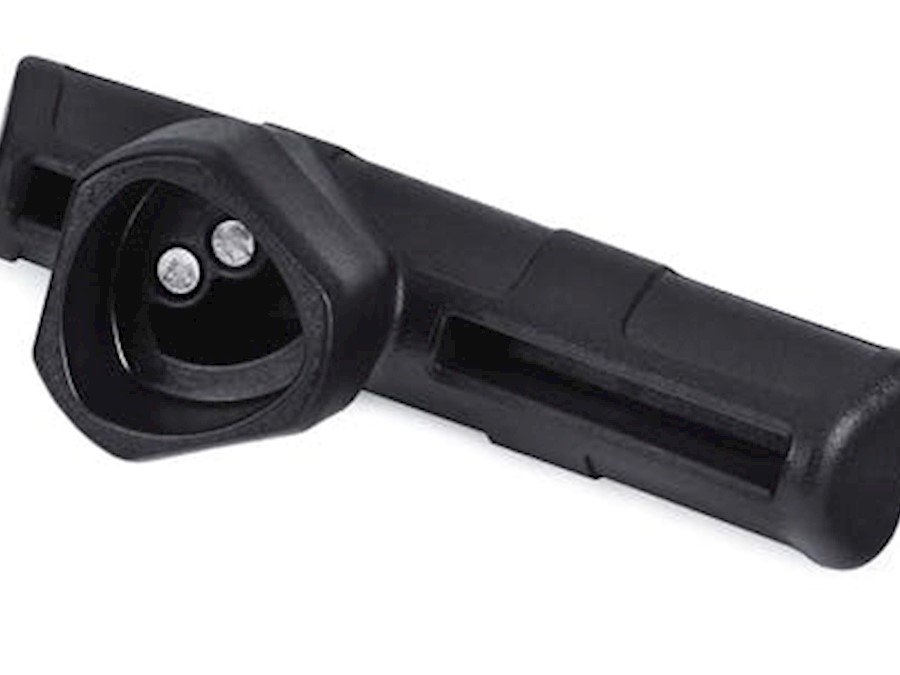

  • L-Grip handles (PN# 10769) are available for separate purchase and are NOT included with the tool.
  • Password protected
  • Units of measure: in-oz, in-lb, ft-lb, cNm, NM, cmkg
  • Modes of operation: Peak, TAM, T2A, Residual, Prevailing Torque
Part NumberModelCapacityLengthWeightDrive Style
107701350 Series TD (Torque Driver 80)80 in. lb.7.5"8 oz.1/4" Female Hex
107711350 Series TD (Torque Driver 80)80 in. lb.7.5"8 oz.1/4" Male SQ DR
107721350 Series TD (Torque Driver 100)100 in. oz.7.5"8 oz.1/4" Female Hex
10769L-Grip ordered separately.



107404 Slot Battery Charger



107418 Slot Battery Charger



8162614 Pack of AA NiMH Batteries
