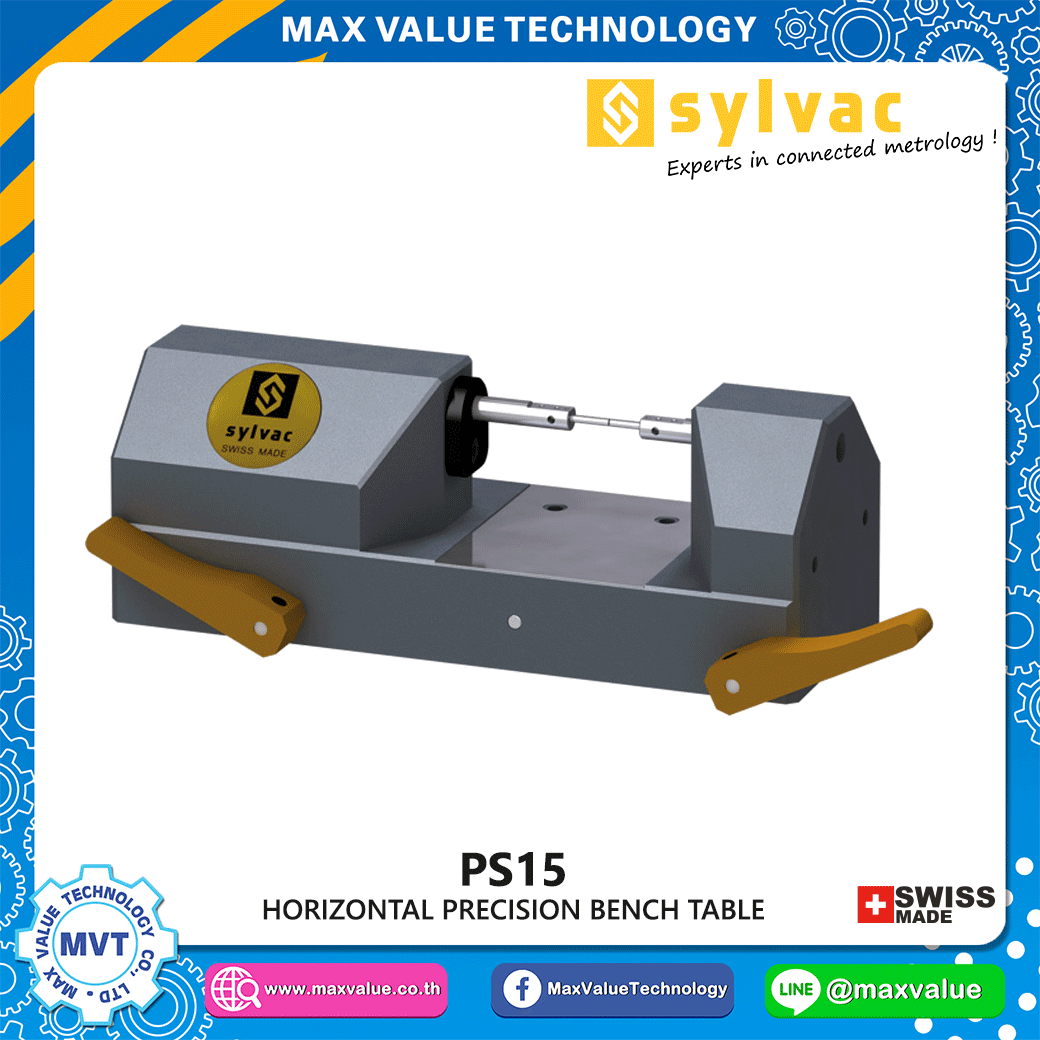

PS15 Bench table

Name: PS15 Bench table
Brand: SYLVAC
SKU: PS15BH
Availability: InStock

คุณสมบัติสินค้า:

Horizontal precision bench for measuring small external dimensions.

เพิ่มรายการโปรด

เปรียบเทียบ

แบรนด์ : SYLVAC

PS15 Bench table

Brand : SYLVAC (swiss made )
---------------------------------------

DESCRIPTION

Horizontal precision bench for measuring small external dimensions.
Can be equipped with either a digital digital indicator or a Sylvac measuring probe.
Robust cast iron construction.
2 ergonomic levers for moving the movable axis with ball-bearing guide.
Compatible with Sylvac Ø 1.5 mm and Cary type anvils.
Supplied with hard metal measuring anvils Ø 1.5 mm.
Adjustable measuring force 0.3-1.0 N.
Measuring capacity 20 mm, measuring range 10 mm.
Wide choice of measuring anvils and support tables.

Technical Specifications

	808-1215
Type	PS15BH
Max. Capacity C mm	20
Measuring range mm	10
Adjustable measuring force N	0.3 - 1.0
Max. error µm	Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 - 3µm
Weight kg	1.8
Measuring direction	Horizontal
Anvils fixation	Ø 1.5 mm
Cary Compatibility	•
