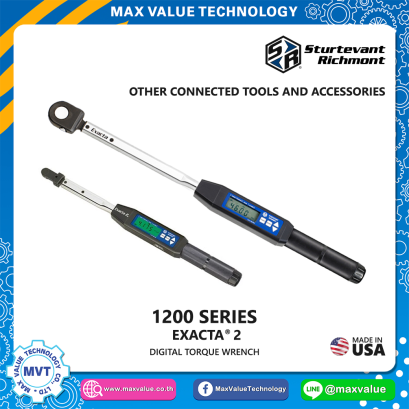

Exacta® 2 Digital Torque Wrench

คุณสมบัติสินค้า:

When the combination of superior accuracy, versatility, and data collection/communication are needed, this is the right tool.

Share

แบรนด์ : SR-Torque

Share

Exacta® 2

Digital Torque Wrench

Brand : SR Torque (USA made)

---------------------------------------

  • Bi-directional accuracy of +/- 1% of Indicated Value from 20% to 100% of capacity in Track and Peak modes meets or exceeds requirements of ASME B107.300-2010 and ISO 6789.
  • The residual mode makes this a great tool for auditing previously fastened joints.
  • The display changes color with yellow/green/red sequence to inform operator status.
  • Audible prompts from a beeper supplement visual information.
  • Exacta® 2 comes with a serial cable for communication with a PC.
  • Simple front panel programming. Four keyswitches on the front of the Exacta® 2 electronics module permit programming and operation of all key functions.
  • 999 memory locations can be accessed, reviewed, uploaded and printed - all from the front keypad!
  • Free Exawin software for programming Exacta® 2 from a PC.
  • Four of six models have the SR dovetail and can be used with SR Interchangeable Heads.
  • The Exacta® 2 uses four (4) AA NiMH batteries.



Part No.ModelTorque CapacityLever LengthOverall LengthWeightHead
10530Exacta 2 - 255-25 ft lb / 6.76-33.8 Nm12.5” / 317 mm16.1” / 409 mm2.8 lbs/ 1.27 kgDovetail
10531Exacta 2 - 7515-75 ft lb / 20.3-101.5 Nm15.8” / 401mm19.4” / 493 mm3.0 lbs / 1.36 kgDovetail
10532Exacta 2 - 15030-150 ft lb/40.66-203.3 Nm17.8” /452 mm21.5” / 546 mm3.1 lbs/ 1.40 kgDovetail
10536Exacta 2 - 25050-250 ft lb/67.78-338.9 Nm21.0” / 533mm21.2"/538mm23.0"/584mmDovetail
10533Exacta 2 - 250 R50-250 ft lb/67.78-338.9 Nm21.0” / 533mm20.8"/527mm25.0"/634mm1/2” SD Ratchet
10535*Exacta 2 - 40080-400 ft lb / 108.6-543 Nm36.5”/927.1mm35.9"/912mm35.2"/895mmDovetail
10537Exacta 2 - 400 R80-400 ft lb / 108.6-543 Nm36.5”/927.1mm33.7"/856mm38.3"/973mm3/4” SD Ratchet
10534Exacta 2 - 600 R120-600 ft lb / 162.7-813.5 Nm55.1” /1399mm59.7” / 1516 mm13.0 lbs./5.90 kg3/4” SD Ratchet
10521Exacta 2 - 25 QC5-25 ft lb / 6.76-33.8 Nm12.5” / 317 mm16.1” / 409 mm2.8 lbs/ 1.27 kgQuick Connect
10522Exacta 2 - 75 QC15-75 ft lb / 20.3-101.5 Nm15.8” / 401mm19.4” / 493 mm3.0 lbs / 1.36 kgQuick Connect
10523Exacta 2 - 150 QC30-150 ft lb / 40.66-203.3 Nm17.8” / 452 mm21.5” / 546 mm3.1 lbs/ 1.40 kgQuick Connect
10518Exacta 2 - 250 QC50-250 ft lb / 67.78-338.9 Nm21.0” / 533mm25.2” / 640 mm4.1 lbs/ 1.86 kgQuick Connect
21774Charger & 4 AA NiMH4 AA NiMH 1400 mAh batteries & charger, NAFTA only
816261AA NiMH Batteries1400 mAh NiMH batteries, 4-pack
