HEIGHT GAUGE - V6

คุณสมบัติสินค้า:

Height Gauge for the Workshop - Measuring with excellent repeatability. Height gauge with all essential functions for the workshop

Measuring Range

400 mm. 700 mm. 1100 mm.

หมวดหมู่ : Metrology Product Height Gauge

แบรนด์ : TRIMOS

Share

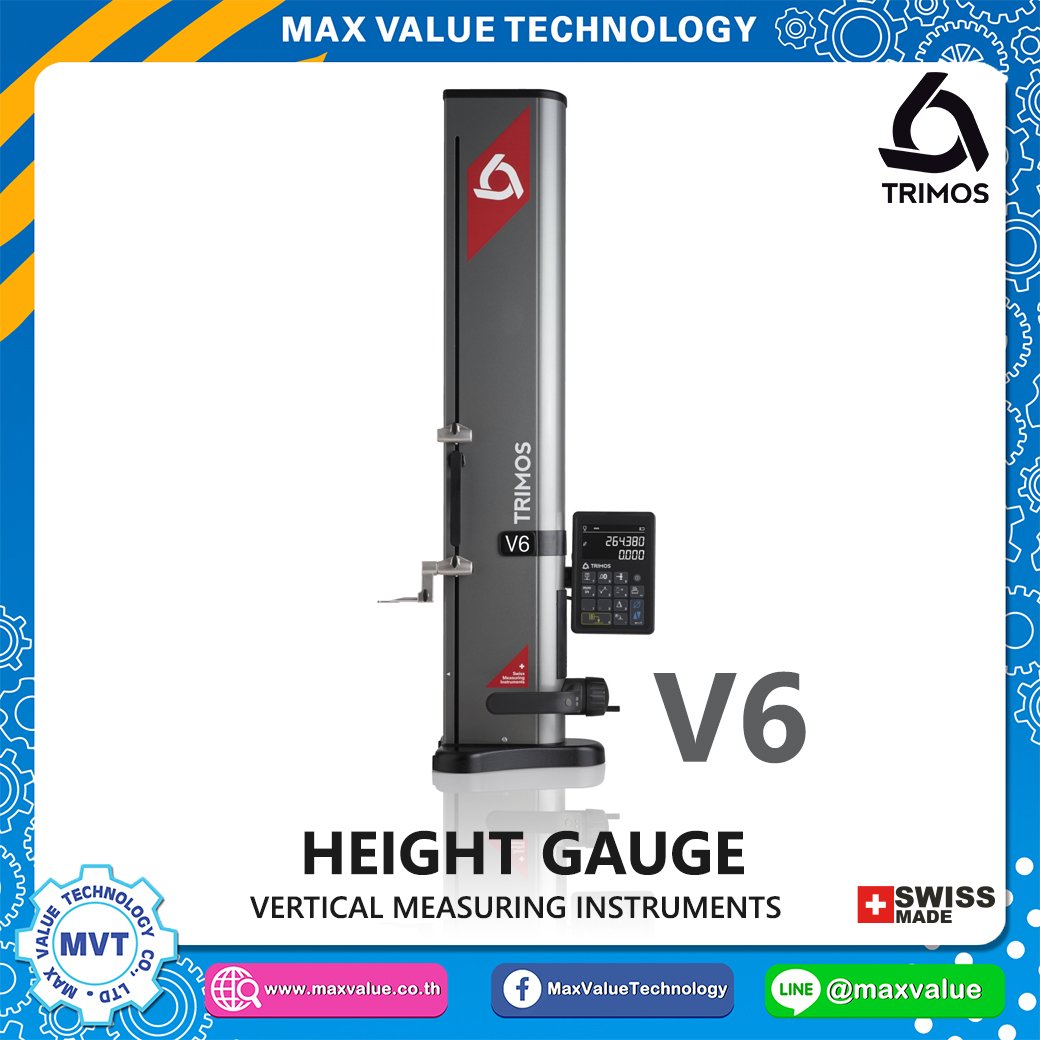

HEIGHT GAUGE - V6

  Brand TRIMOS (swiss made)

Height Gauge for the Workshop

The height gauge V6 is the descendant of the legendary V+ line, from which thousands of copies have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.

Trimos was the first to offer vertical measuring instruments on the market more than 40 years ago. The V6 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V6 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.

The design of the V6 with its side probe holders revives an old Trimos tradition: They enable.

  • Measuring ranges 400, 700 and 1100 mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Manual or motor-driven displacement
  • Standard probes up to 400 mm
  • Vast range of accessories
  • All adjustments possible without tools
  • RS232 et USB interfaces
  • Wireless data transter (optional)

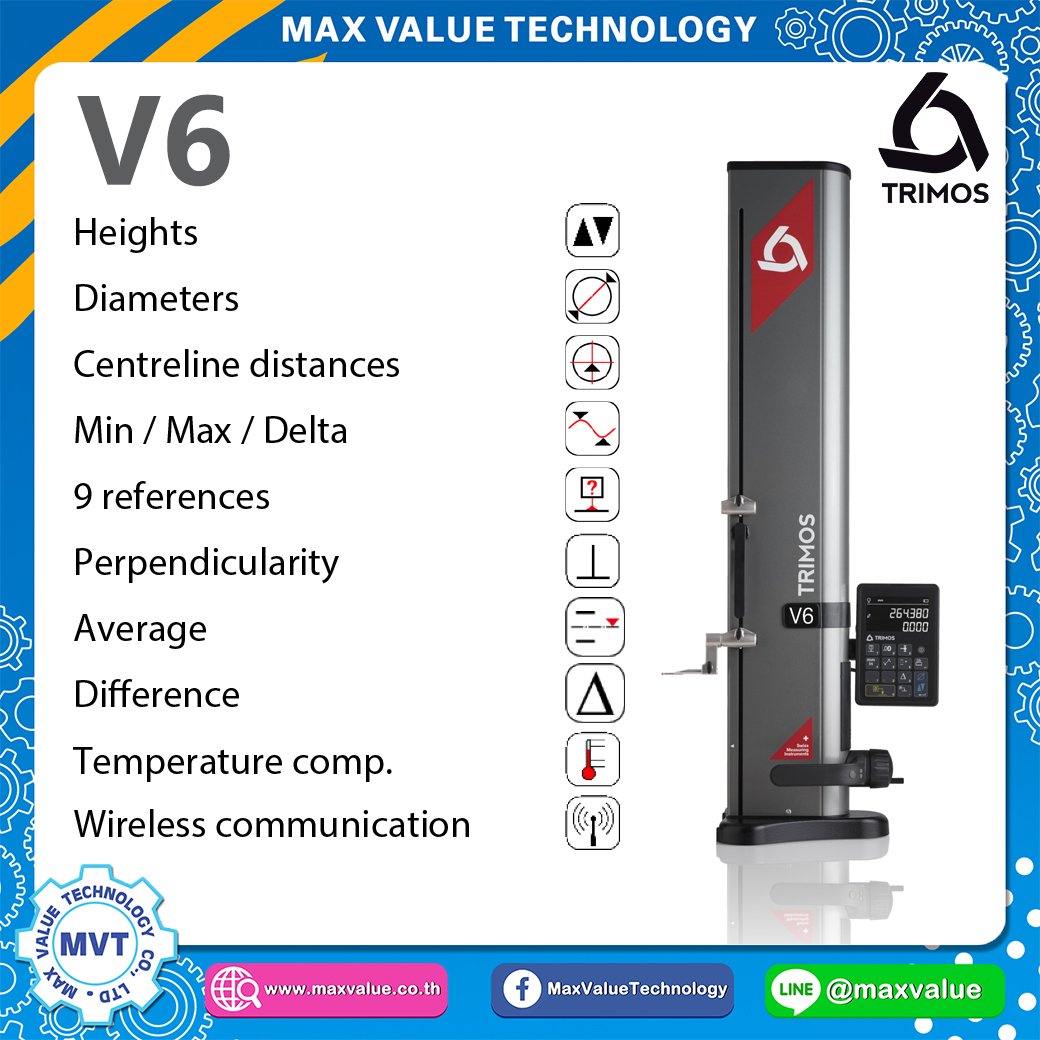

DISPLAY/SOFTWARE

Keyboard functions are represented by clear and intuitive symbols. The display on 2 lines offers the user a great working comfort.

  • Excellent contrast with "black mask" display
  • Measurements of heights or diameters
  • Min / max / delta measuring modes
  • Zero or preset function
  • USB and RS232 data output
  • 9 references available
  • Graphical and acoustic probe indicator
  • Smart reverse diameter measurement



 Video Presentation height gauge TRIMOS


 Video height gauge TRIMOS - Excellent Repeatability

 Video height gauge TRIMOS - Smart Reverse Technology

TECHNICAL SPECIFICATION

V6
4007001100
Measuring range
mm (in) 407 (16)711 (28)1110 (44)
Application range
mm (in)719 (28) 1023 (40) 1422 (56)
Max permissible errors, BMPEµm2.5 + L (mm)/400
Repeatability, RMPE (2s)µm1 (Ø:2)
Frontal squareness deviation SMPEµm5811
Max. Resolutions
mm(in)0.0001 (0.00005)
Measuring force
N0.75 ÷ 1.5
Autonomy
h12
Data output

USB / RS232 / Wireless (optional)
Air cushion Yes
Weight
kg212433

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
