HEIGHT GAUGE - V8

คุณสมบัติสินค้า:

Height Gauge with Fine Adjustment - Height gauge with extreme precision, repeatability, high resolution and with Swiss made finish. It is equipped with specific handle for fine adjustment.

Measuring Range

400 mm. 700 mm. 1100 mm.

หมวดหมู่ : Metrology Product Height Gauge

แบรนด์ : TRIMOS

Share

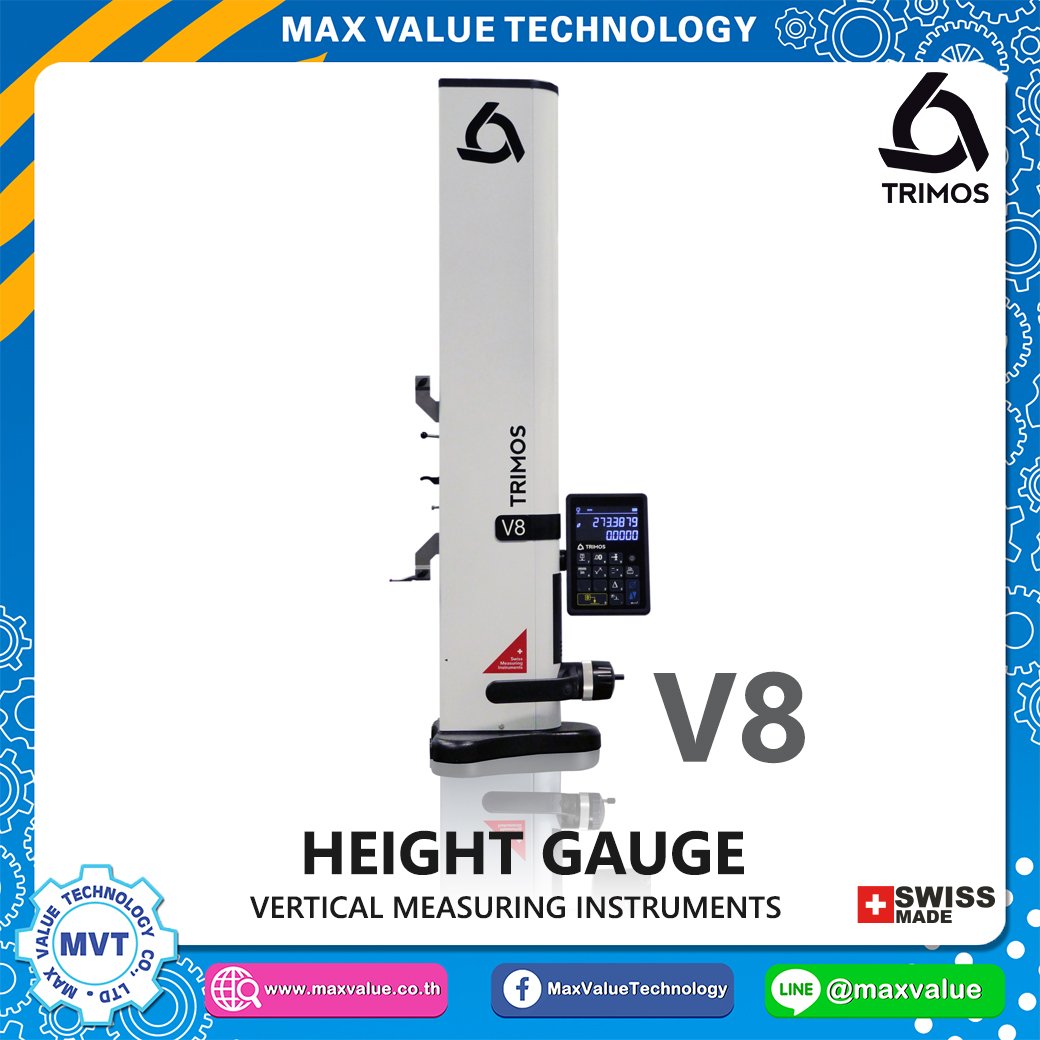

HEIGHT GAUGE - V8

  Brand TRIMOS (swiss made)

Height Gauge With Fine Adjustment

After the very successful launch of the V-line height gauges, Trimos has developed a new instrument in its height gauge family, the V8.

The mechanical design and delivery scope of the V8 are identical to the V9. It shares the features that made the model V9 so successful: extreme precision and repeatability, high resolution, and Swiss made finish. What is to underline about this new model is its specific handle for fine adjustment. Trimos developed this fine adjustment to answer to specific applications requiring a fine adjustment of carriage position.

The V8 guarantees, like its predecessors, an extremely easy use with great robustness, flexibility and extreme precision.

The large 2-line « Black Mask » display of the V8 offers an exceptional contrast in all lighting conditions. The display provides functions that are directly accessible and depicted with symbols easy to understand.

  • Measuring ranges 400, 700 and 1100 mm

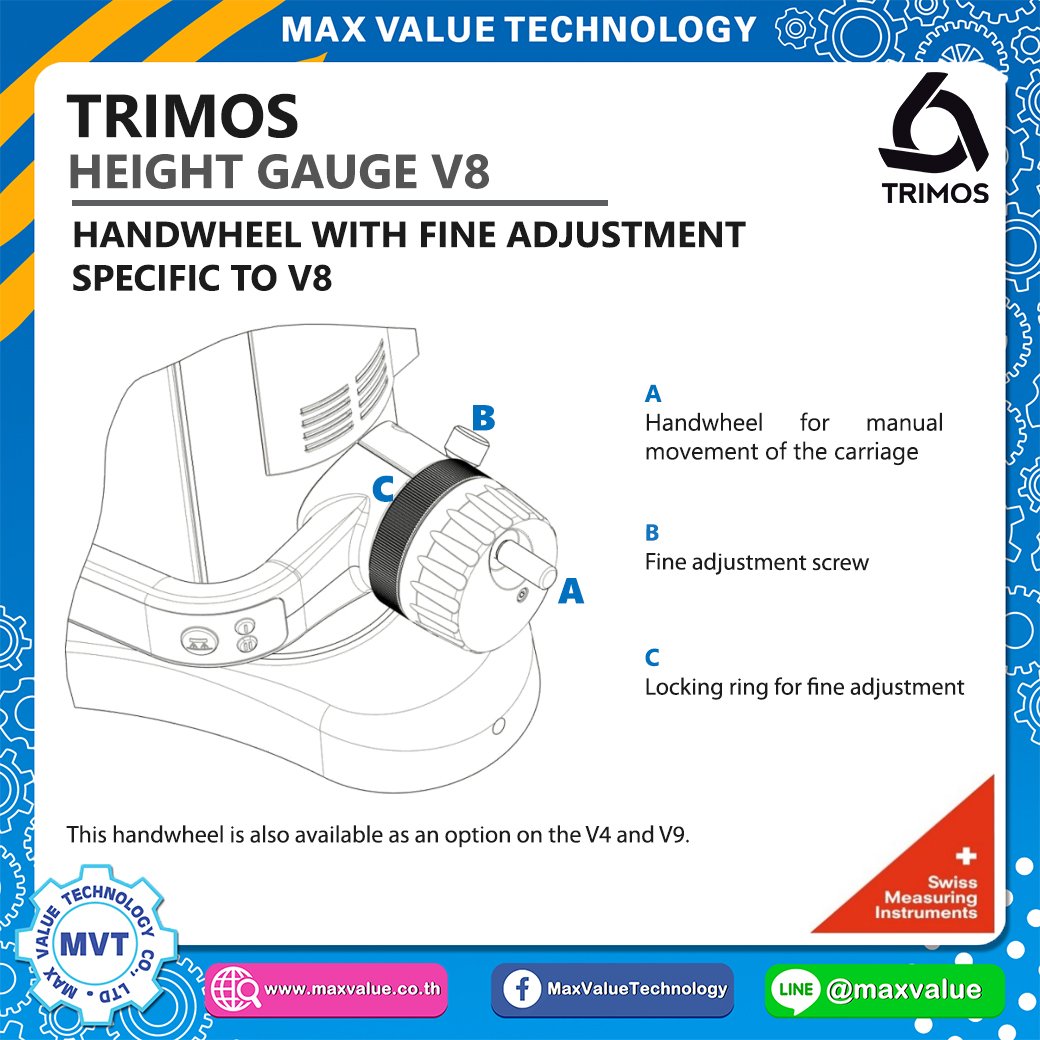

  • Specific handle for fine adjustment
  • Manual displacement
  • Exceptional precision level
  • Large range of accessories
  • All adjustments possible without tools
  • RS232 et USB interfaces
  • Wireless data transter (optional)

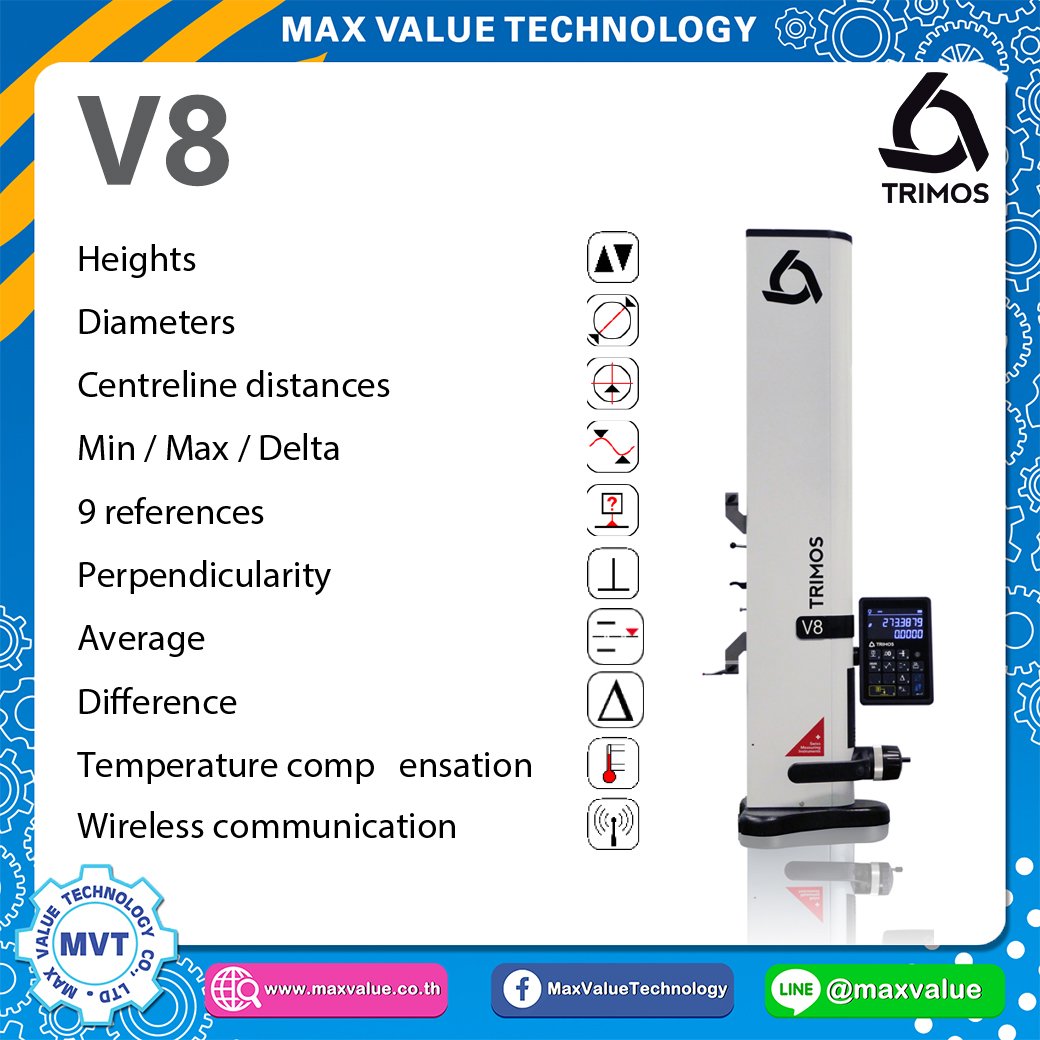

DISPLAY/SOFTWARE

Keyboard functions are represented by clear and intuitive symbols. The display on 2 lines offers the user a great working comfort.

  • Excellent contrast with "black mask" display
  • Measurements of heights or diameters
  • Min / max / delta measuring modes
  • Zero or preset function
  • USB and RS232 data output
  • 9 references available
  • Graphical and acoustic probe indicator
  • Smart reverse diameter measurement



 Video Presentation height gauge TRIMOS


 Video height gauge TRIMOS - Excellent Repeatability

 Video height gauge TRIMOS - Smart Reverse Technology

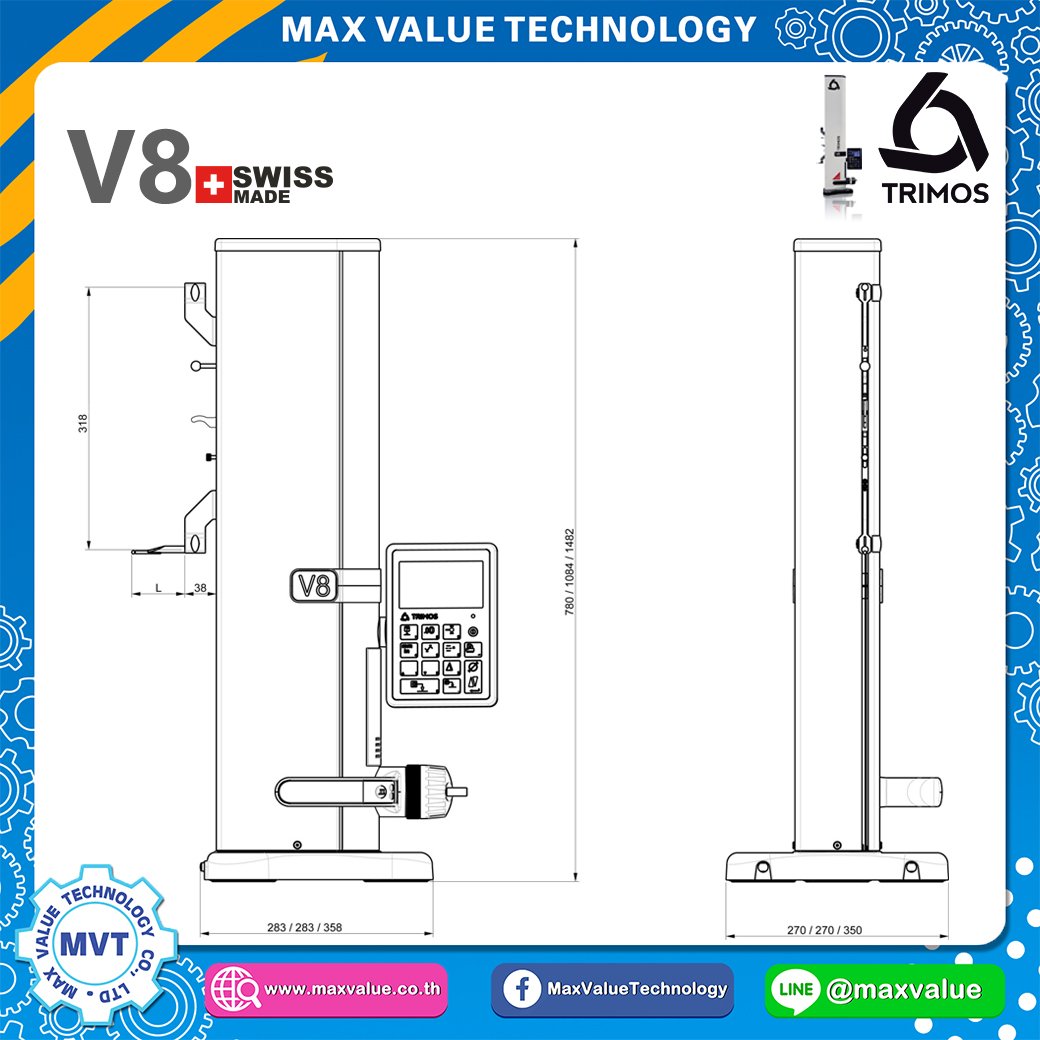

TECHNICAL SPECIFICATION

V8
4007001100
Measuring range
mm (in) 406 (16)710 (28)1109 (43)
Application range
mm (in)724(28) 1028 (40) 1427 (56)
Max permissible errors, BMPEµm1.2 + L (mm)/1000
Repeatability, RMPE (2s)µm0.4 (Ø:1)
Frontal squareness deviation SMPEµm5811
Max. Resolutions
mm(in)0.0001 (0.000005)
Measuring force
N0.75 ÷ 1.5
Autonomy
h12
Data output

USB / RS232 / Wireless (optional)
Air cushion Yes
Weight
kg222534

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
