Digital passameter 3903

Brand : Steinmeyer (Made in Germany)

____________________________________________________________________________________________________________________

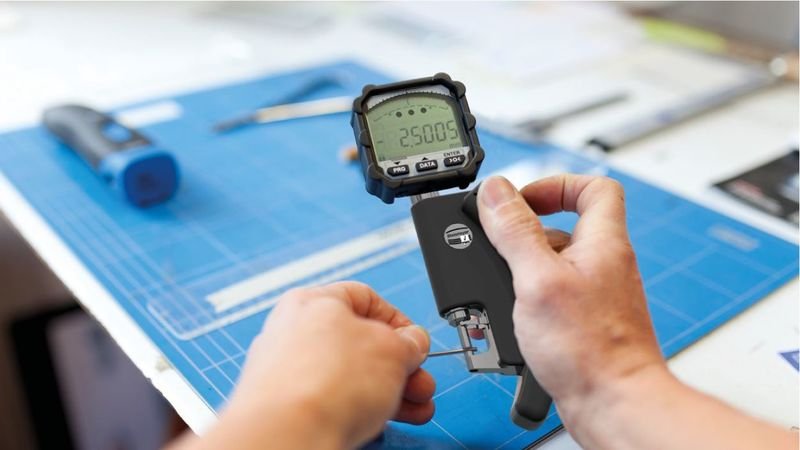

The digital Passameter for the inspection of filigree components is featured by very high accuracy and small measuring force of 0,7 N.

Application

  • for measuring small, filigree components
  • for checking round an dflat test objects
  • measuring body and display unit are seperable
  • for easy series testing on the machine or at the workplace

Technical data

  • Measuring surfaces 4,8 mm
  • Flatness / parallelism < 0,3 µm / < 0,6 µm
  • Repeat accuracy < 0,2 µm
  • Resolution 0,1 µm
  • Measuring force 0,7 N/ 1,2 N/ 2,0 N
  • Weight measuring body 380g
  • Protection class IP 65

Benefits

  • High measuring accuracy with resolution of 0.1 m
  • Small measuring areas of 4,8 mm
  • Completely fine measuring range of 4 mm
  • Measuring body and display elements can be separated
  • Simple series measuring also at the workstation or in goods receiving area
  • Low gauging force, can be selected from 0.7 to 2.0 N
  • High repeatability of < 0.2 m
  • Large display with optional interfaces
  • Programmable LEDs for limit value specification
  • Device temperature monitoring for secure measurement
