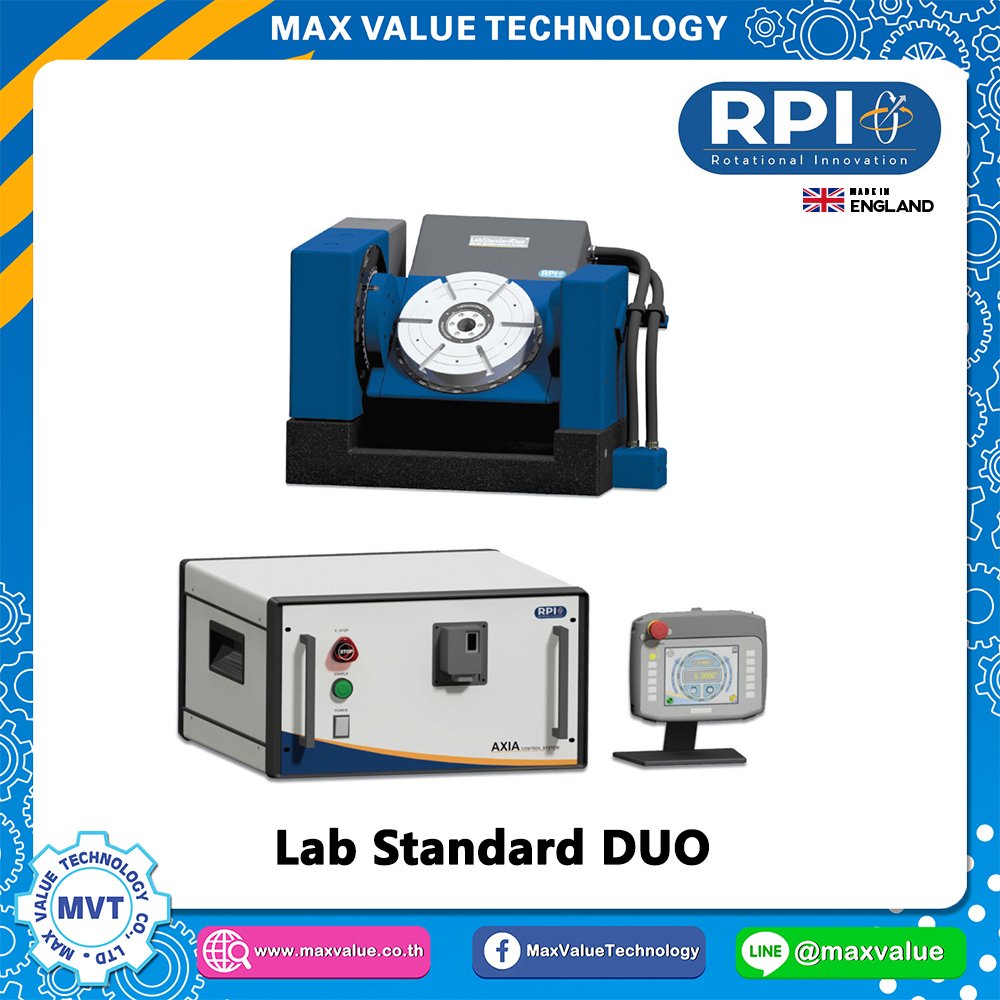

LabStandardDUO
Brand : RPI (Made in England)
---------------------------------------
HIGH PRECISION ANGULAR POSITIONING, CALIBRATION AND GEOMETRY INSPECTION
Ultra precise rotary tables intended for fine inspection, metrology and test applications.
2 axis design for rotary tilting applications with self-locking worm gearing and a high accuracy angular encoder ensures sensitivity and fine positioning for metrology and precision testing.
Measurement Capacity:
- 360° Rotary and -10° to +180° tilting axis
- Sizes Ø250mm, Ø300mm, and Ø400mm
- Overall height 225mm (axis vertical)
- Centreline height 342mm (axis horizontal)
- Load capacities up to 175kgs
- Load moment up to 300Nm
- Powerful pneumatic clamps (optional)
- Angular accuracy 2 arc seconds
- Angular repeatability 0.5 arc seconds
