Digital Horizontal Profile Projector PH350-2010 Ø350mm

Attribute:

Profile Projector PH350-2010 Ø350mm

Share

Brand : CHOTEN

Share

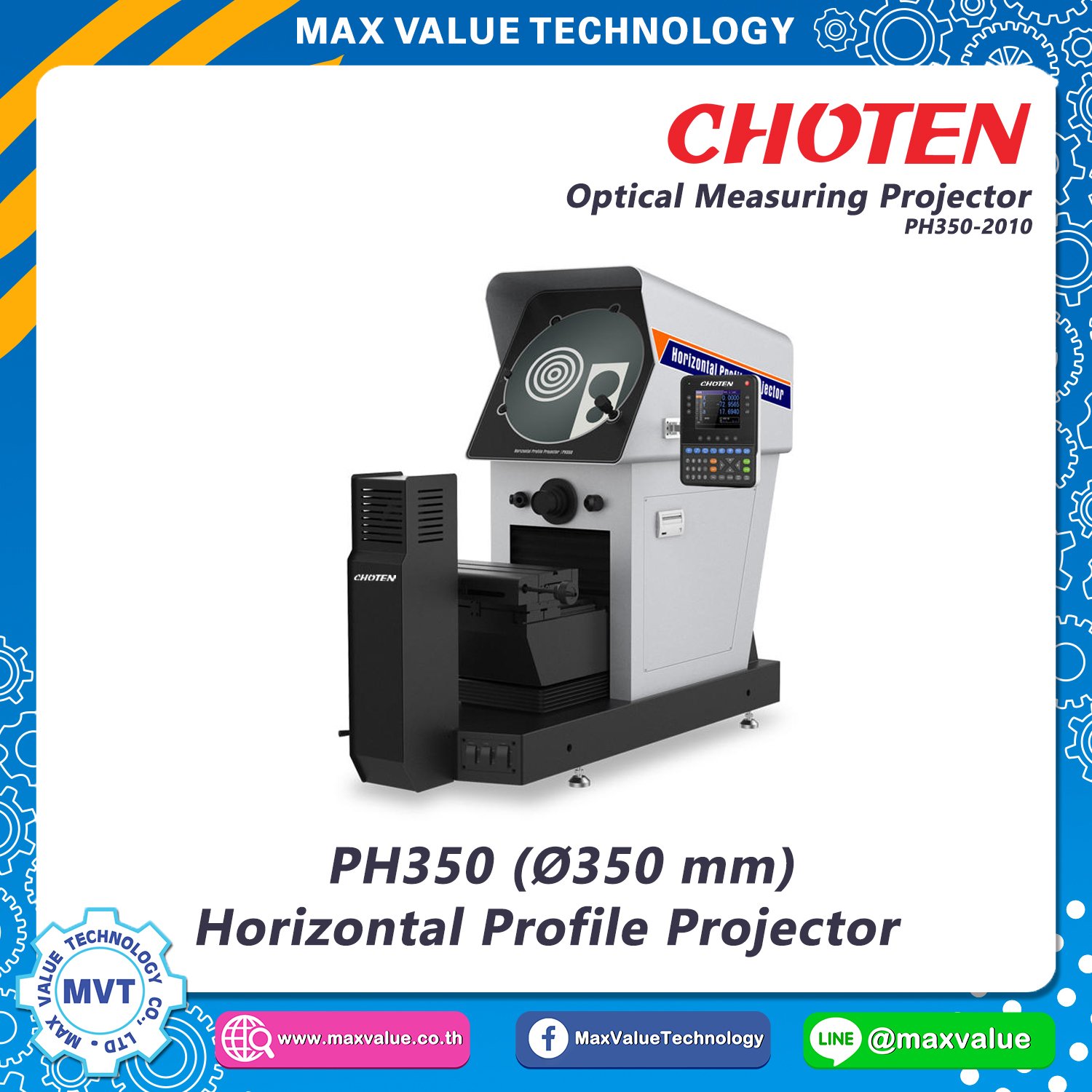

Digital Horizontal Profile Projector PH350-2010 Ø350mm

Brand : CHOTEN

---------------------------------------

Product Feature :

  • The lifting system adopts linear guide rail and precision screw drive, which makes lifting drive more comfortable and stable.
  • Coating process reflector, clearer image and great dustproof.
  • Adjustable contour and surface illumination, to meet with difference workpiece demand.
  • Imported high light and long using life LED illumination ,to ensure precision measurement demand.
  • High resolution optical system with clear image and magnification error is less than 0.08%
  • Powerful Bi-axial fan cooling system,highly increase using life.
  • Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement.
  • Built-in Mini-printer, can print and save data.
  • With standard 10X objective, optional,20X,50X objective,rotary table, foot switch ,clamp, etc.



Technical Specification :

Product NameØ350mm Digital Horizontal Profile Projector
ModePH350-2010
Code512-350
Working Stage Size355x126mm
Working Stage Travel200x100mm
Focusing90mm
Accuracy≤3+L/200(um)
Resolution0.0005mm
Loading Weight15Kg
ScreenScreen diameter:φ380mm, Effective range ≥ Ø350mm
Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
Digital ReadoutDP400 (510-340)Multifunction colorful LCD digital readout
IlluminationContour Illumination:3.2V/10W LED; Surface Illumination:220V/130W halogen lamp
Working EnvironmentalTemp:20℃±5℃,Humidity:40%-70%RH
Power SupplyAC110V/60Hz; 220V/50Hz,200W



Optional Objectives :

Magnification10X20X50X
Field of Viewφ35mm φ17.5mm φ7mm
Working Distance75mm69mm44mm
