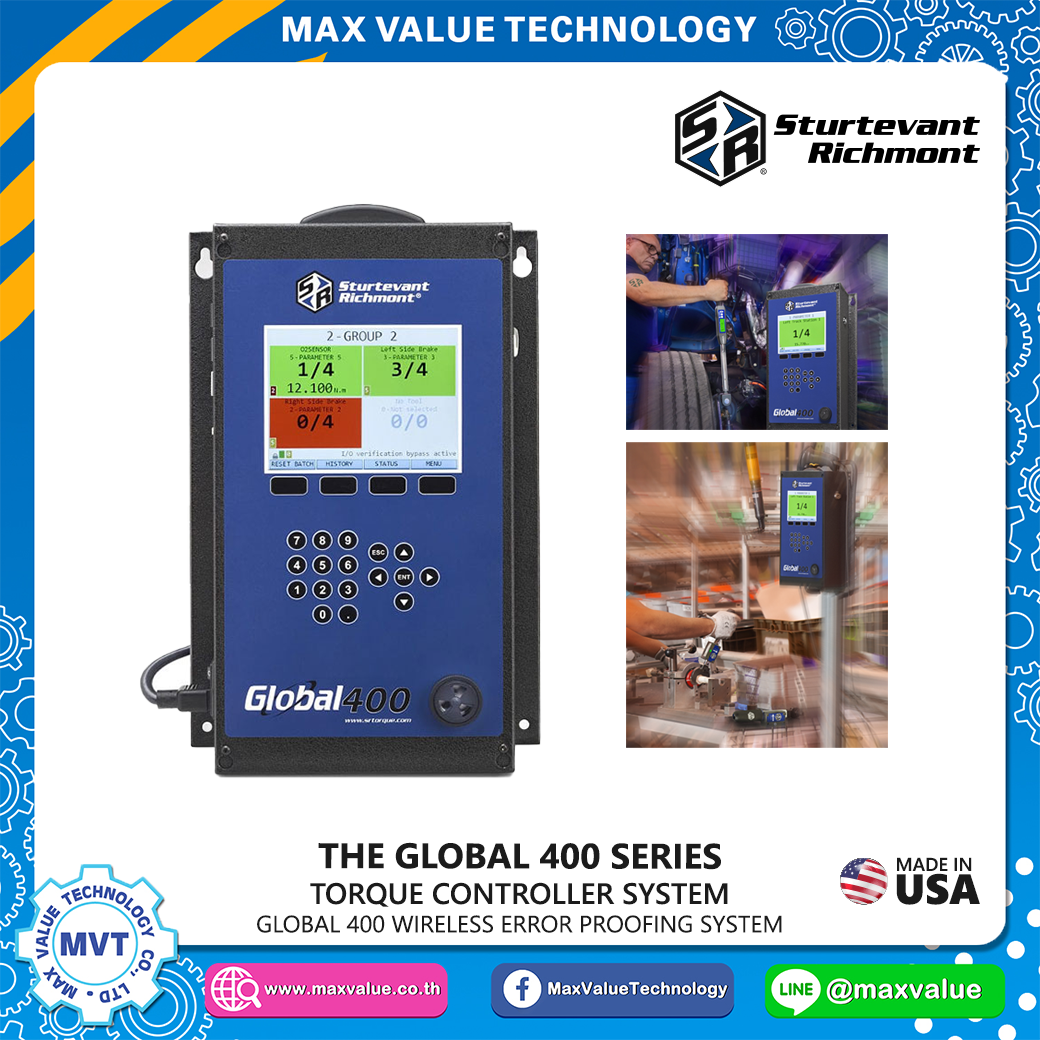

Global 400 Torque Controller System

Attribute:

The Global 400 performs as a station dedicated process controller that organizes, directs workers, tools, and tasks. It also brings a powerful networking capability not previously available in the Global 8 and the Global 100 series.

Share

Brand : SR-Torque

Share

Global 400 Torque Controller System

Brand : SR Torque (USA made)

---------------------------------------

Mixed Model Manufacturing
Mandates Flexibility:

We specialize in solving the most complex assembly challenges. The Global 400 is designed to organize work stations where highly customized products are assembled. It can work with 16 primary torque tools, 8 holding tools, and an additional 8 I/O tools. It has the capacity for 100 sets of parameters that can be grouped allowing 4 operators to work as a team. These parameters or groups can be formed into jobs containing a fixed build sequence of up to 35 steps.



Mixed Model Manufacturing
Mandates Communication:

The Global 400 communicates with the operators, the tools, and your network in multiple ways. Parameters or jobs can be assigned via the Ethernet or by the operator via a bar code scanner. Tools can be selected or programmed wirelessly, while the controller displays the required work to the operator. As the operator works through their task, the tools and controller provide auditory, tactile, and visual guidance. The tools provide the controller with immediate notification of operator results. The controller stores up to 10,000 results in on-board memory, and automatically updates your production system via multiple protocols. No production interruptions!



System Capabilities:

  • Six inch diagonal, back-lit, color LCD display 2-RJ-45 Ethernet ports allow for chain, or ring network
    communication.
  • USB-A connector for use with bar code scanner, or updating firmware, and saving files.
  • RS-232 D-Sub9 Connector for use with serial bar code scanner or serial printer.
  • Ten pin I/O connector providing discreet I/O capabilities.
  • Five pin connector for the additional I/O capabilities of the optional GIM400.
  • Power Supply 100-240 VAC at 50-60 Hz.
  • Key switch for programming access. 21-function keys for programming.
  • Adjustable and programmable beeper for audio communication.
  • Order Part No. 10474 cable for 10 pin I/O



Download :

 Cataloge Global 400 Torque Controller System
