Pre-Order

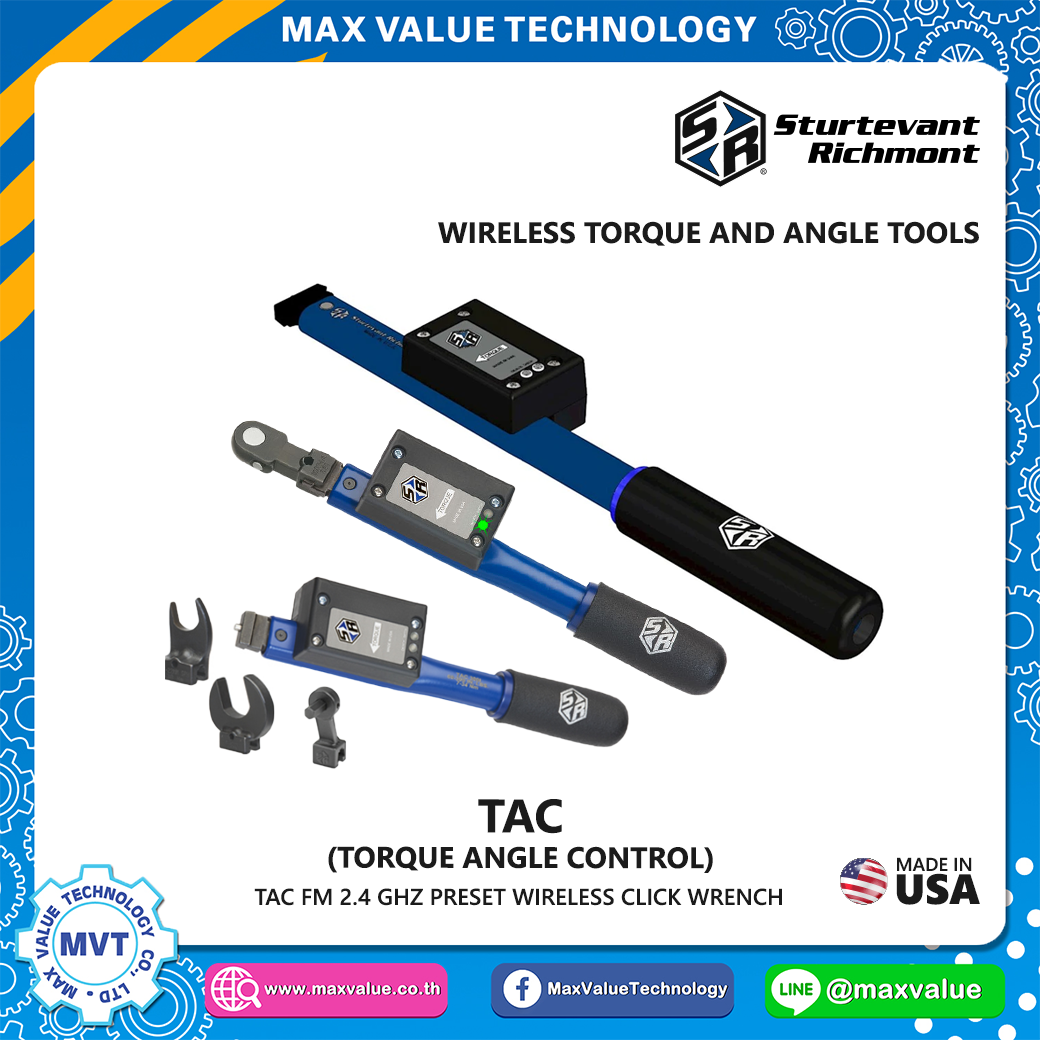

TAC Digital Torque and Angle Wrench

Attribute:

TAC - The game changing digital torque and angle click wrench is like no other. Learn why this two in one torque wrench is taking the assembly world by storm.

Brand : SR-Torque

Share

TAC Digital Torque and Angle Wrench

Brand : SR Torque (USA made)

---------------------------------------

Description

  • The speed and access of a click wrench with the accuracy of torque and angle applications. Operator sees OK/NOK LED and the reporting documents date/time stamped attribute data including degree of rotation (angle measurements.)
  • Fully compatible traceable torque and angle results with the Global 400, Global 400mp and the all-new TCV-e2.
  • Supports simultaneous operation in the Global 400 and TCV-e2 application. Use with Global 400mp for independent tool operation.
  • Works with the patented Holding Tool in the Global 400/400mp.
  • Torque accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789. Angle accuracy to within 1°.
  • Is equipped with 2 LEDs on the radio case. One LED is Green/Red for OK/NOK. The second LED flashes Blue to indicate tool is selected and turns Blue during use for batch completion.
  • Access to well over 200 SR interchangeable heads.
  • Audible/tactile pulse when preset torque is achieved.
  • Powered by one AAA NiMH rechargeable battery. Shipped with 2 NiMH rechargeable, recyclable batteries. Charger sold separately.
  • Error Proofing By Guidance: Provides “OK/NOK” LED on the radio case on the wrench.
    • When P-Set is activated Blue LED indicates selected tool.
    • Differentiating sounds for acceptance tone/reject beep comes from the controller.
    • Orange flashing LED: Low battery warning light.

A NiMH rechargeable AAA battery is the mandated power supply because they provide a stable power curve until the very end of the charge. We are also focused on environmental friendliness. Using NiMH AAA with the largest mAh rating you can find will extend time between battery changes.



Part No.ModelTorque Capacity*HeadA (in.)B (in.)C (in.)D (in.)Weight (lbs.)
810712TAC-150I30-150 in lb / 3.4-17 NmDovetail7 3⁄321 21⁄6415⁄161 47⁄640.5
810713TAC-300I60-300 in lb / 6.8-34 NmDovetail9 1⁄321 21⁄6415⁄161 47⁄640.5
810714TAC-750I150-750 in lb / 17-85 NmDovetail12 53⁄641 21⁄6411 47⁄640.5
810715TAC-1800I360-1800 in lb / 40.8-204 NmDovetail16 3⁄161 21⁄641 1⁄41 47⁄641.3
810721TAC-1800I ERGO360-1800 in lb / 40.8-204 NmDovetail20 9⁄161 21⁄641 1⁄41 47⁄641.3
10711TAC Connect Software (for 1350 Series Exacta and TAC Torque and Angle Wrench tool calibration)
10710SR Connect (radio interface for tool calibration)
107404-Slot Battery Charger
107418-Slot Battery Charger
21970AAA NiMH Battery


 Catalog TAC Digital Torque and Angle Wrench
