GP-1Z - Automatic Grinding-polishing Machine

Brand : CHOTEN

Product Feature :

• Can set time (Countdown, automatic stop), set speed (stepless speed 100-10000rpm),set pressure in Newton

• Support automatic and manual work mode, linkage mode to use manual work and not linkage mode use automatic polishing machine.

• Super cost-effective, stable quality, complete functions,DIY can be customized according to different requirements of customers.
• Single working plate, standard plates dimension 254mm,50% larger than normal grinding - polishing machine
• One time can polishing 4 pieces of diameter 30mm samples (6 pcs for optional).

• The shell is made of high-end ABS, which has a novelappearance and high-end atmosphere.

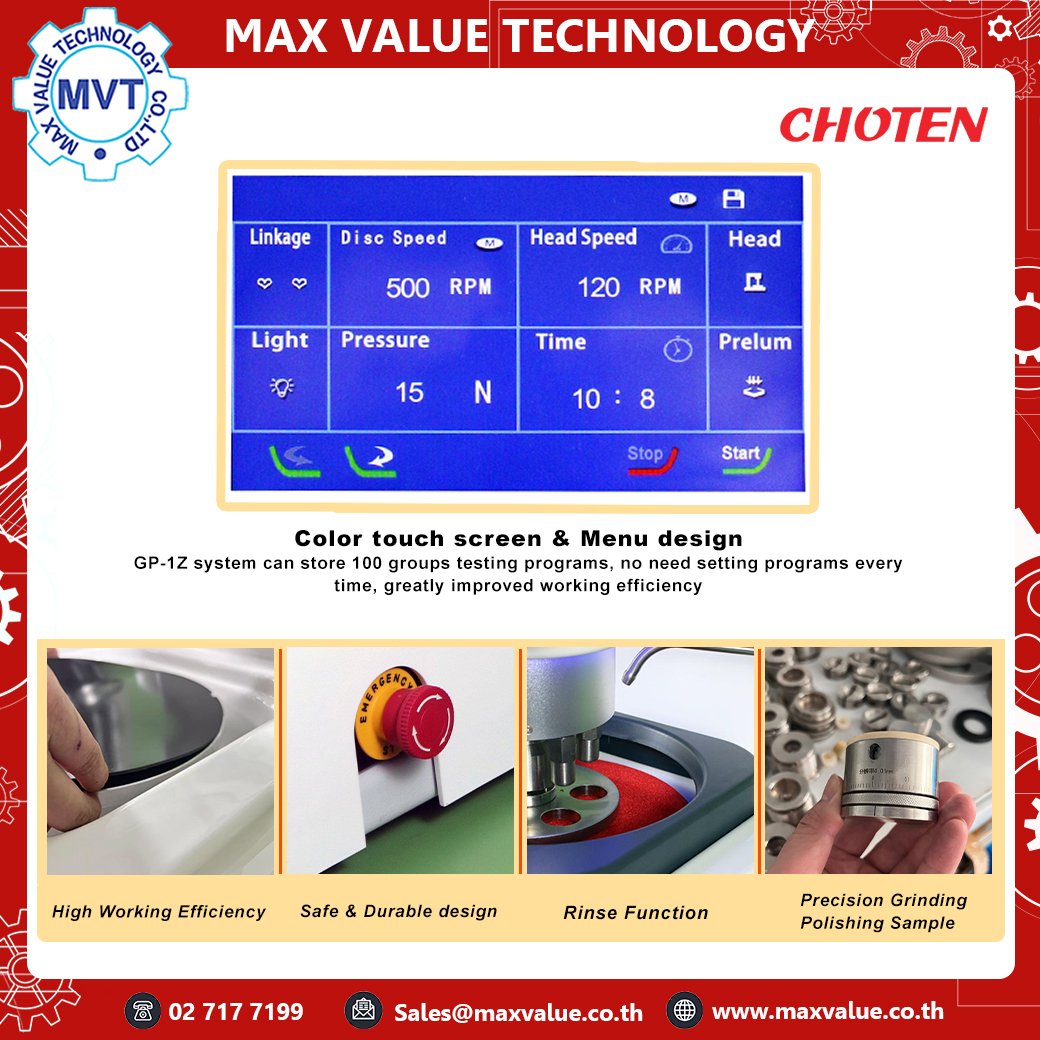

• The touch screen display control, the interface is clear and intuitive,and the operation is simple.

• The grinding head is automatically locked with electromagnetic clutch,which is convenient and quick operation (optional purchase).

• Stepless speed regulation 100-1000r/min or four constant speed regulation(customer can define three common speeds for pre-grinding, grinding and polishing).

• It can store 100 groups of grinding and polishing programs for quick recall.

• The magnetic disc design supports quick disc change,and the replacement of sandpaper and polishing cloth is more efficient.

• The free-rotating design of the sample chuck, with the internal lighting system,is convenient for taking and placing the sample.
• The whole machine adopts a three-phase silent motor and a stepping motor,with stable rotation, low noise and long life.

• Automatic centering to prevent multi-faceted grinding and polishing

Technical Specifications :
