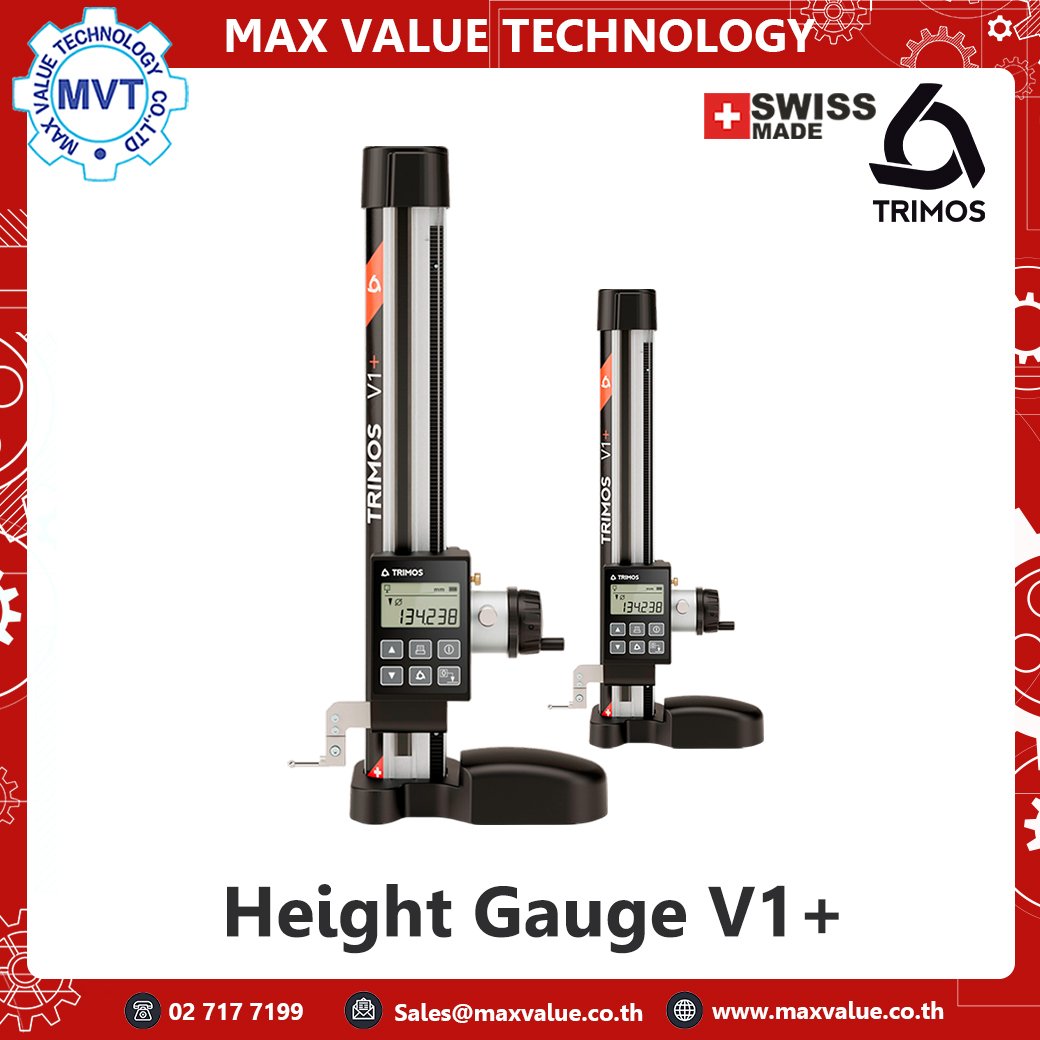

V1+ height gauges. These compact instruments are a cross between conventional tracers and more advanced height gauges. They reflect Swiss knowhow in terms of precision, reliability and ease of use.
Measuring range
Categories : New Product , Special Promotion , Special Promotion ,
Brand : TRIMOS
Share
V1+ : This model takes the foundational qualities of the V1 to new heights, catering to those looking to broaden their measurement capabilities. In addition to bidirectional measurement, which enhances versatility without requiring extra accessories, the V1+ is also perfectly suited for diameter measurements, both internal and external. It also features advanced fine adjustment and a constant measuring force, both critical for improving measurement accuracy and repeatability.

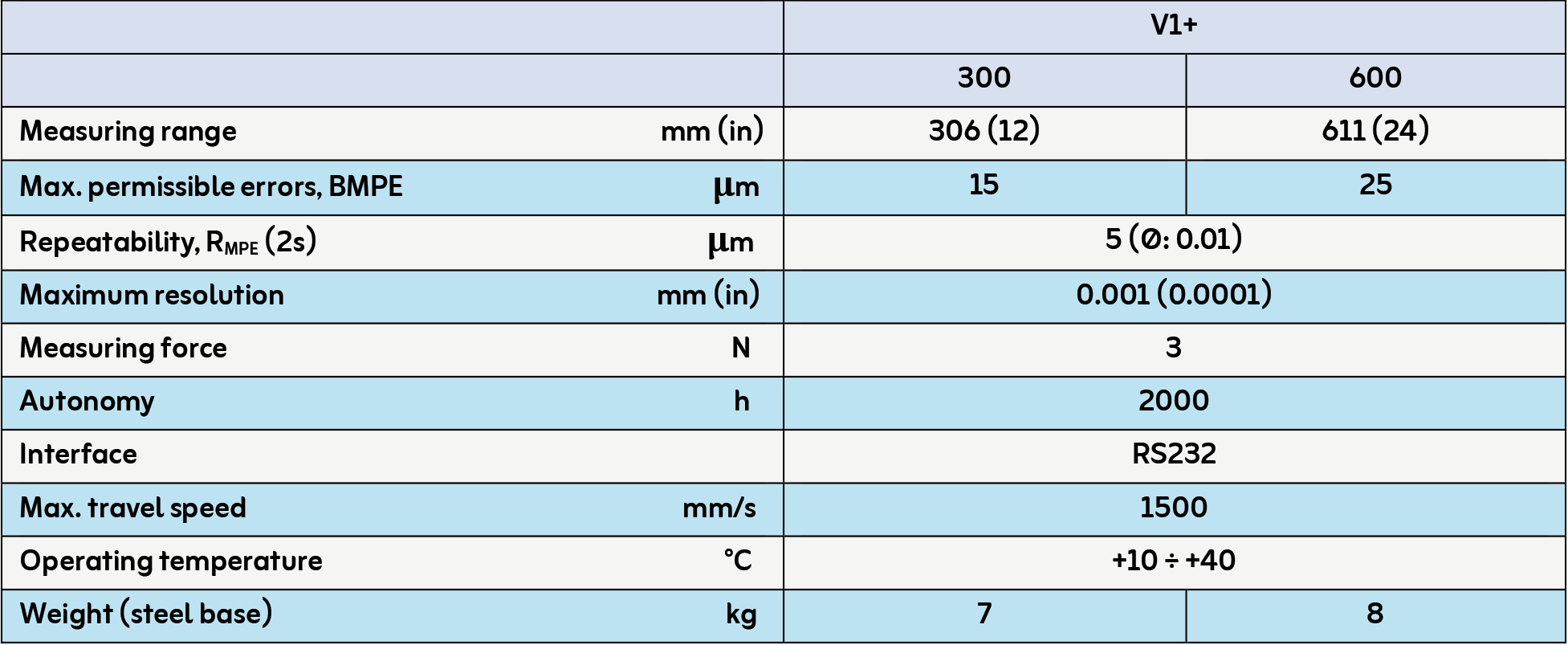

Technical details
| V1+ | 300 |
| Measuring range mm (in) | 306 (12) |
| Max permissible errors, BMPE mm | 0.015 |
| Repeatability, RMPE (2s) mm | 0.005 (Ø: 0.01) |
| Max. Resolutions mm (in) | 0.001 (0.0001) |
| Measuring force N | 3 |
| Autonomy h | 2000 |
| Interfaces | RS232 |
| Max. travel speed mm/s | 1500 |
| Weight (steel base) kg | 7 |
