MVT-100M is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution totest hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.
Wide Application, Powerful Function

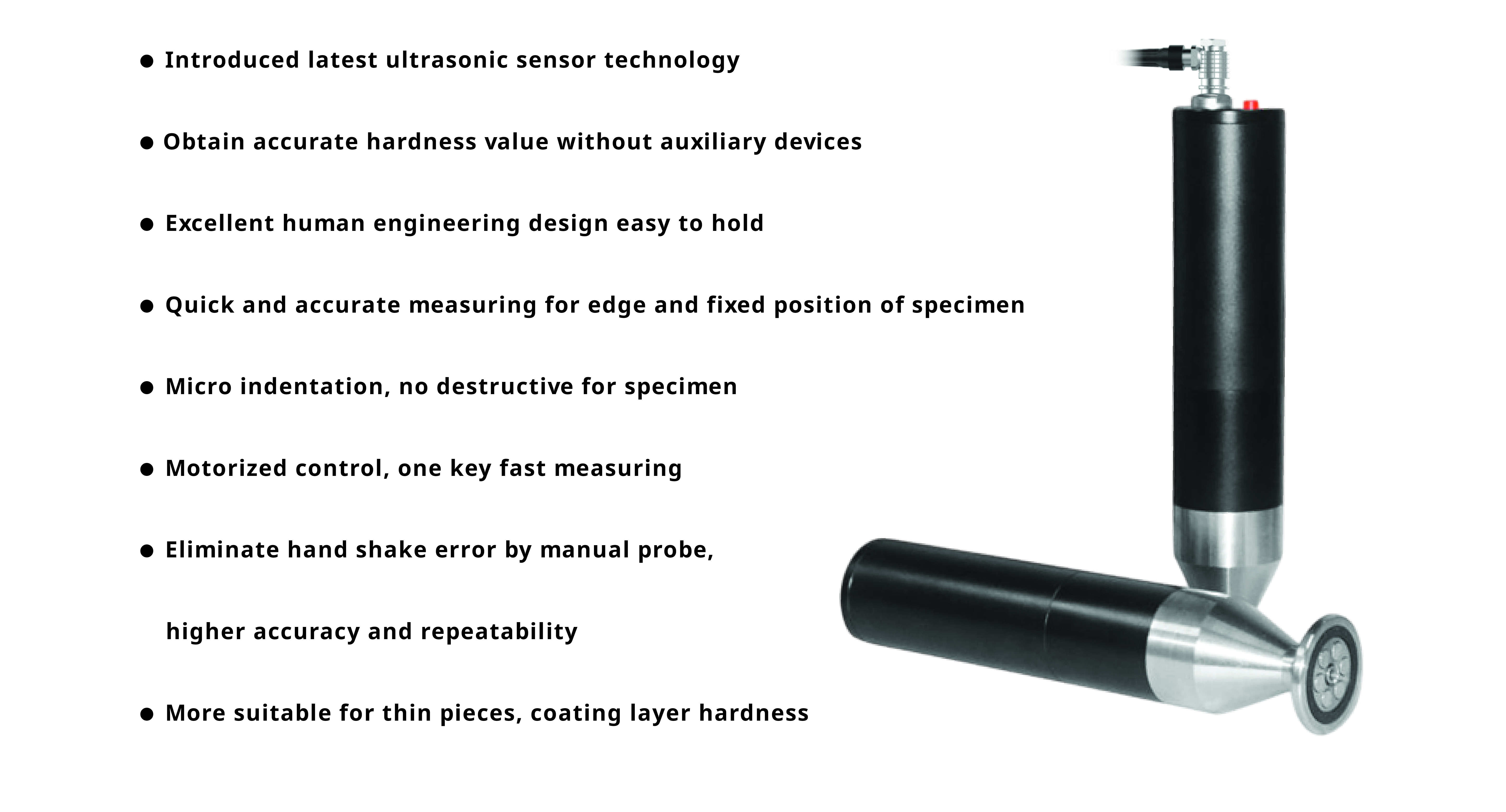

- Designed with modular template, collocation with motorized probe MP-300, MP-500, MP-800, MP-1000

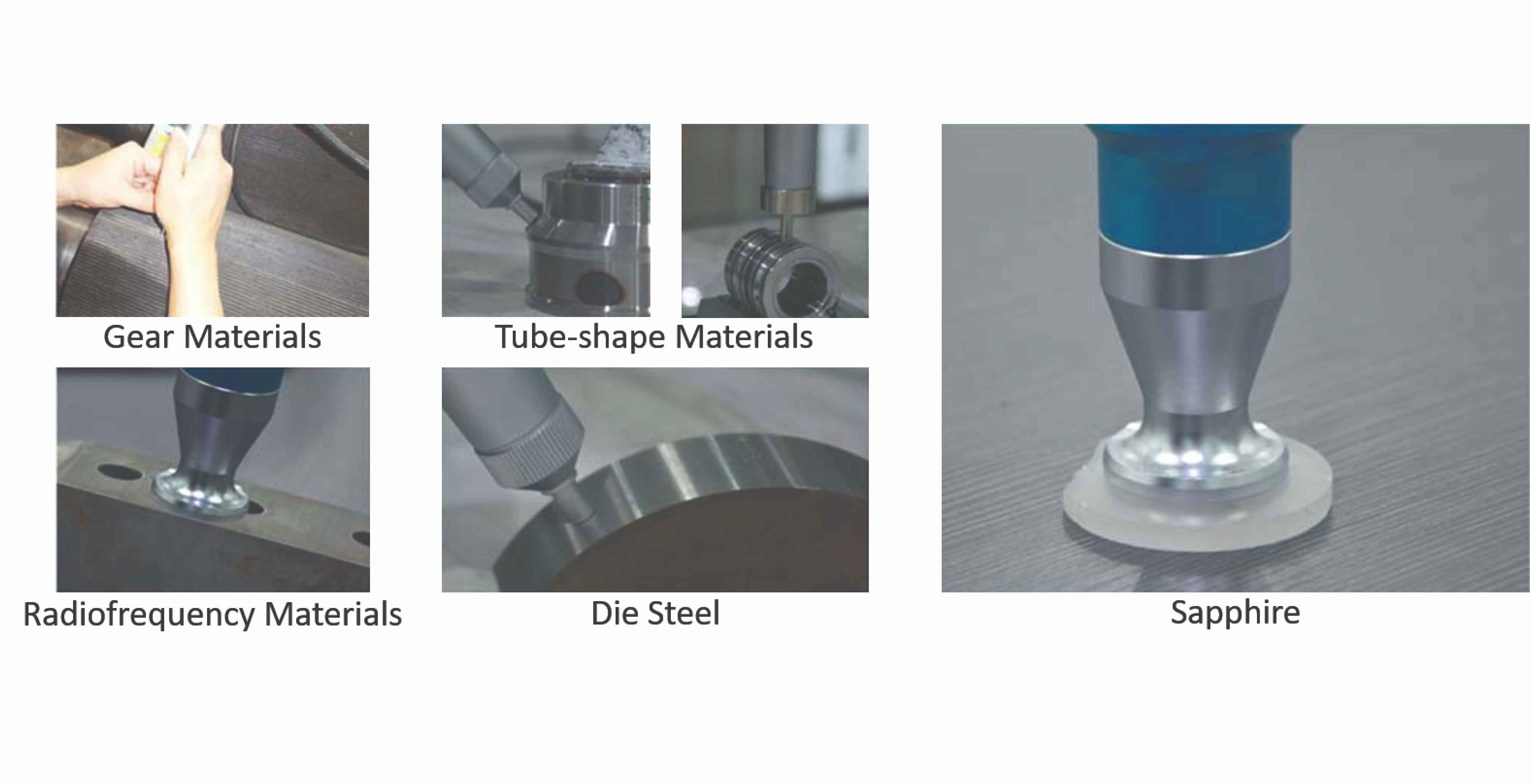

- Can measured flange edges and gear root of stamping parts, mould, sheet, hardening surface of the tooth and gear and taper part hardness; And hardness of the shaft, the pipe including inside and outside wall, container, the wheel, turbine rotor, bit blade , HAZ weld, printing roller, injection molding machine screw parts ,etc.
- Measure the vast majority of the hardness of ferrous, non-ferrous metals and the alloys in industrial production, and it is a kind of perfect testing instruments
- Can measure the material hardness of HRA, HRB, HRC, HV, HBW, HS and steel hardness at production line and laboratory.
- Can be added with manual probe HP-1 k, HP-2 k, HP-5 k, HP-10 k to measure rough samples.
- Can measure the hardness of coating, also known as the coating hardness tester
Product Characteristics
MVT-100 Motorized Ultrasonic Hardness Tester is a popular portable durometer made by Sinowon group. It applies method of ultrasonic contact independence to makehardness testing at the spot or in the laboratory.
MVT-100 is a perfect portable durometer for hardness testing about the coating and plating, it can measure the hardness of chrome, copper plating, carburized layer andNitriding layer effectively.
MVT-100 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution totest hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.
MVT-100 can not only work with the motorized probes, but also work with the manual probes, which is able to meet the different application in light of different condition of surface roughness.
MVT-100 Mconformsthe standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.
Product Features - Perfect Accuracy - ±3% HV, ±5HR, ±3%HB.
- Microscopic Indentation - Only high-power microscope can observe the indentation.
- Quick Measurement - Result in 2 seconds.

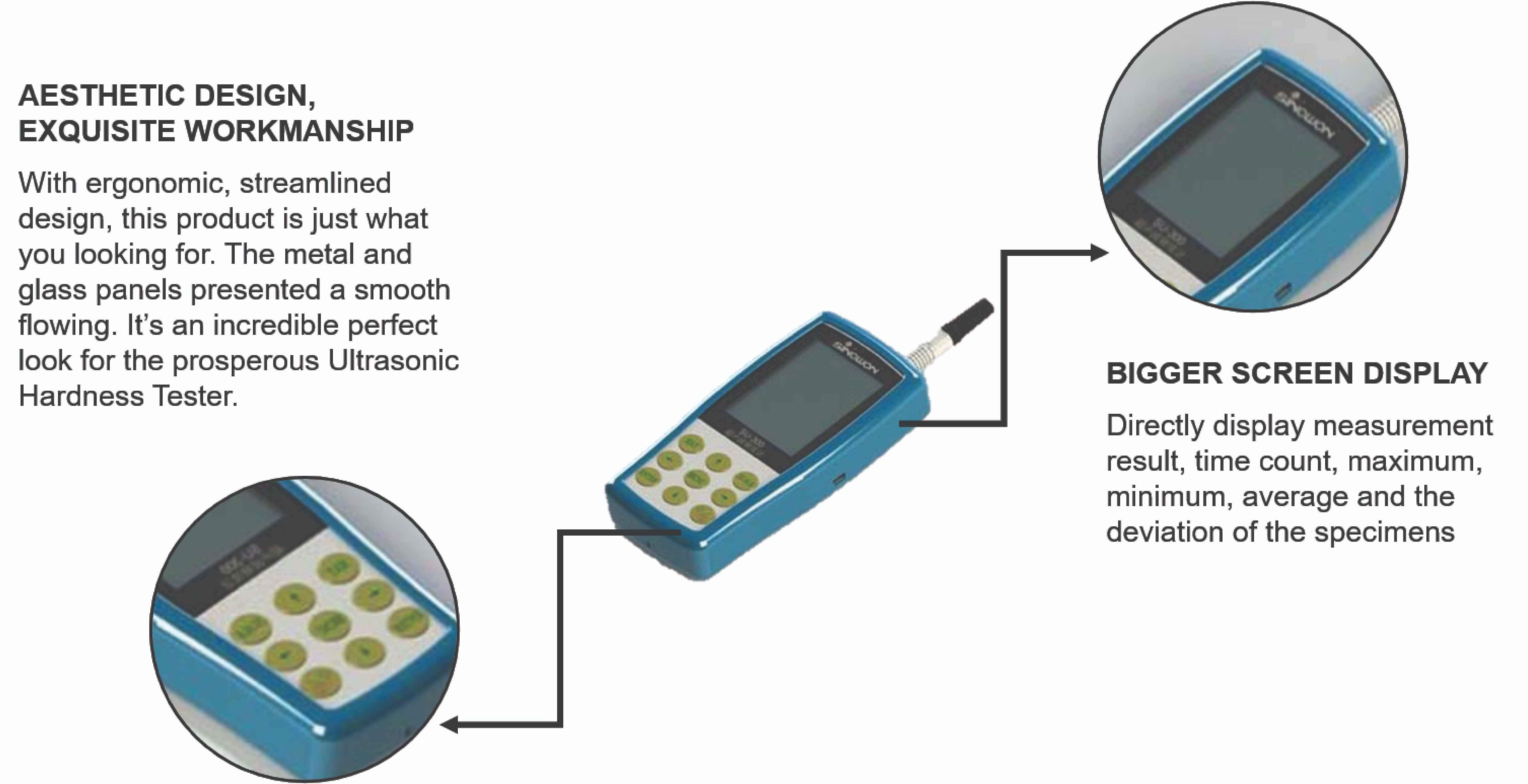

- Large LCD Display - Directly display measurement result, times count, maximum, minimal, average and deviation.
- Friendly Operation - Operate well after short training.
- Promised Warranty - 2-Year warranty for main unit (Excludes Probe).

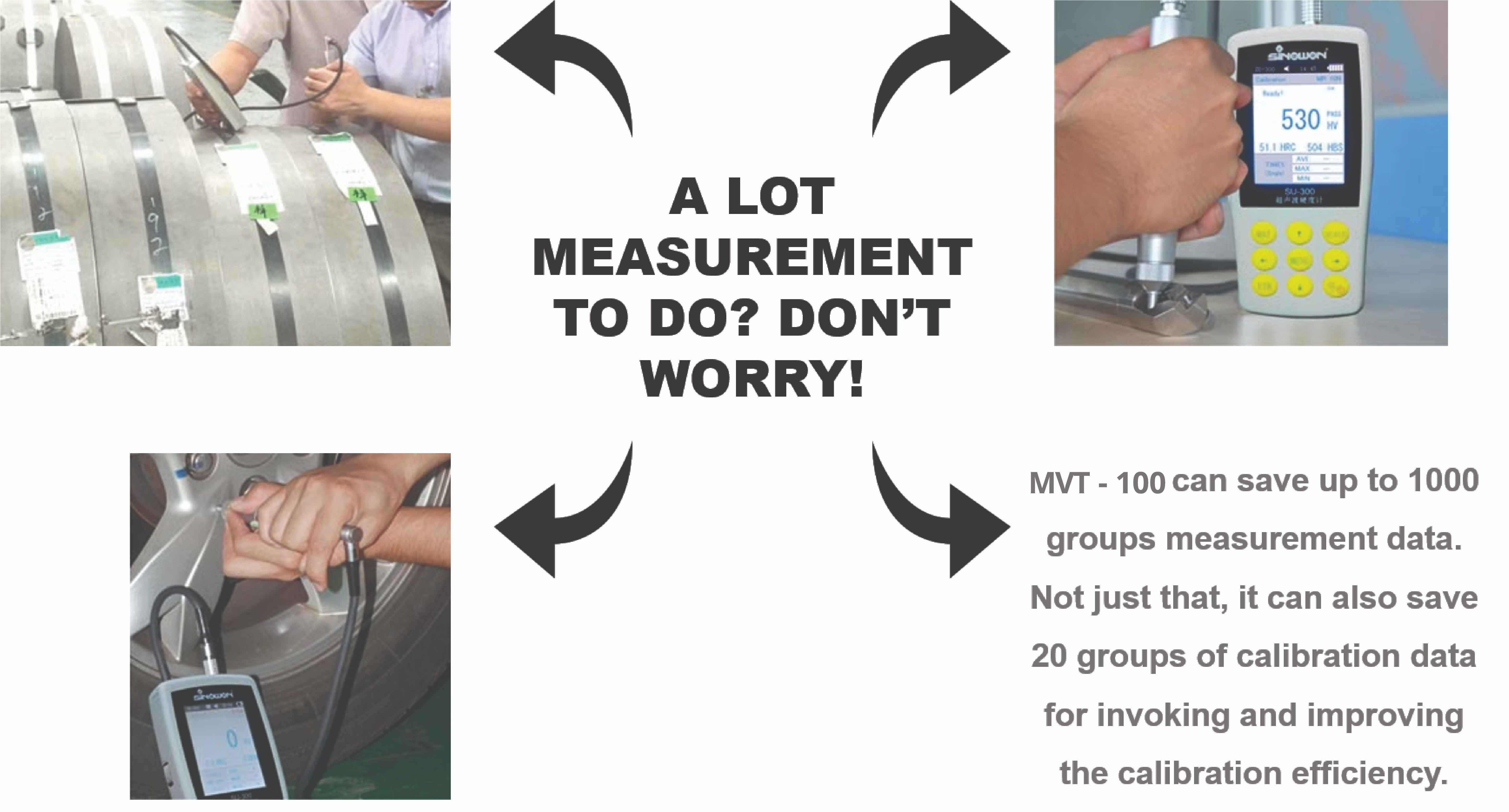

- Mass Storage - Save 1000 groups measurement data.
- Simple Calibration - Save 20 groups calibration data for invoking, improve calibration efficiency

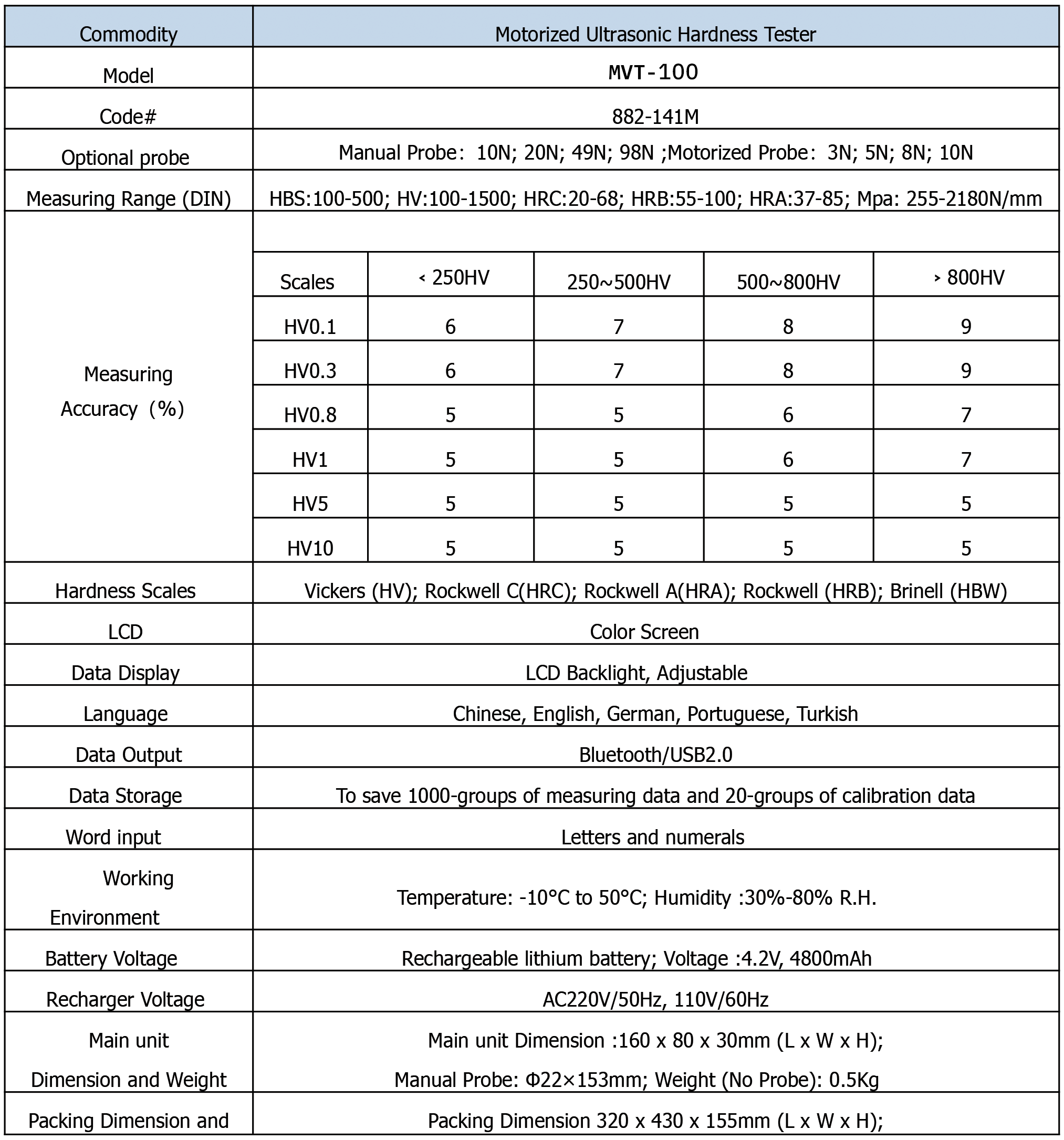

Specifications
