Main purpose and application :
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating.
3. Glass, chip and ceramic material.
Main Features :
1. Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
2. The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
3. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
4. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
5. With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
7. Industrial digital touch screen can direct display hardness value, conversion hardness value, testing method, testing force, dwell time, easy for operator to save the data.
8. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Operation Video on Youtube

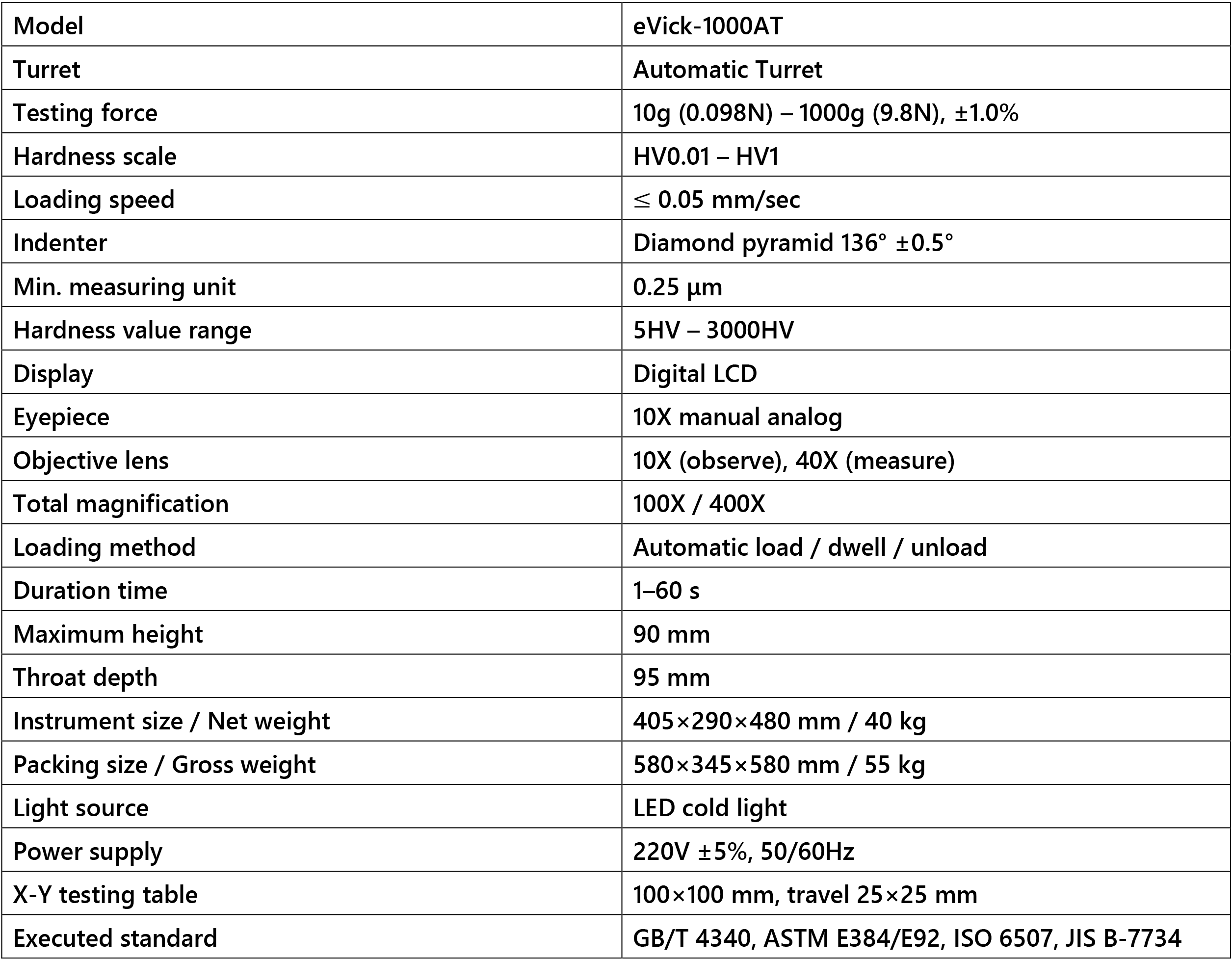

Specification:
