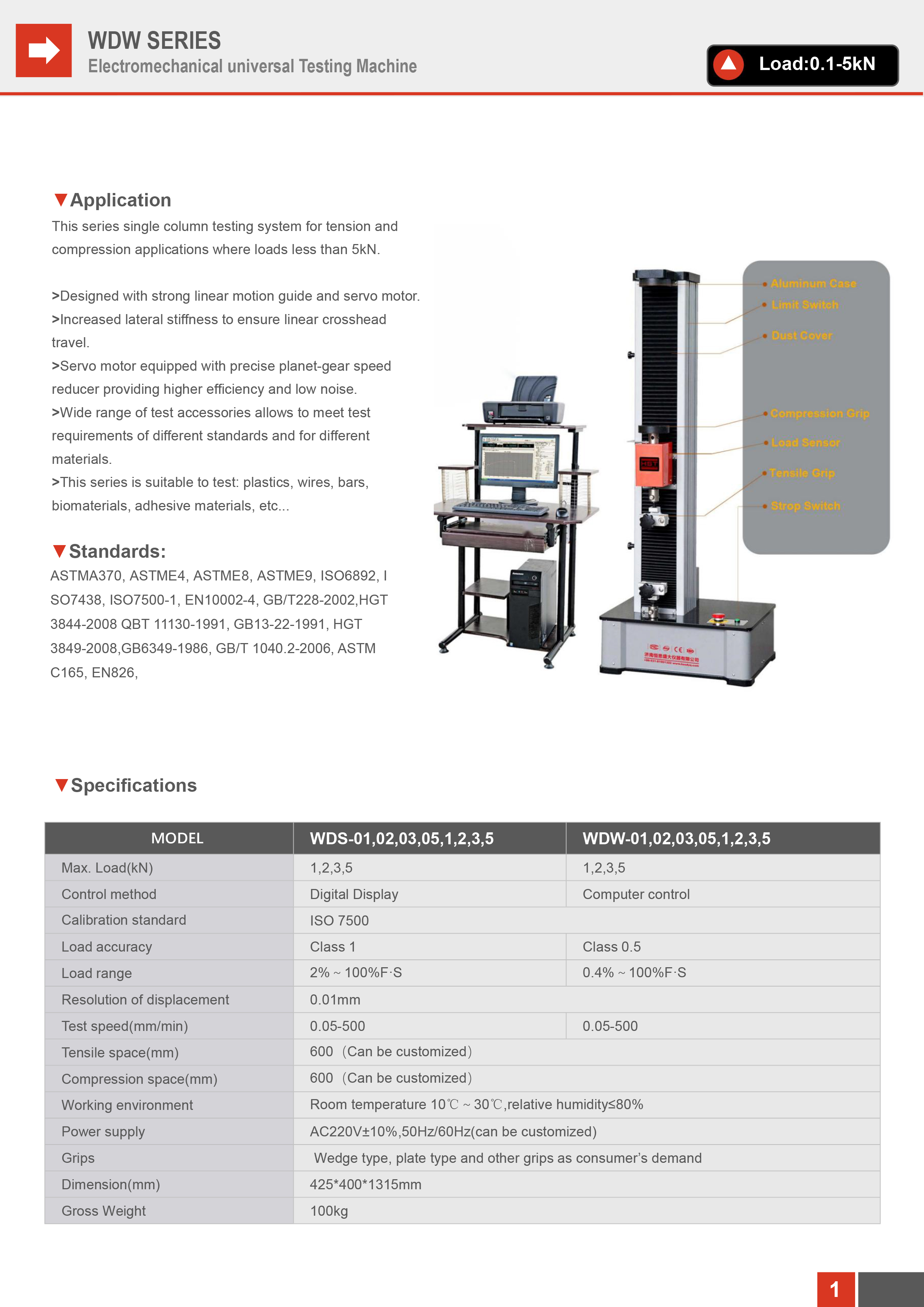

▼Application

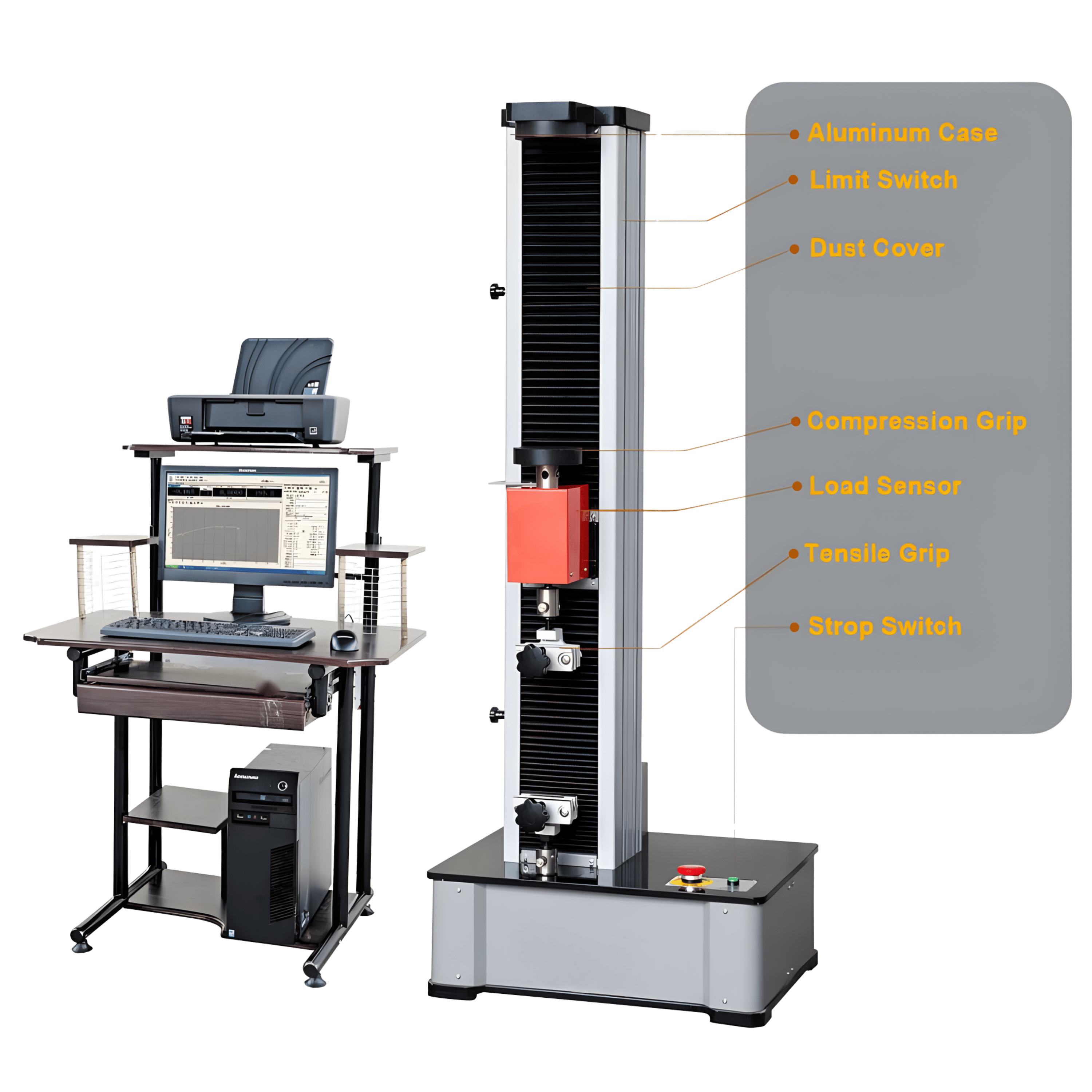

This series single column testing system for tension and compression applications where loads less than 5kN.
>Designed with strong linear motion guide and servo motor.
>Increased lateral stiffness to ensure linear crosshead travel.
>Servo motor equipped with precise planet-gear speed reducer providing higher efficiency and low noise.
>Wide range of test accessories allows to meet test requirements of different standards and for different materials.
>This series is suitable to test: plastics, wires, bars, biomaterials, adhesive materials, etc...
▼Standards :
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, I
SO7438, ISO7500-1, EN10002-4, GB/T228-2002,HGT
3844-2008 QBT 11130-1991, GB13-22-1991, HGT
3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM
C165, EN826,

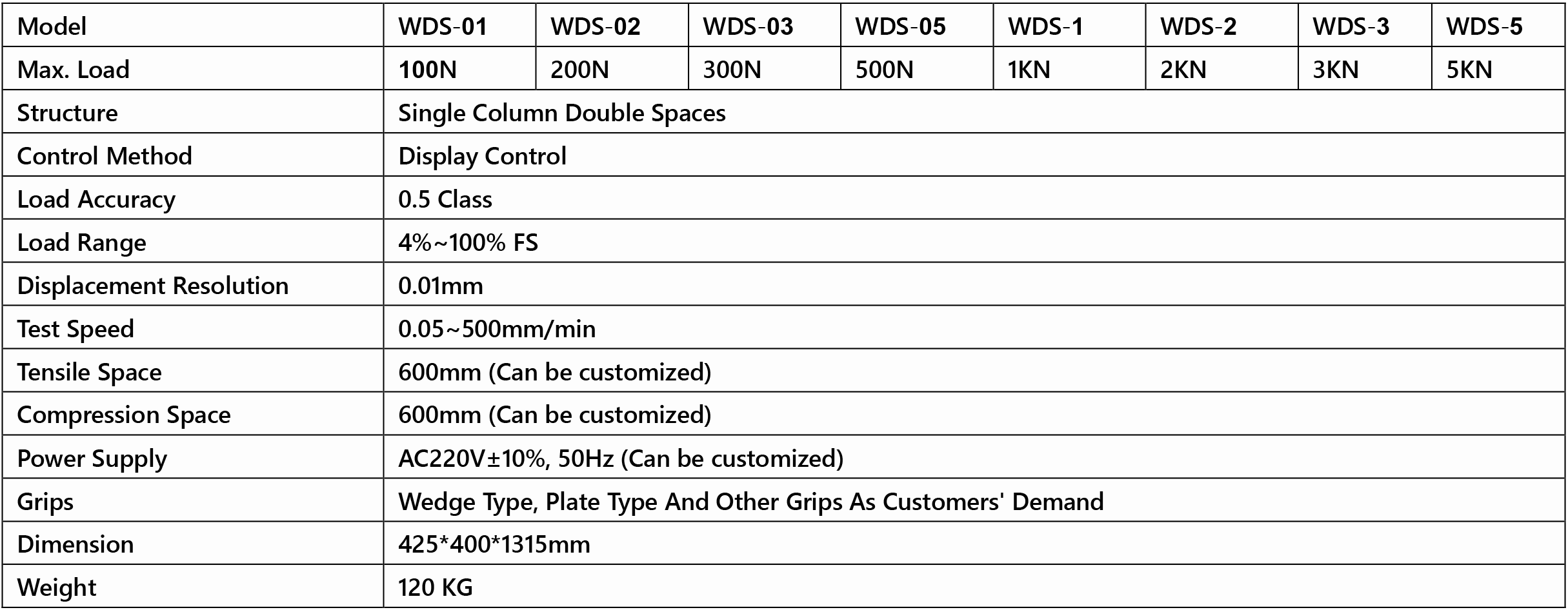

Specifications
