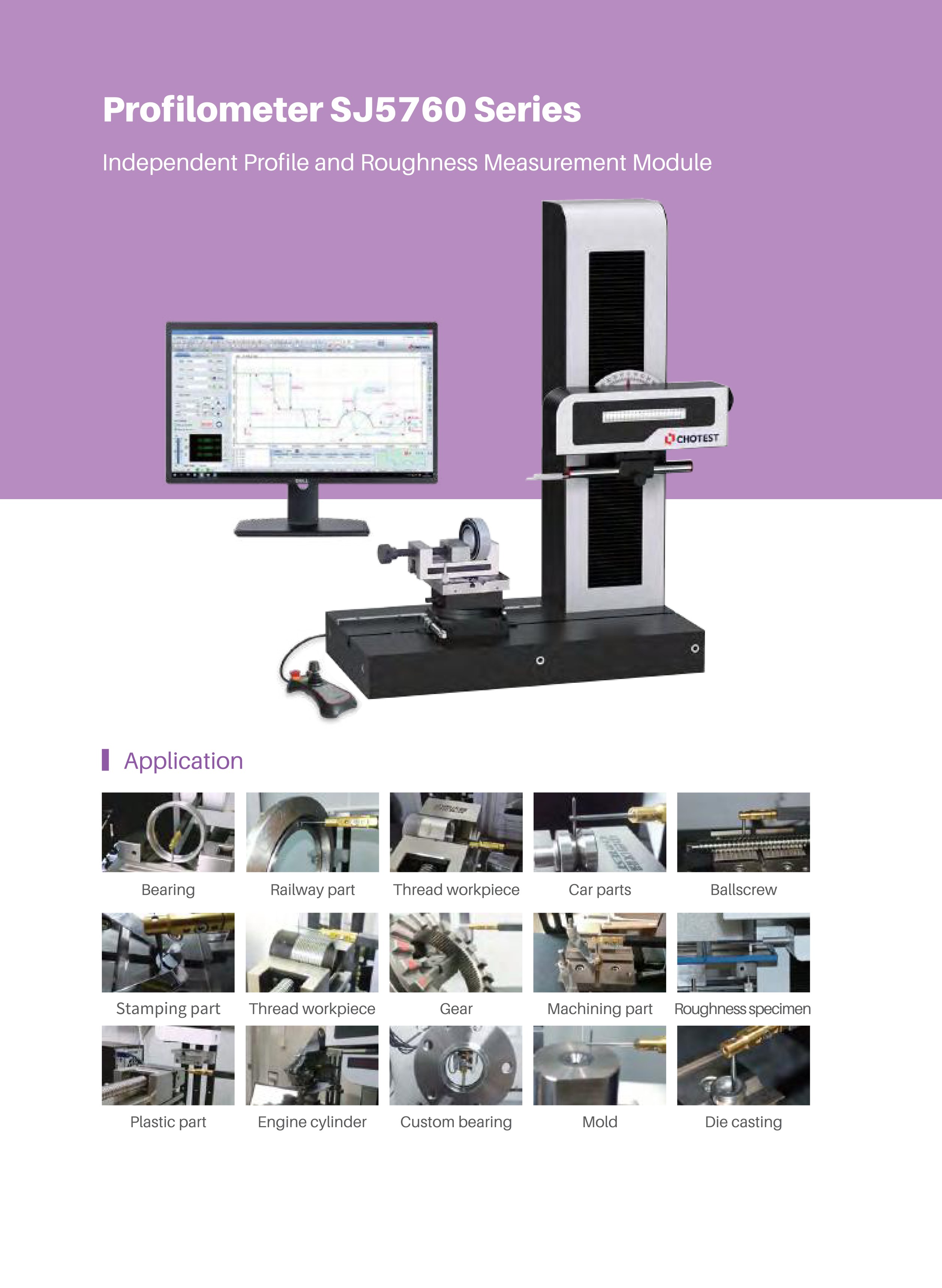

SJ5760-PR - Profilometer & Roughness measuring machine

Functions

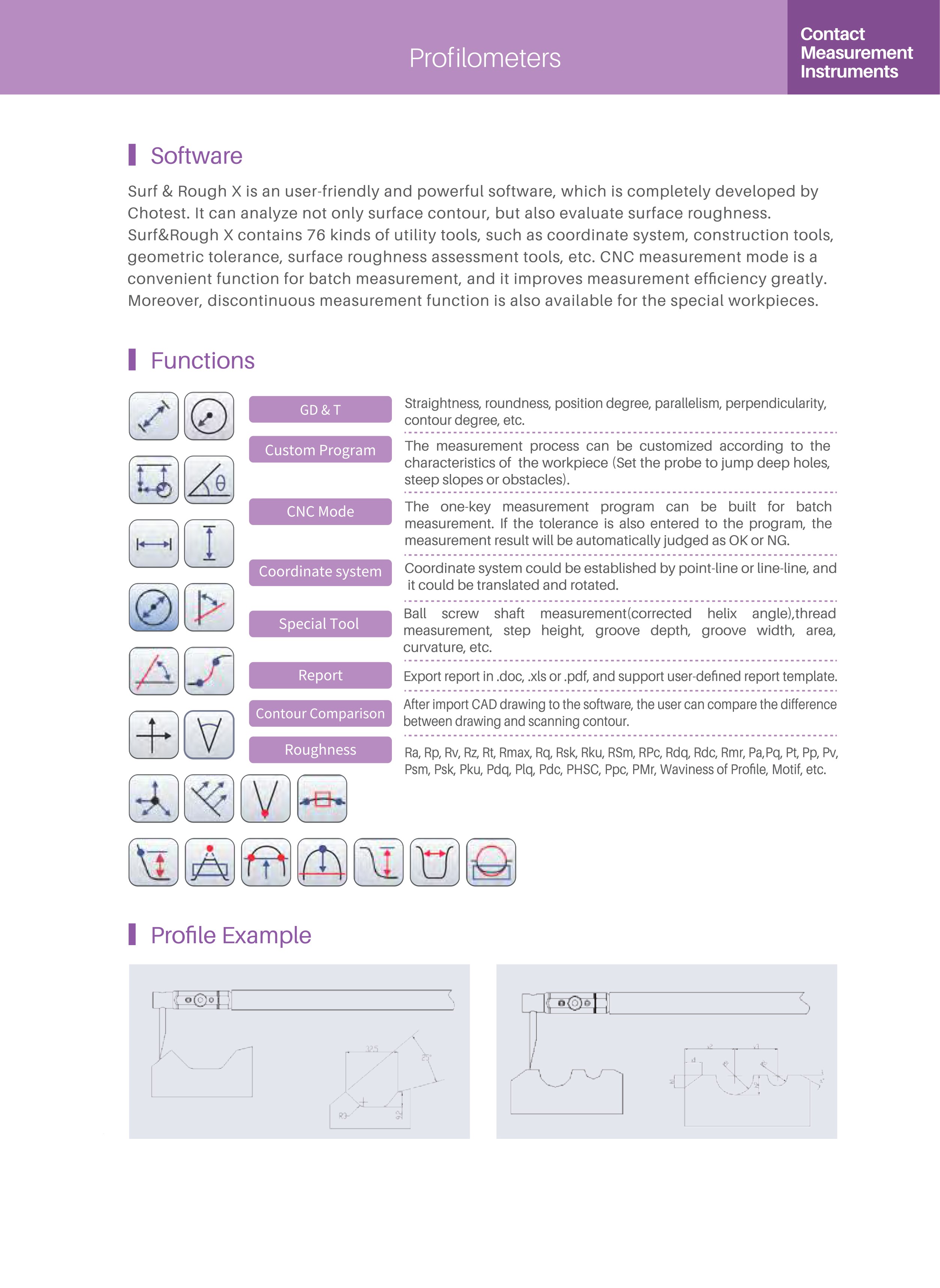

1. Surface contour evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour; More functions:

• Establish a regression line and a circle
• Establish the points, intersectant points, free points, center point, the highest point and the lowest point
• Establish the coordinate system
• Calculate the radius, distance, angle, coordinates and linear deviation
• Compare actual value with nominal value
• The measurement program runs automatically

2. SJ5701 can evaluate surface roughness: Ra, Rz, Rt, RS, RSm, Rp, Rv, Rq, Rt, Rmax, D, Rmr curve, Rdc, etc.

3. CNC Automatic mode is supported; SPC statistics and analysis are supported

4. Support to import CAD file and annotate CAD profile.

5. Support to import PDF profile data.

6. Can export test data to the Word, Excel, AutoCAD(Optional)

7. Output multiple kinds of report format, and support user-defined report, or customize report(optional)

8. Can query and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.

9. Can print multiple selected test records or test certificates from database at once time 10. User-friendly software interface 11. Data backup and restore

Features

• leading high-precision linear encoder system and high-precision inductance measurement system;
• High-precision grinding rail is made of good material with high wear resistance.
• High-performance linear motor driving system

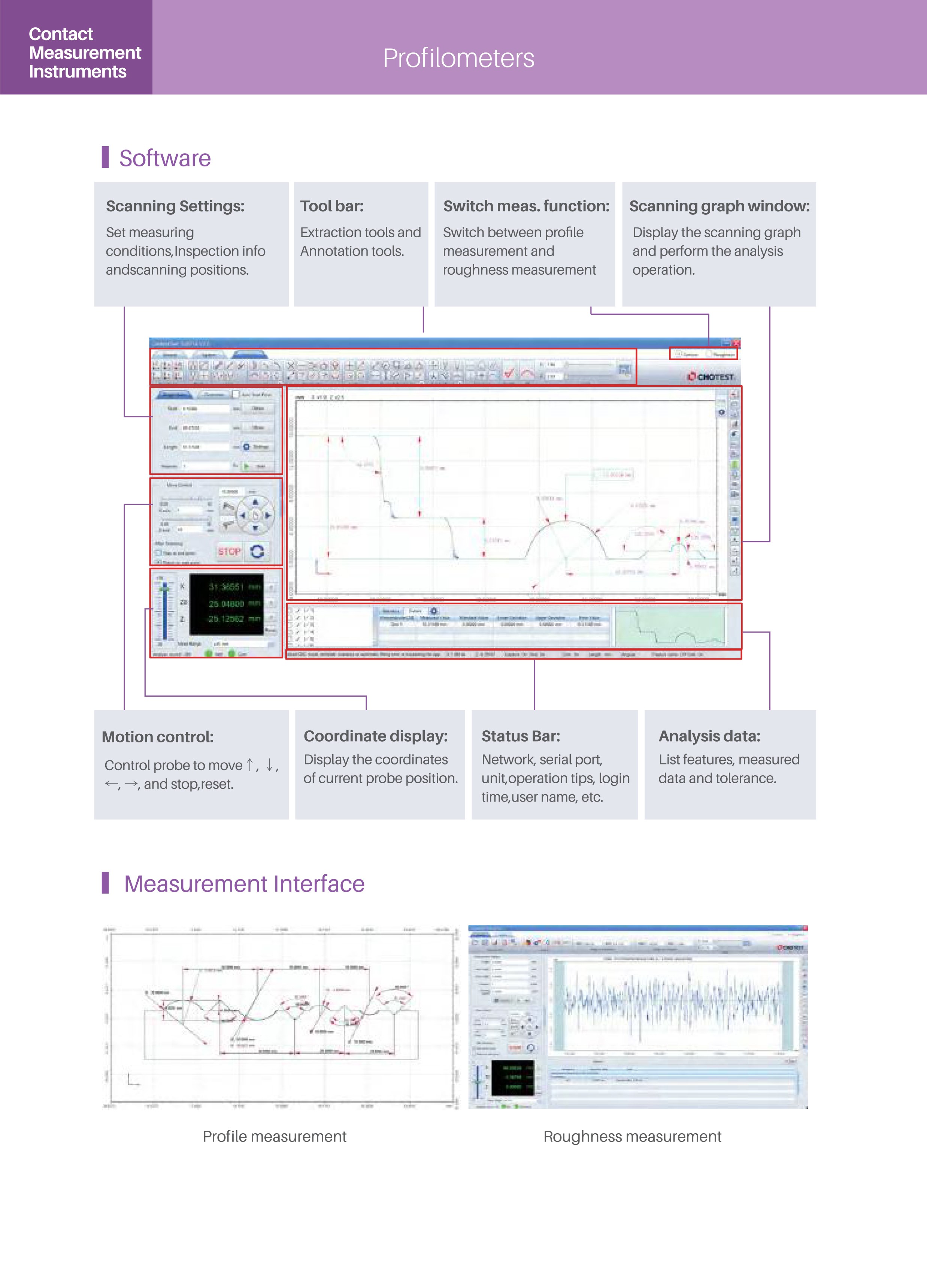

Thanks to friendly software interface, the operator can grasp the basic operation of the machine.

3. Can measure multiple parameters
Automated evaluation of roughness including Ra, Rz, Rp, Rt, etc.

4. Measuring force
Measuring force controlled by voice coil motor driving system is continuously adjustable from 10mN to 150mN, and the resolution of measuring force is 0.2mN;

5. Intelligent protection system
Once the measuring probe collides with test object / workholder, or tensile force to measuring probe is too large during scanning process, the machine will stop scanning in order to protect measuring probe and measuring system.

6. Flexible manual control
The machine is equipped with a joystick, which can be used to position the probe before measurement. The operator can control the measuring probe to move up and down, left and right quickly without the computer.

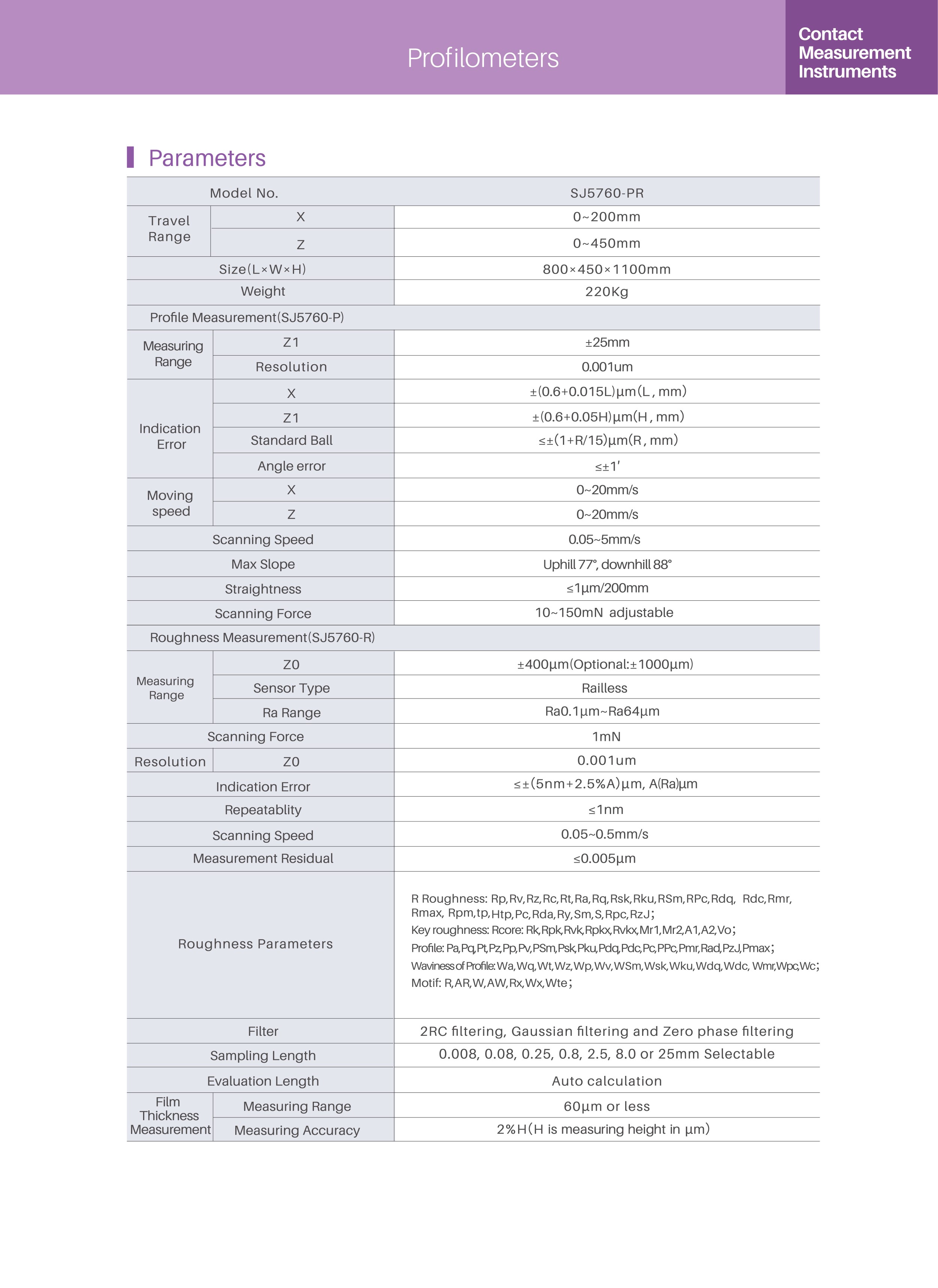

Technical Specification
