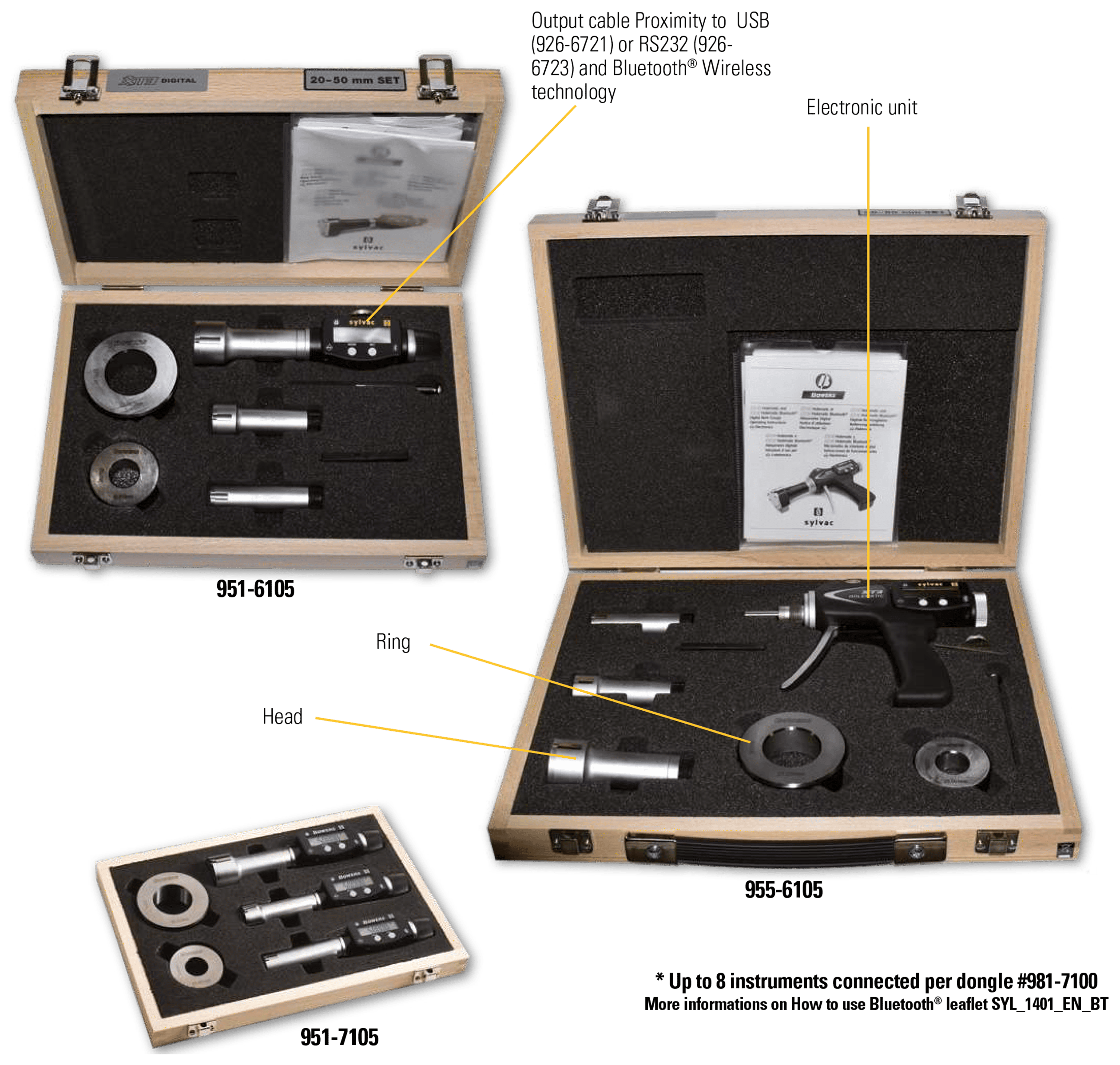

The XTH sets are delivered with the pistol type unit, the heads necessary to cover the measuring range of the set as well as the calibration rings and certificates.
The XTD sets are delivered as desired:
Together with the drum unit, the heads required to cover the range of the set, as well as the rings and calibration certificates
With a complete instrument (unit and head) for each measuring range, as well as calibration rings and certificates
Measuring range Ø 2 to 200 mm (up to Ø 300 mm on request)
Each set is delivered in a wooden box containing all items
FEATURES
Seamless data acquisition: Our bore gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.
Unmatched Accuracy: Display resolution of 0.001 mm with a digit height of 9 mm, providing precise measurements that meet the highest metrology standards.
Enhanced Measuring Capabilities: With a measuring range from 2 to 300mm and blind bore measurement capabilities from 2-6 mm and 12.5 mm, this bore gage caters to a wide range of measurement requirements, offering unparalleled adaptability.
User-Friendly & flexible Design: Interchangeable measuring heads with hard metal 2 points (Ø 2 to 6 mm) and 3 points (from Ø 6 mm) contact points, allowing you to adapt to various applications effortlessly.
Built to Last: This gauge is designed to withstand heavy-duty work with a protection rating of IP67, even when connected.
Complete Package: Each set comes with a wooden box containing all the necessary items, calibration rings, and UKAS certificates, providing everything you need for accurate measurements.
