Pre-Order

K330T - External Caliper Gauge (Electronic) 0 - 30 mm

Attribute:

"KROEPLIN" (Made in Germany) Measurement of foamed material and foils I Range 0-30 mm. & Depth 116 mm. I Flat Ø 50 mm

Brand : KROEPLIN

Share

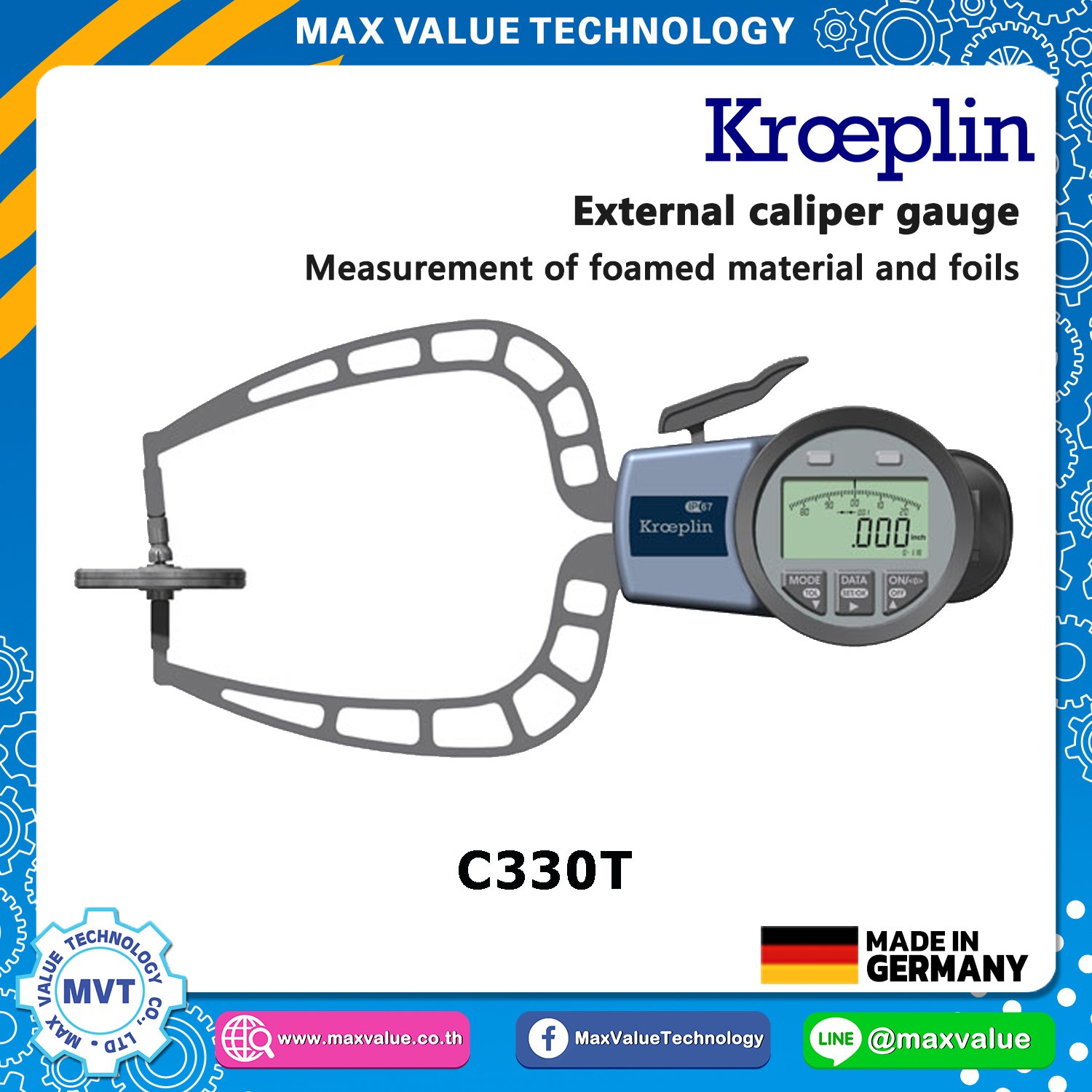

K330T - External caliper gauge

Brand : KROEPLIN (Made in Germany)

-----------------

Electronic external measuring gauge

Measurement of foamed material and foils

- Measuring range Meb: 0 – 300 mm

- Numerical interval Zw: 0,02 / 0,05mm

- Measuring depth L max.: 116 mm



  Download Data sheet



  Download Catalog KROEPLIN


Additional information - caliper gauge

Type
K330T
Display mm / inch
 mm + inch
ApplicationMeasurement of foamed material and foils
Measuring span Mes30 mm
Measuring range Meb
0 – 30 mm
Range of indication Azb0 – 30,5 mm
Numerical interval Zw  0,02 / 0,05 mm
Max. permissible errors G0,06 mm
Repeatability limit r0,04 mm
Measuring force F min.0,9 N
Measuring force F max.
Type of measuring contact movableFlat Ø 50 mm
Measuring contact movable Hb36 mm
Type of measuring contact fixedFlat Ø 50 mm
Measuring contact fixed Hf24 mm
Measuring depth max. L116 mm
Weight430 g
Protection classIP67
