D8R100 - External Caliper Gauge (Mechanical) 0-100 mm
Attribute:
"KROEPLIN" (Made in Germany) Measurement of tube wall thickness I Range 0-100 mm. & Depth 382 mm. Ball Ø 5
Categories : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of tube wall thickness ,
Brand : KROEPLIN
Share
D8R100- External caliper gauge
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical external measuring gauge
Measurement of tube wall thickness
- Measuring range Meb: 0 – 100 mm
- Numerical interval Zw: 0,1 mm
- Measuring depth L max.: 382 mm
Additional information - caliper gauge
| Type | D8R100 |
| Display mm / inch | mm |
| Application | Measurement of tube wall thickness |
| Measuring span Mes | 100 mm |
| Measuring range Meb | 0 – 100 mm |
| Range of indication Azb | 0 – 101 mm |
| Numerical interval Zw | 0,1 mm |
| Max. permissible errors G | 0,15 mm |
| Repeatability limit r | 0,1 mm |
| Measuring force F min. | 0,8 N |
| Measuring force F max. | 8 N |

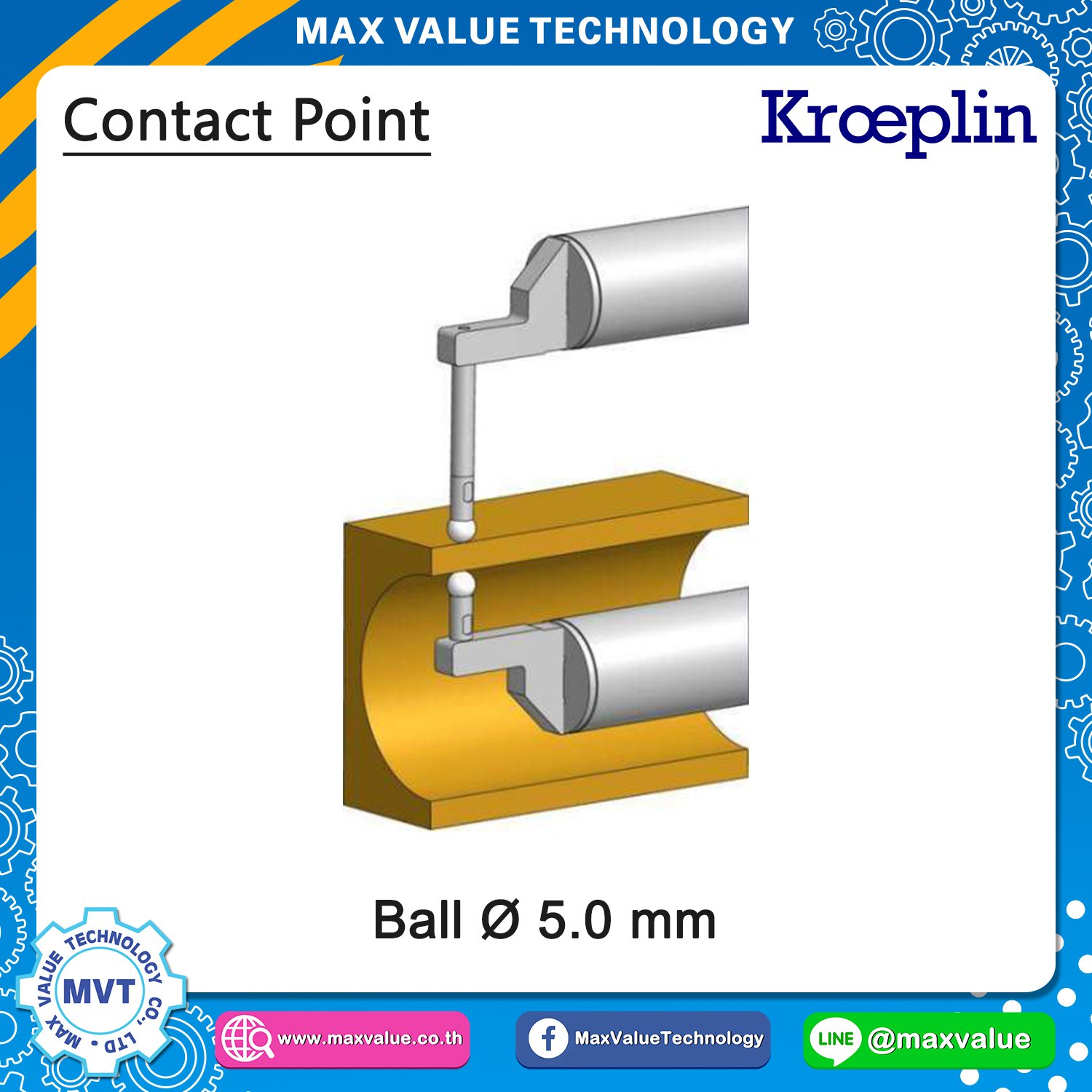

| Type of measuring contact movable | HM-Ball Ø 5 mm |
| Measuring contact movable Hb | 35 mm |
| Type of measuring contact fixed | HM-Ball Ø 5 mm |
| Measuring contact fixed Hf | 15 mm |
| Measuring depth max. L | 382 mm |
| Weight | 600 g |
| Protection class | IP67 |
