D110S - External Caliper Gauge (Mechanical) 0-10 mm
Attribute:
"KROEPLIN" (Made in Germany) Measurement of grooves and thickness I Range 0-10 mm. & Depth 35 mm. Chisel R 0.4
Categories : Metrology Product , Caliper Gauge , External Caliper Gauge , Measurement of grooves and thickness ,
Brand : KROEPLIN
Share

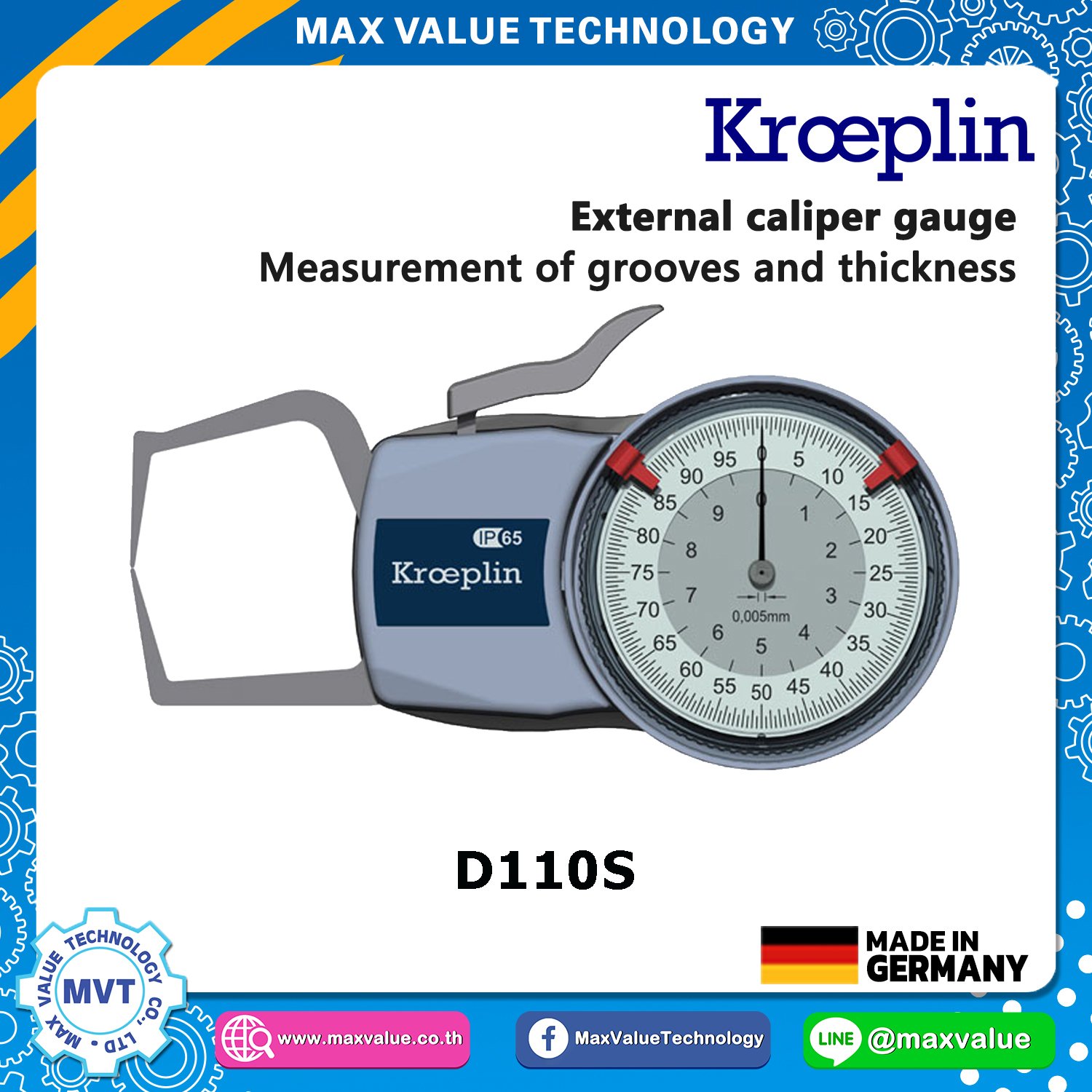

D110S - External caliper gauge
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical external measuring gauge
Measurement of grooves and thickness
- Measuring range Meb: 0 – 10 mm
- Numerical interval Zw: 0,005 mm
- Measuring depth L max.: 35 mm
Additional information - caliper gauge
| Type | D110S |
| Display mm / inch | mm |
| Application | External measurement |
| Measuring span Mes | 10 mm |
| Measuring range Meb | 0 – 10 mm |
| Range of indication Azb | 0 – 10,5 mm |
| Numerical interval Zw | 0,005 mm |
| Max. permissible errors G | 0,015 mm |
| Repeatability limit r | 0,005 mm |
| Measuring force F min. | 1,2 N |
| Measuring force F max. | |
| Type of measuring contact movable | Chisel R 0,4 mm |
| Measuring contact movable Hb | 19,1 mm |
| Type of measuring contact fixed | Chisel R 0,4 mm |
| Measuring contact fixed Hf | 18,6 mm |
| Measuring depth max. L | 35 mm |
| Weight | 170 g |
| Protection class | IP67 |
