G16200 - Internal Caliper Gauge (Electronic) 200-400 mm

Attribute:

"KROEPLIN" (Made in Germany) Caliper Gauge Internal measurement I Range 200-400 mm. & Depth 746 mm. Hemisphere SR 20

Brand : KROEPLIN

Share

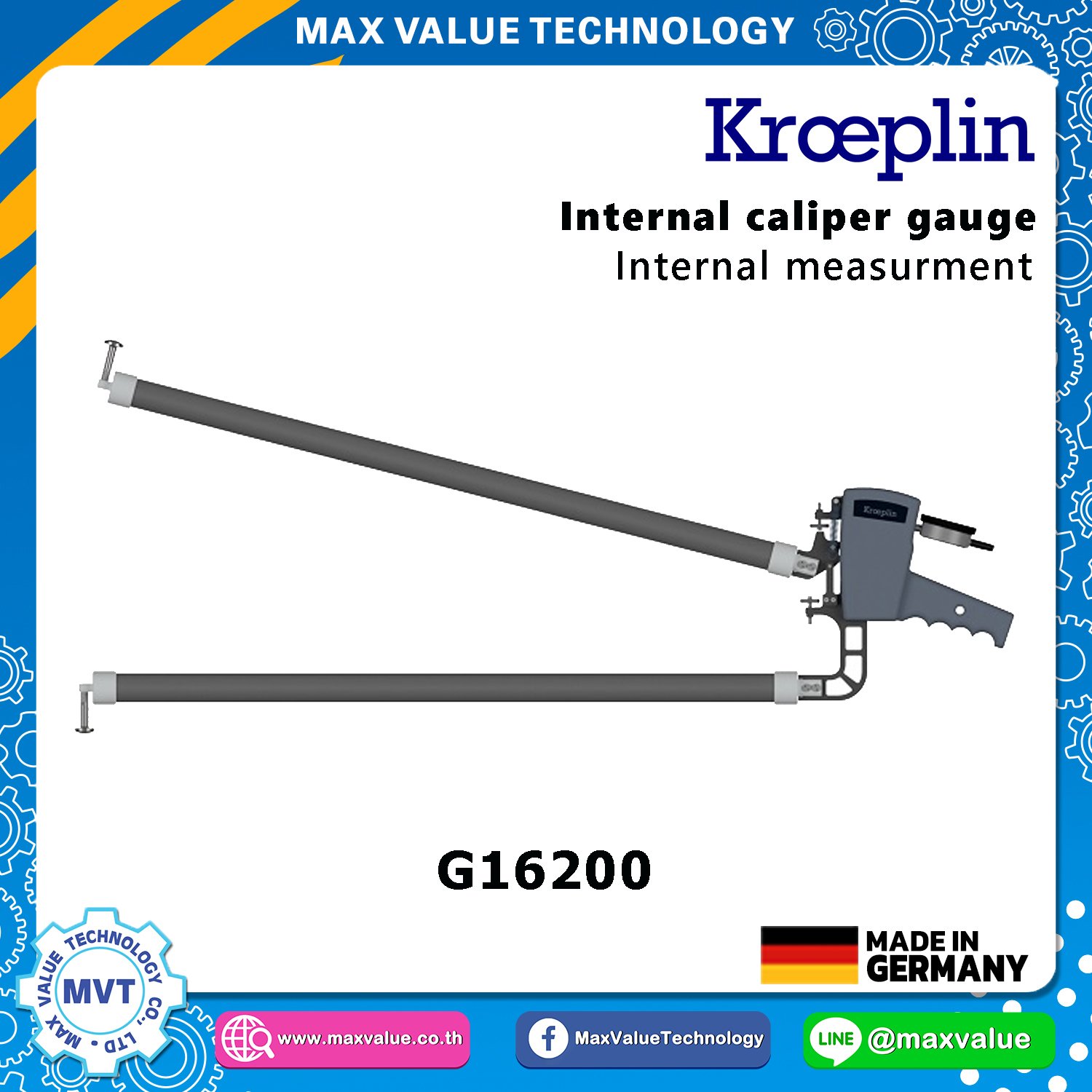

G16200 - Internal caliper gauge

Brand : KROEPLIN (Made in Germany)

-----------------

Electronic internal measuring gauge

Caliper Gauge Internal measurement

- Measuring range Meb:  200 – 400 mm

- Numerical interval Zw: 0,2 mm

- Measuring depth L max.: 746  mm



  Download Data sheet

  Download Catalog KROEPLIN



Additional information - caliper gauge

Type
G16200
Display mm / inch
mm+ inch
ApplicationInternal measurement
Measuring span Mes200 mm
Measuring range Meb
200 – 400 mm
Range of indication Azb199 – 401 mm
Numerical interval Zw0,2 mm
Max. permissible errors G0,4  mm
Repeatability limit r0,2 mm
Measuring force F min.0,7 N
Measuring force F max.
Type of measuring contact movableHemisphere SR 20 mm
Measuring contact movable Hb29,5  mm
Type of measuring contact fixedHemisphere SR 20 mm
Measuring contact fixed Hf
Measuring depth max. L746 mm
Weight1200 g
Protection classIP67
