"KROEPLIN" (Made in Germany) Caliper Gauge Internal measurement I Range 2.5–12.5 mm. & Depth 12 mm. Chisel R 0.12
Categories : Metrology Product , Caliper Gauge , Internal Caliper Gauge , Caliper Gauge Internal measurement ,
Brand : KROEPLIN
Share

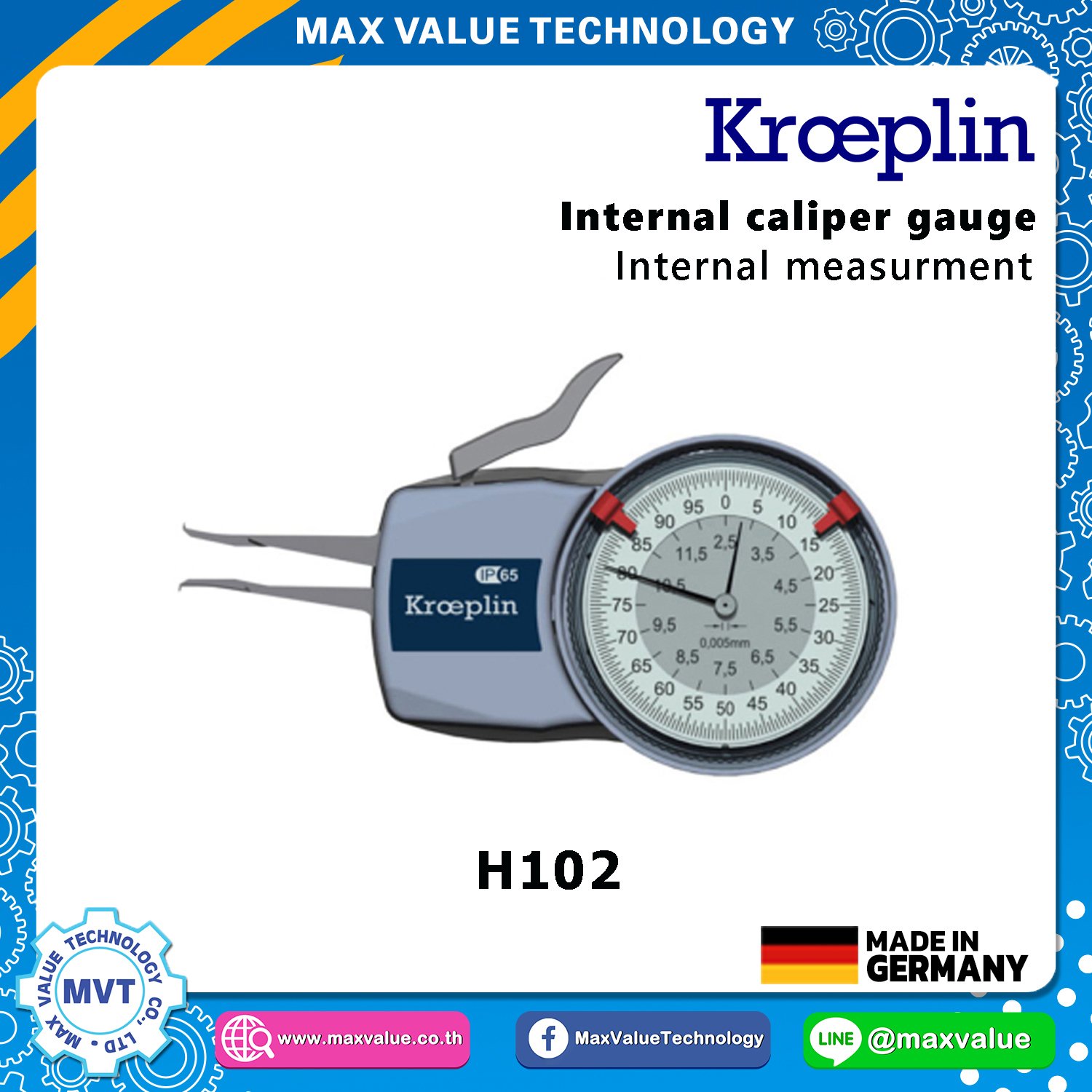

H102 - Internal caliper gauge
Brand : KROEPLIN (Made in Germany)
-----------------
Mechanical internal measuring gauge
Caliper Gauge Internal measurement
- Measuring range Meb: 2,5 – 12,5 mm
- Numerical interval Zw: 0,005 mm
- Measuring depth L max.: 12 mm
Additional information - caliper gauge
| Type | H102 |
| Display mm / inch | mm |
| Application | Internal measurement |
| Measuring span Mes | 10 mm |
| Measuring range Meb | 2,5 – 12,5 mm |
| Range of indication Azb | 2,4 – 12,8 mm |
| Numerical interval Zw | 0,005 mm |
| Max. permissible errors G | 0,015 mm |
| Repeatability limit r | 0,2 mm |
| Measuring force F min. | 0,8 N |
| Measuring force F max. | 1,2 N |
| Type of measuring contact movable | Chisel R 0,1 mm |
| Measuring contact movable Hb | 0,9 mm |
| Type of measuring contact fixed | Chisel R 0,1 mm |
| Measuring contact fixed Hf | 0,9 mm |
| Measuring depth max. L | 12 mm |
| Weight | 155 g |
| Protection class | IP67 |
