Dial Gauge - MU52 STd (0.01/10 mm )


Precision dial gauge (0.01/10 mm.) MU52 STd - shockproof with Lug back | Metal Bezel

Brand : KAFER


Precision Dial Gauges | metric

MU 52 STd  - Shockproof with Lug back | Metal bezel

Brand : Kaefer (Germany made)

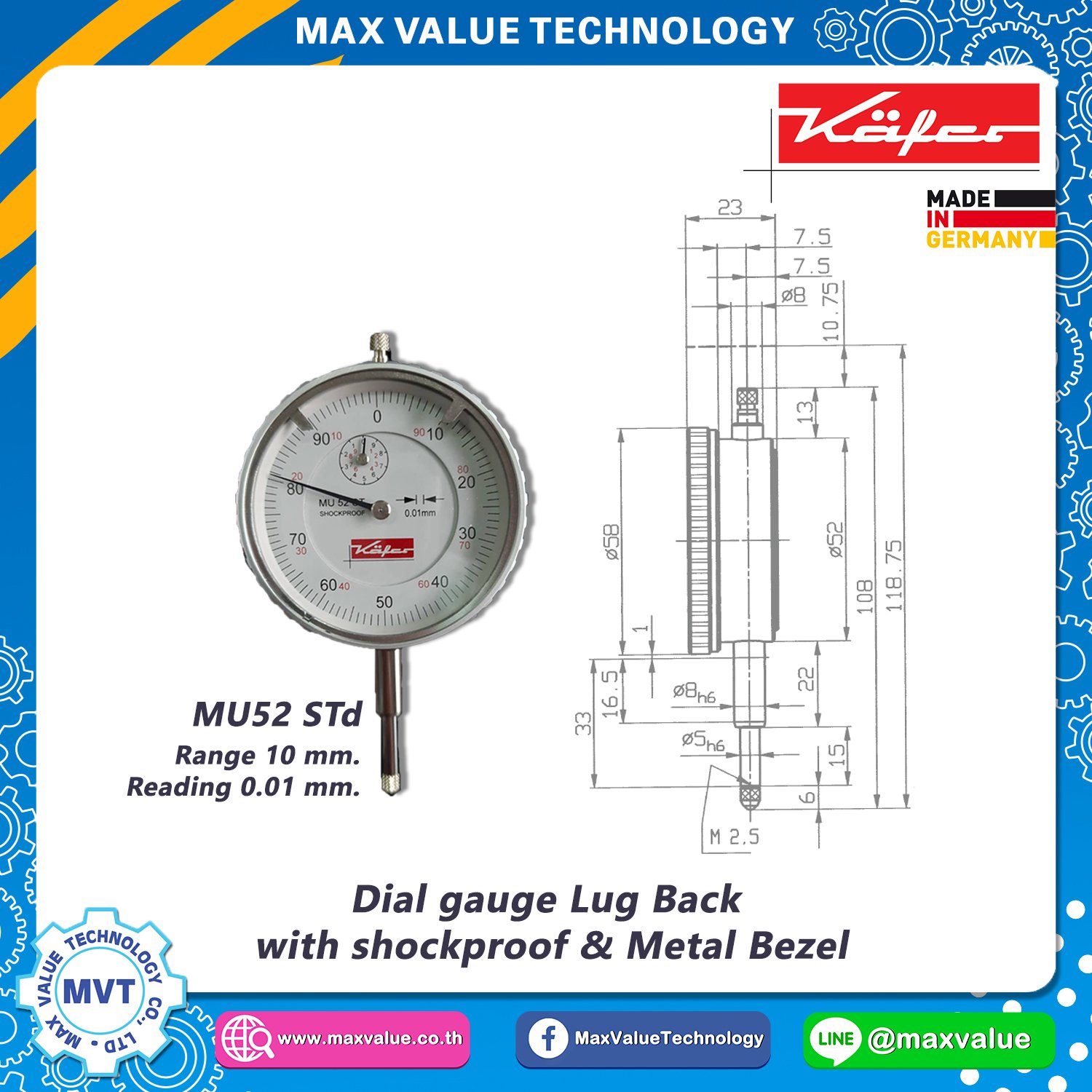

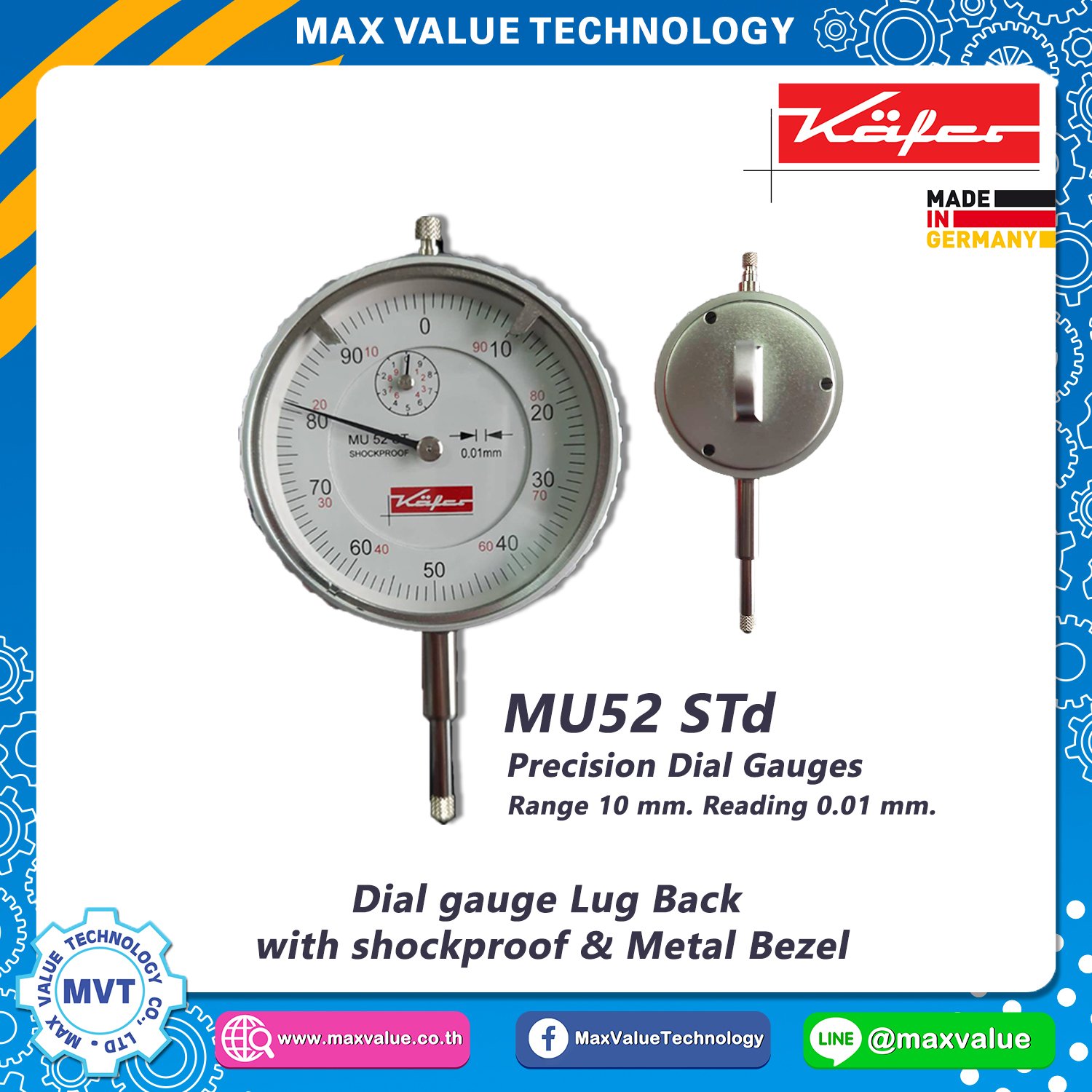

Precision Dial Gauge MU 52 STd shockproof - Lug back
Reading0.01 mm
Range10 mm
Range per revolution1 mm
Bezel-Ø58 mm
Stem-Ø8 h 6
Dimensions and accuracy according toDIN EN ISO 463 /
manufacturing standard 1.0200.9.0014
Initial measuring force0.8 N ± 20%
Additional EquipmentLug Back
Special fittings
  • Mineral glass disc
  • Metal bezel
  • Metal back
  • Fixing screw for the bezel
