Portable stroboscope RT STROBE super qbLED
Attribute:
In order to make use of the laser function you first need to apply a reflective mark on the object to be measured. Point the stroboscope to the rotating object. The rotational speed is measured with the help of the laser beam’s reflection.
Categories : Inspection Product , Rotational Speed Measurements , Portable Stroboscopes ,
Brand : RheinTacho
Share

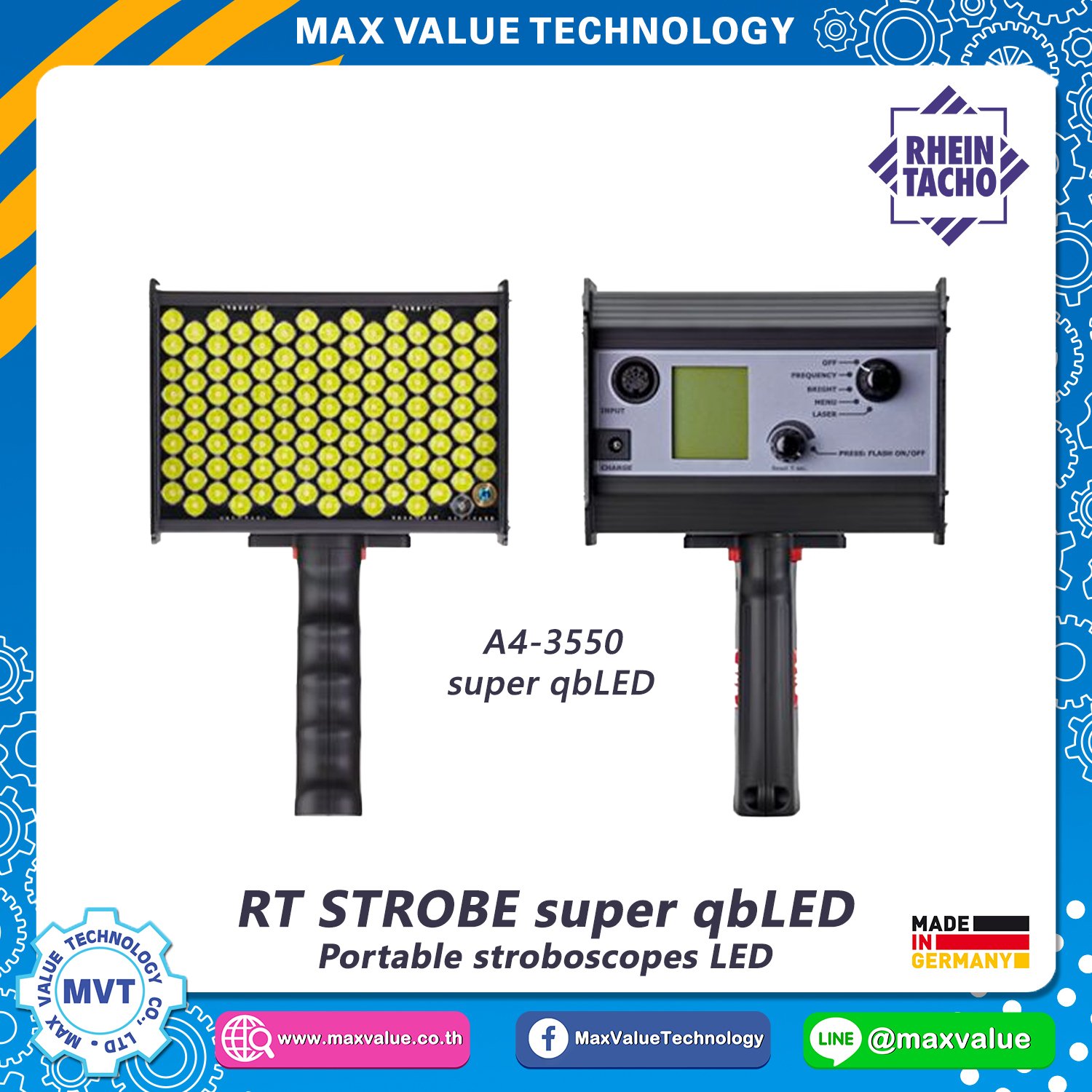

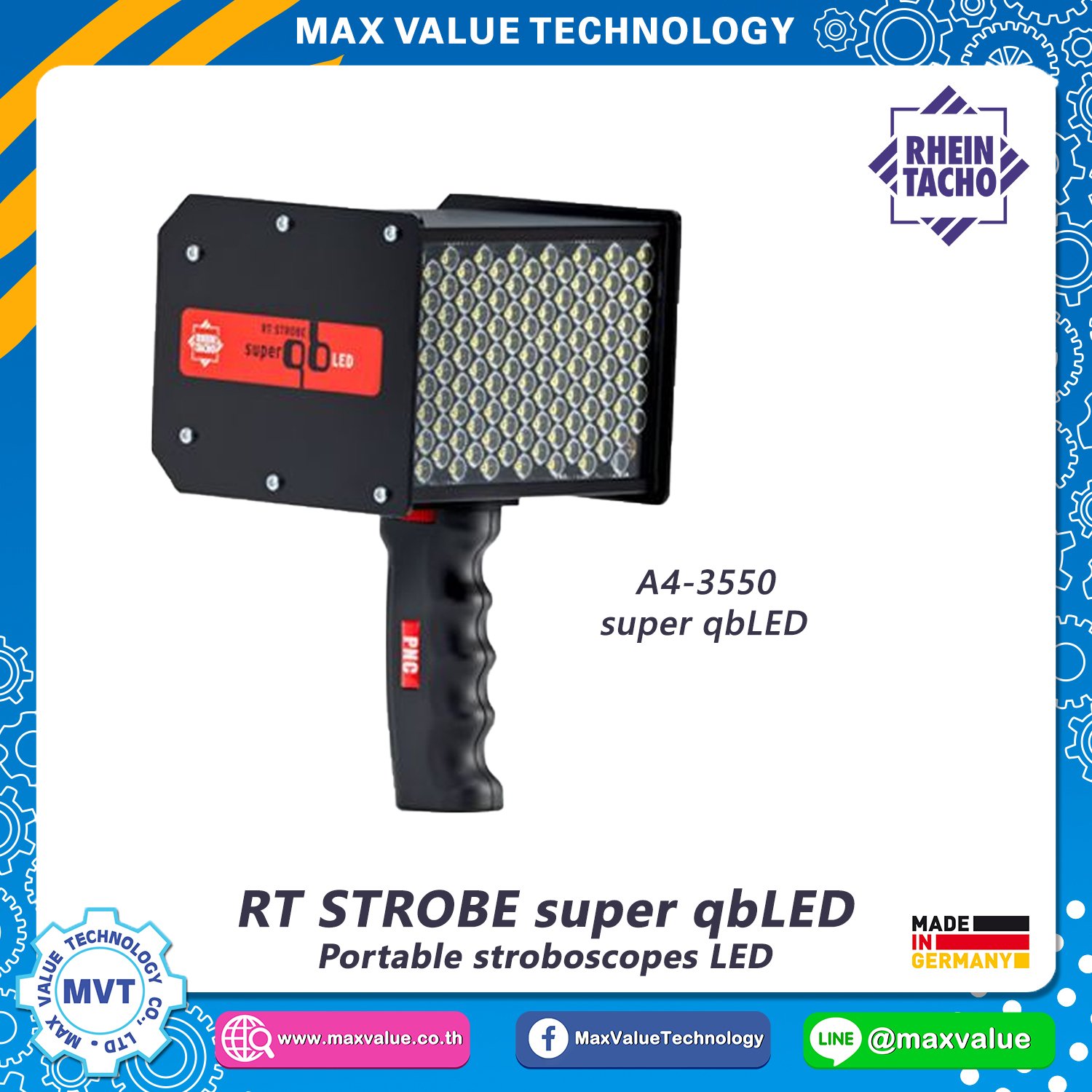

Portable stroboscope RT STROBE super qbLED
Brand : RHEINTACHO
---------------------------------------
Product Feature :
The RT STROBE super qbLED version with its very robust, impact-resistant plastic housing, constitutes a world-first. 118 long-life, high-performance LEDs ensure an exceptional illumination area. It is the first measuring device of its kind to be equipped with an auto-sync laser function. This allows for the synchronisation frequency to be determined very quickly, without manual adjustment or external sensor signals. Furthermore, the additionally generated value guarantees absolute measuring certainty.
In order to make use of the laser function you first need to apply a reflective mark on the object to be measured. Point the stroboscope to the rotating object. The rotational speed is measured with the help of the laser beam’s reflection.
The knobs allow the user to easily adjust the flash sequence, phase-shift, brightness or delay time between flash and trigger signal.
Technical shot data :
| Number of LEDs | 118 |
| Frequency range | 30 ... 300,000 FPM |
| Light intensity max. | 6,500 LUX @ 1° / 30 cm |
| Flash duration | adjustable |
| Power supply | Integrated lithium-ion batteries for up to 7 hours continuous use |
Scope of delivery :
| A4-3550 |
| Stroboscope RT STROBE qbLED |
| Operating instructions |
| Calibration certificate |
| Charger with connector set |
| 1 DIN plug 5-pin for trigger input and/or power |
| Reflective tapes |
| Handle |
| Case |
Catalogue :
Brochure RT STROBE super qbLED
Video :
