A3 - Portable Measuring Arm

Attribute:

"TRIMOS" 3D - Portable articulated arm A3-1300 and A3-1800

Share

Brand : TRIMOS

Share

PORTABLE MEASURING ARM A3

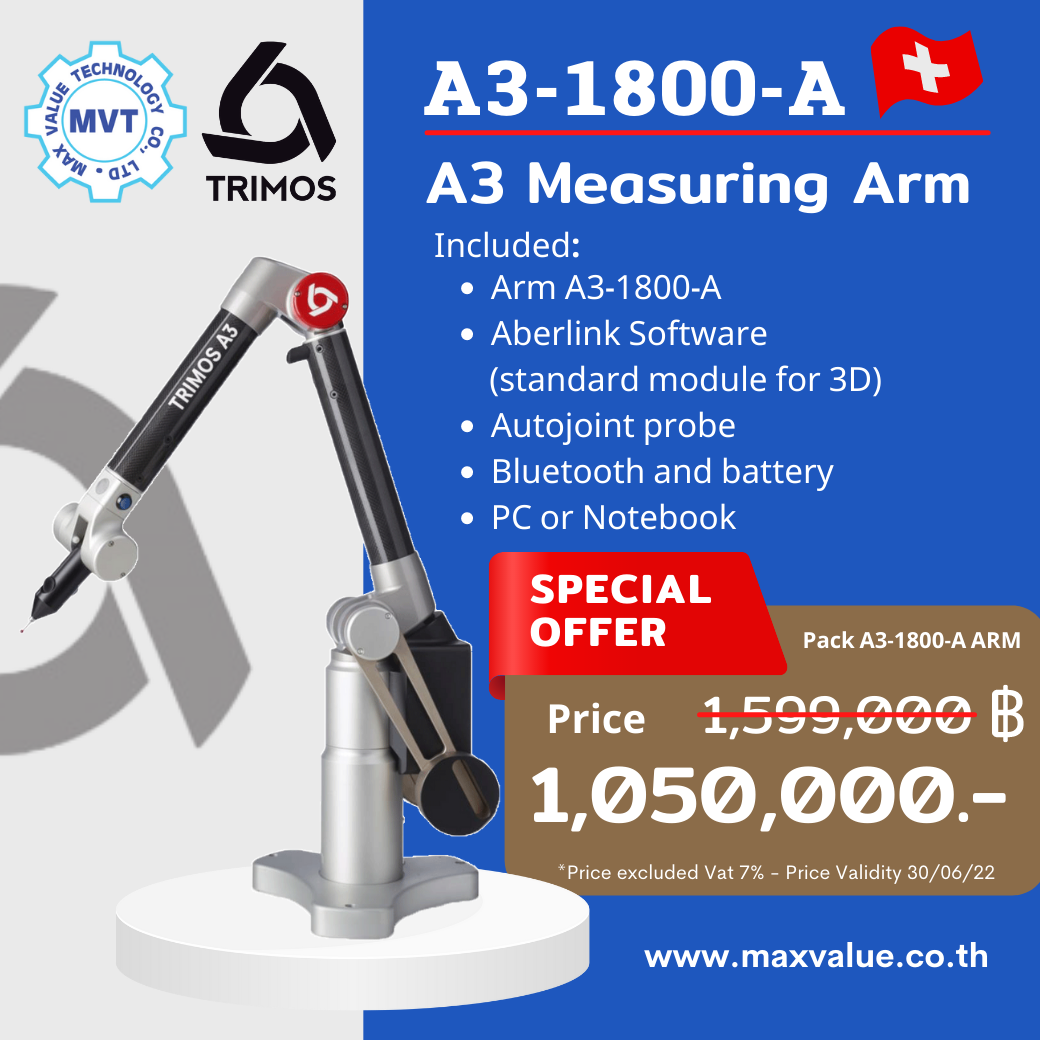

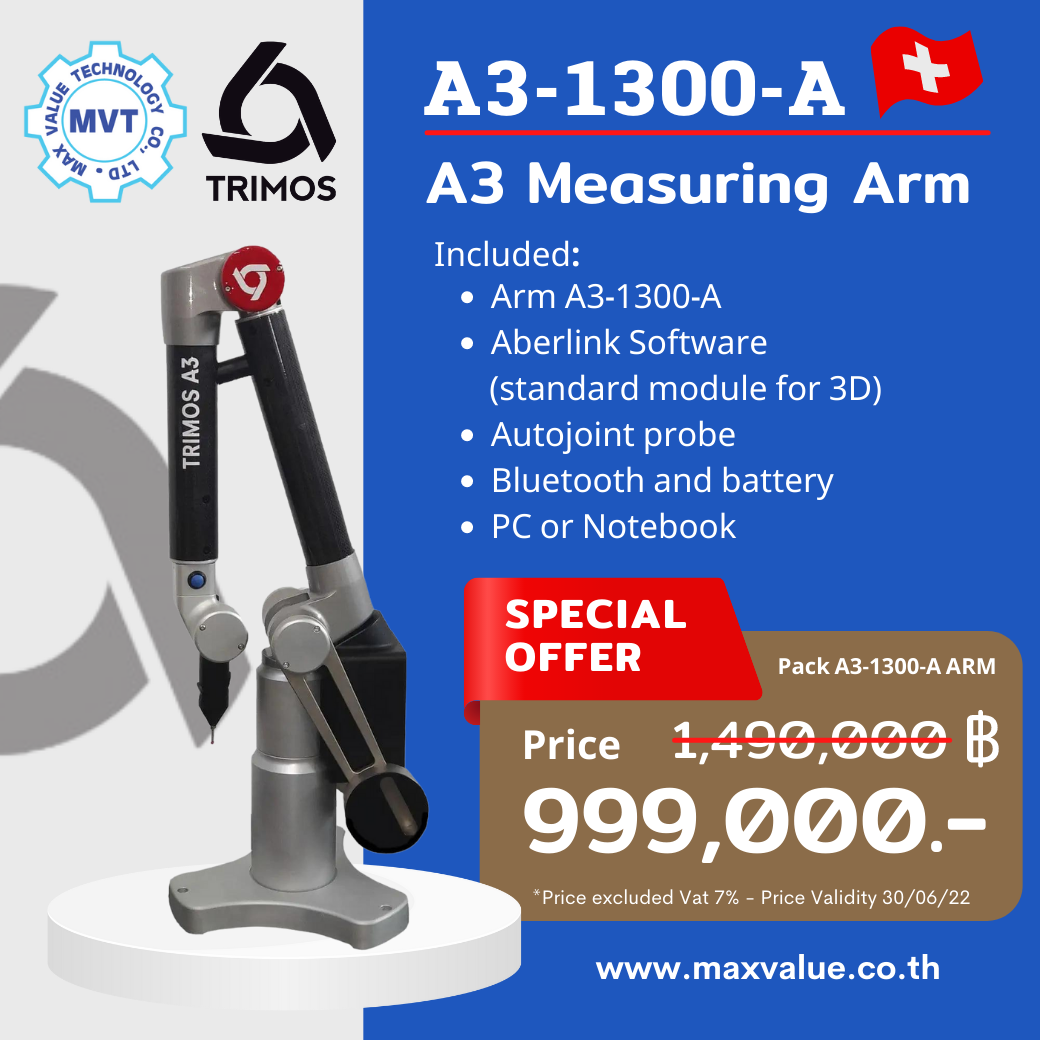

A3-1300 and A3-1800

Extremely easy and accurate 3D measurement for quality control, inspection, or verification of small and large size parts.

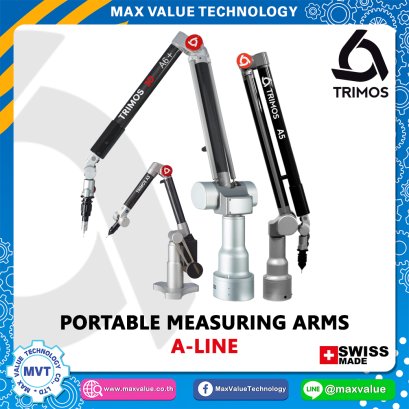

Trimos A-line portable articulated measuring arms allow an extremely easy and accurate 3D measurement.

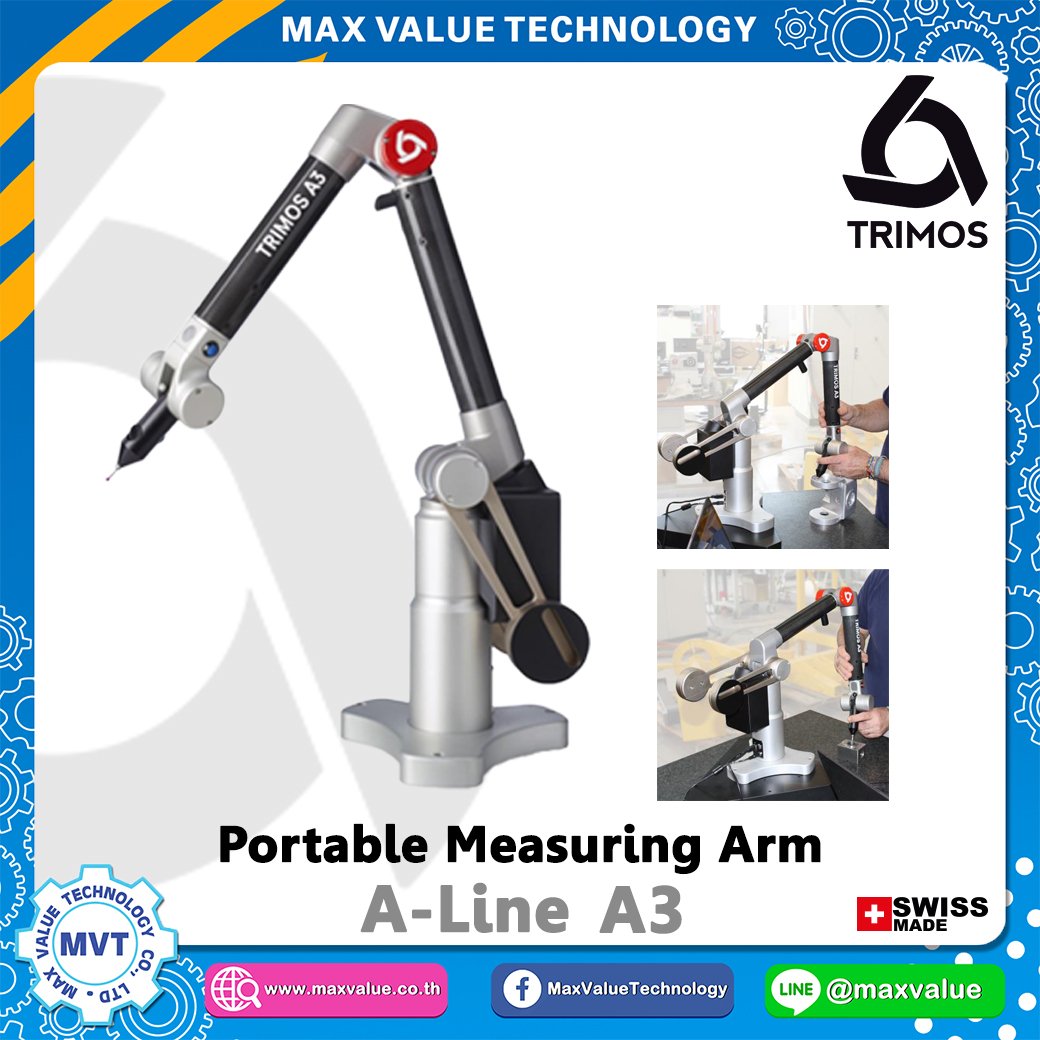

The A3 is the newest model of the Trimos A-line portable articulated
measuring arms.

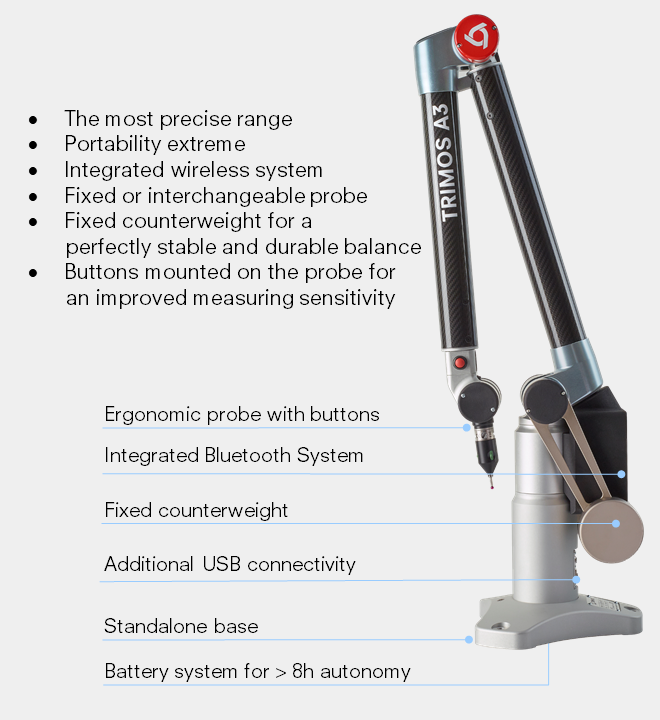

With its extremely easy use, flexibility and accurate 3D measurements, the A3 allows the quality control, inspection and verification of small and large size parts. The 6-axis configuration arm is available at 1300 mm and 1800 mm measuring range. The carbon fiber tubes and aluminum mount base allow to the A3 arm an extremely stable and light structure. With its mass counterbalance an excellent handling experience is guaranteed.

  • Measuring ranges up to 1800 mm
  • Extremely easy to use, portable and compact measuring instrument
  • 6 axis configurations
  • Tubes in carbon fiber
  • Mechanical probe with ruby stylus sphere, Diameter 4 mm
  • Internal temperature sensor
  • Connection by cable or Wireless
  • Diameter 20 mm calibrated sphere with magnetic support
  • Compatibility with Renishaw autojoint.
