Digital scales S_Scale EVO Smart
Attribute:
Digital scales with integrated Bluetooth® system
Categories : Metrology Product , Small & Mid Size Instrument ,
Brand : SYLVAC
Share

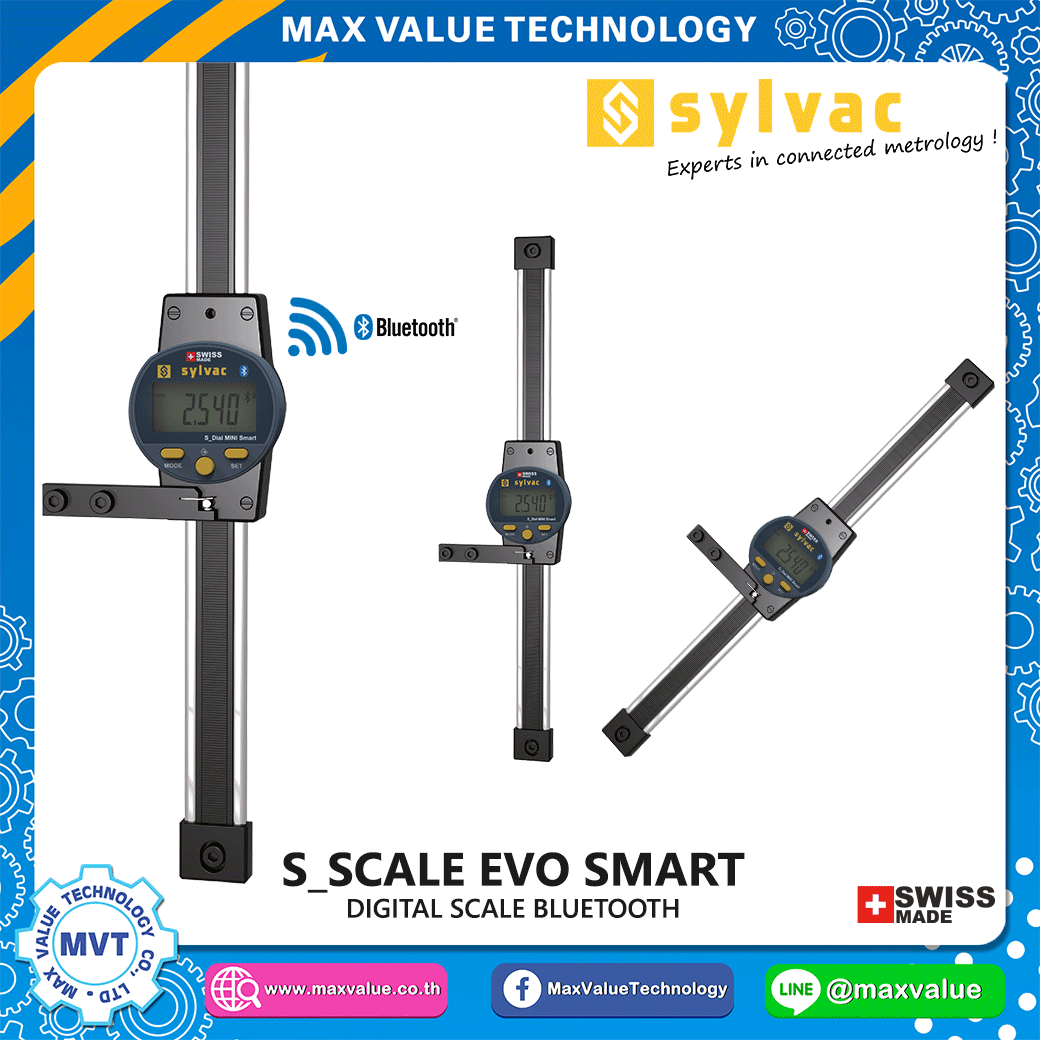

Digital scales S_Scale EVO Smart
Brand : SYLVAC (swiss made )
---------------------------------------
DESCRIPTION
- Digital scales with integrated Bluetooth® system.
- Housing Ø 45 mm rotatable by 270° for horizontal or vertical use.
- Flat pole 20 x 5 mm in hardened and ground stainless steel.
- Digital display resolution 0.01 mm.
- Three buttons, including the central button with selectable favourite function.
- Supplied with a drive bar that can be positioned at the top or bottom of the display.
- Measuring range 150, 200, 300 and 600 mm.
- Additional data output «Power», works without battery when connected via this cable.
- IP54 protection.
TECHNICAL SPECIFICATIONS
| 816-1615 | 816-1620 | 816-1630 | 816-1660 | |
| Measuring range mm | 150 | 200 | 300 | 600 |
| Type | H / V | H / V | H / V | H / V |
| Max. Error µm | 20 | 20 | 30 | 30 |
| Repeatability µm | 10 | 10 | 10 | 10 |
| Resolution mm | 0.01 | 0.01 | 0.01 | 0.01 |
| A mm | 185 | 235 | 335 | 665 |
| B mm | 282 | 332 | 432 | 762 |
| C mm | 298 | 348 | 448 | 778 |
| Output data | Bluetooth® wireless technology* / USB / RS232 | |||
| Selection of measuring direction | • | |||
| PRESET function | • | |||
| 2 references | • | |||
