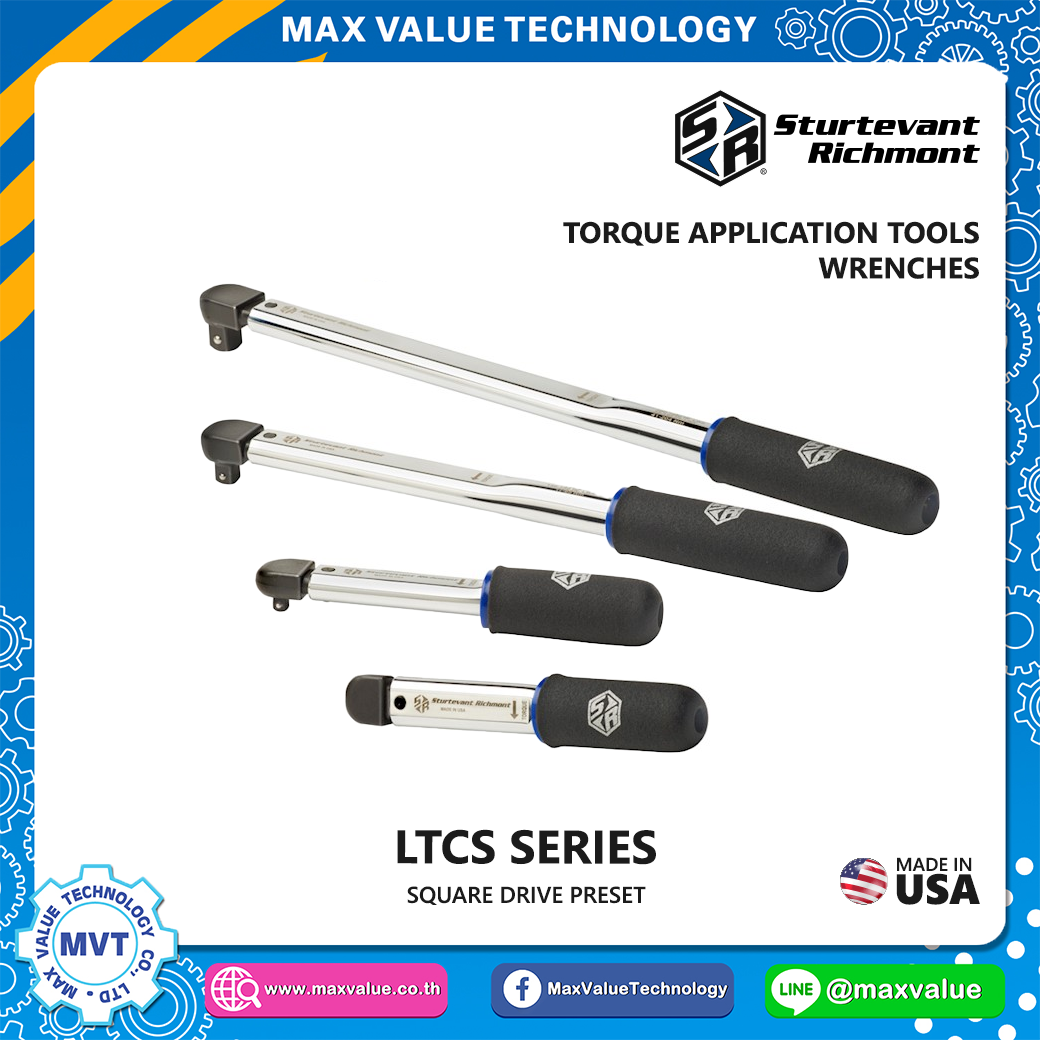

LTCS Series - Preset Fixed Square Drive Clicker-Type Torque Wrenches


A practical, cost-effective assembly line option when a LTCS with a socket can be used! (Highly accurate (+/- 4%))

Brand : SR-Torque



Square Drive Preset

Brand : SR Torque (USA made)


  • This is wrench is identical to the LTCR wrench except it is built with a fixed square drive.
  • Adjustments to torque settings can only be made with a Combination Adjusting and Release Tool (CART) to prevent tampering on the production line.

LTCS Fixed Male Square Drive Head Series

Part No.ModelTorque CapacitySquare
A (in.)B (in.)C (in.)D (in.)Weight
810168LTCS 50 I10 in lb-50 in lb / 1.2 Nm-6 Nm1/4”7 1⁄231⁄3255⁄6415⁄160.5
810170LTCS 150 I30 in lb-150 in lb / 3.4 Nm-17 Nm3/8”7 1⁄231⁄321 1⁄3215⁄160.5
810171LTCS 300 I60 in lb-300 in lb / 6.8 Nm-34 Nm3/8”9 29⁄6431⁄321 1⁄3215⁄161.0
810172LTCS 750 I150 in lb-750 in lb / 17 Nm-85 Nm3/8”13 25⁄6431⁄321 9⁄6415⁄161.25
810174LTCS 1800 I360 in lb-1800 in lb / 40.8 Nm-204 Nm1/2”16 61⁄6431⁄321 15⁄6415⁄161.5
810485LTCS 3600 I720 in lb-3600 in lb / 80.14 Nm-407 Nm3/4”25 15⁄321 1⁄21 29⁄6425.5
810153*LTCS 7200 I1400 In lb-7200 In lb / 162.6 Nm-813 Nm3/4”35 5⁄641 1⁄21 29⁄6428.25

 Cataloge LTCS
