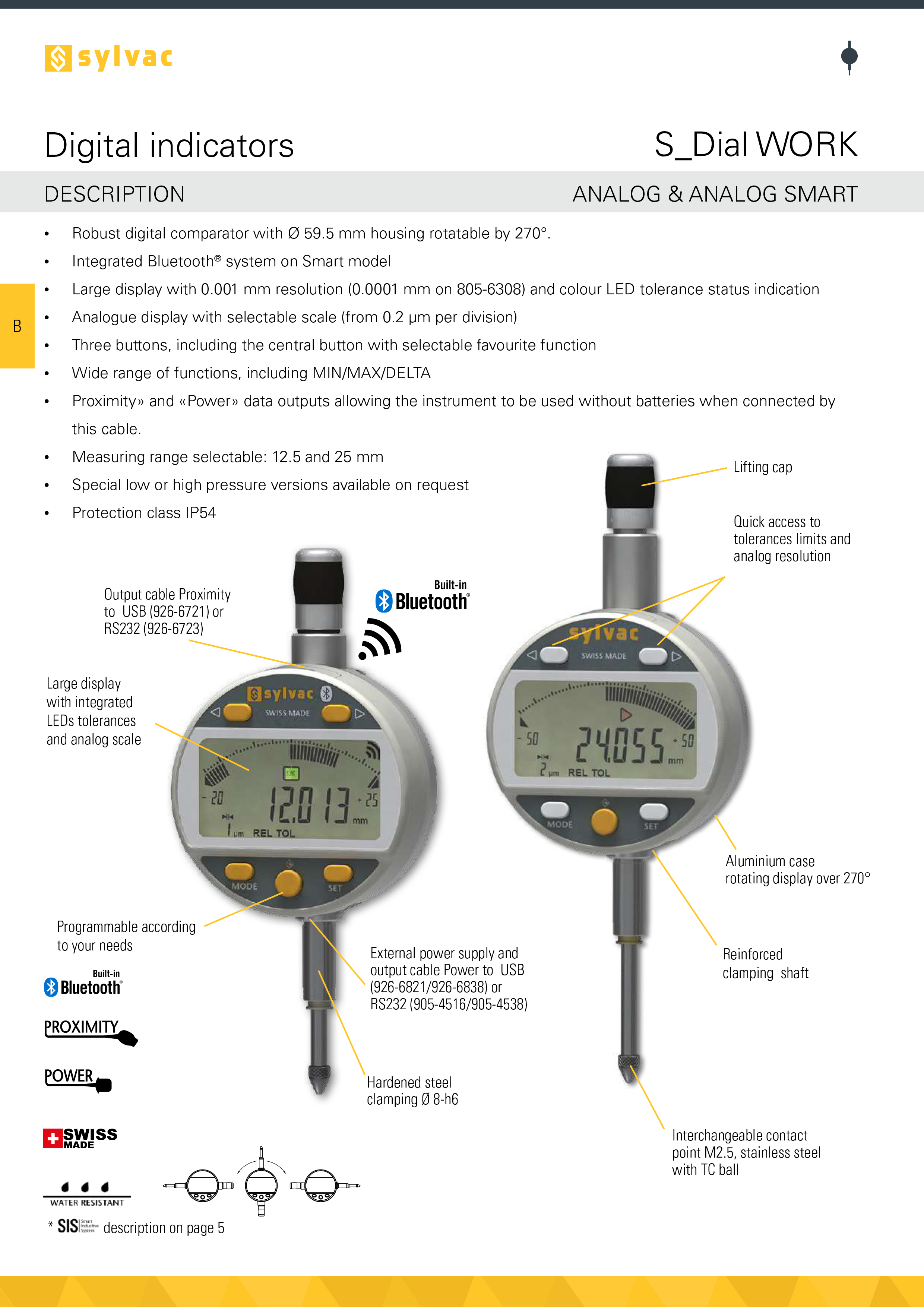

Robust digital comparator with Ø 59.5 mm housing rotatable by 270°.
Integrated Bluetooth® system on Smart model
Large display with 0.001 mm resolution (0.0001 mm on 805-6308) and colour LED tolerance status indication
Analogue display with selectable scale (from 0.2 μm per division)
Three buttons, including the central button with selectable favourite function
Wide range of functions, including MIN/MAX/DELTA
Proximity» and «Power» data outputs allowing the instrument to be used without batteries when connected by this cable.
Measuring range selectable: 12.5
Special low or high pressure versions available on request
Protection class IP54
Features
Adjustable Scale : Adaptive analog display with up to 0.2 μm per segment resolution and our robust digital comparator featuring 0.001 mm and 0.0001 mm (only 805-6308) resolution for meticulous measurements for precise readings.
Built to last : Robust construction, IP54 protection class, ensuring long-lasting performance.
Intelligent Efficiency : Optimize power consumption with automatic wake-up and sleeping modes powered by our Absolute System SIS. Access a wide range of functions, including MIN/MAX/DELTA, TOL, Factor, PRESET, and AUTO OFF.
Advanced connectivity : This indicator features a PUSB/RS232 data output on all models. Smart model adds an integrated Bluetooth® system, enabling quick and easy wireless data transfer. With just one button press, you can transfer measurement data seamlessly, saving time and minimizing the potential for data acquisition errors.
Intuitive Design, Impeccable Display : large, high-resolution display featuring a vibrant LED status indicator.
Versatile Measuring Ranges : selectable ranges of 12.5 mm and 25 mm, catering to various applications. Request special low or high-pressure versions as needed. Maximum error of 3 μm.
