Height Gauge for the Workshop - An easy-to-use, universal and reliable height gauge for the most difficult workshop environments.

Measuring Range

400 mm. 700 mm.

Brand : TRIMOS



  Brand TRIMOS (swiss made)

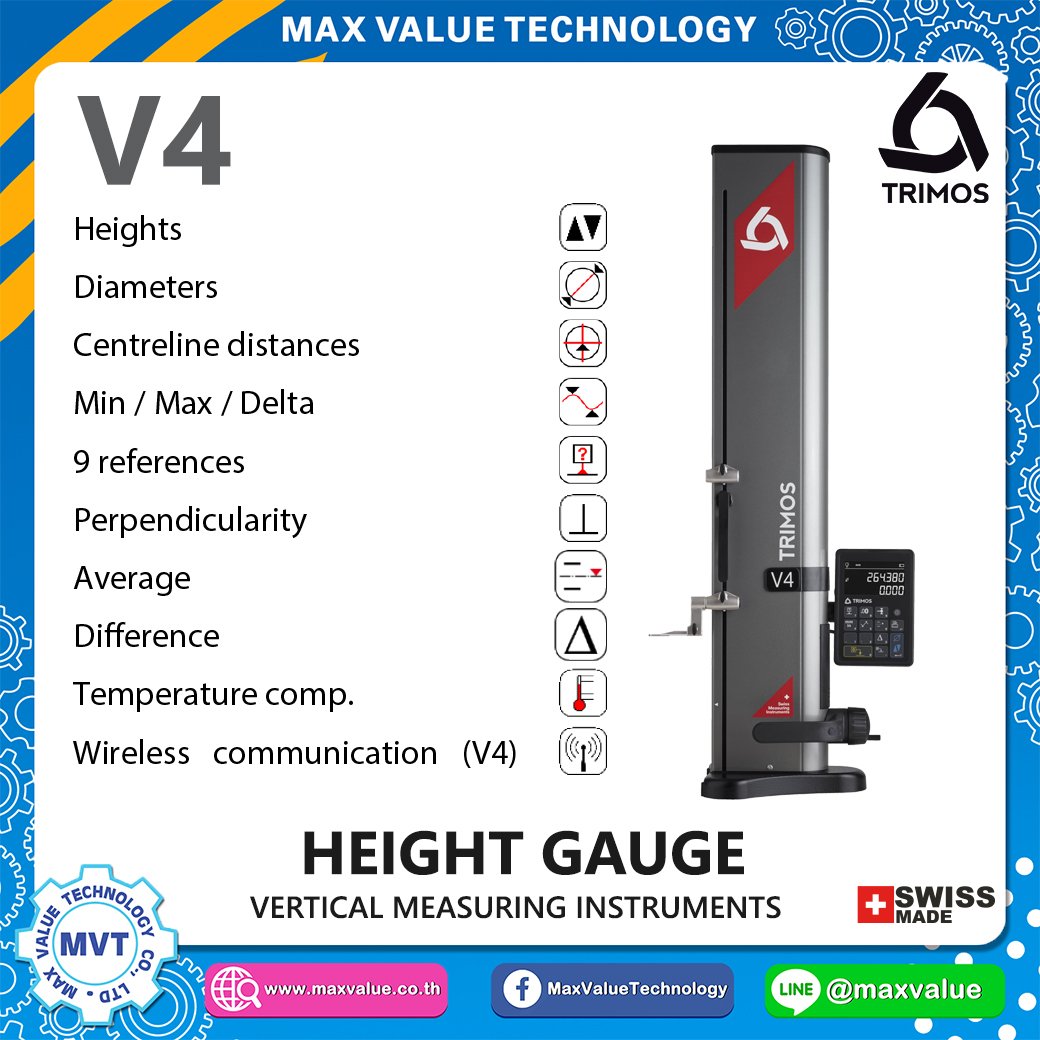

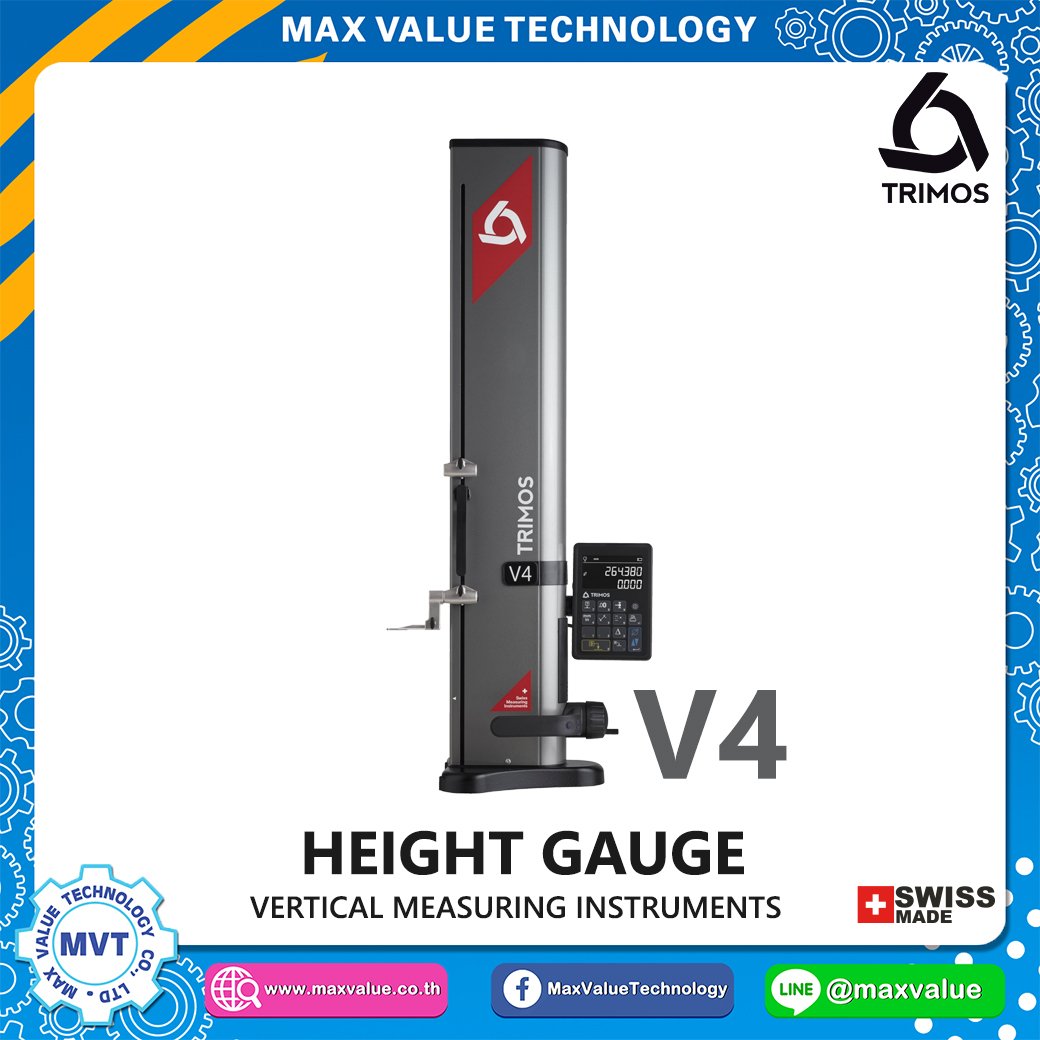

Height Gauge for the Workshop

The height gauge V4 have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product on the long run.

For more than 40 years Trimos philosophy has been to offer easy-to-use instruments that are very efficient in production environment.

The display unit provides functions that are directly accessible and depicted with symbols easy to understand.

This allows for easy and quick handling even by unqualified personnel. The large 2-line « Black Mask » display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.

The V4 measuring column offers the same functions as the V3. In addition it is equipped with a second probe holder as well as with an air cushion for easy displacement on the measuring table. The programmable functions buttons of the handle allow a quick access to the functions most used.

  • Measuring ranges 400 and 700 mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Autonomy: 20 h (Lithium-ion batteries)
  • Standard probes up to 400 mm
  • Vast range of accessories
  • All adjustments possible without tools
  • RS232 et USB interfaces

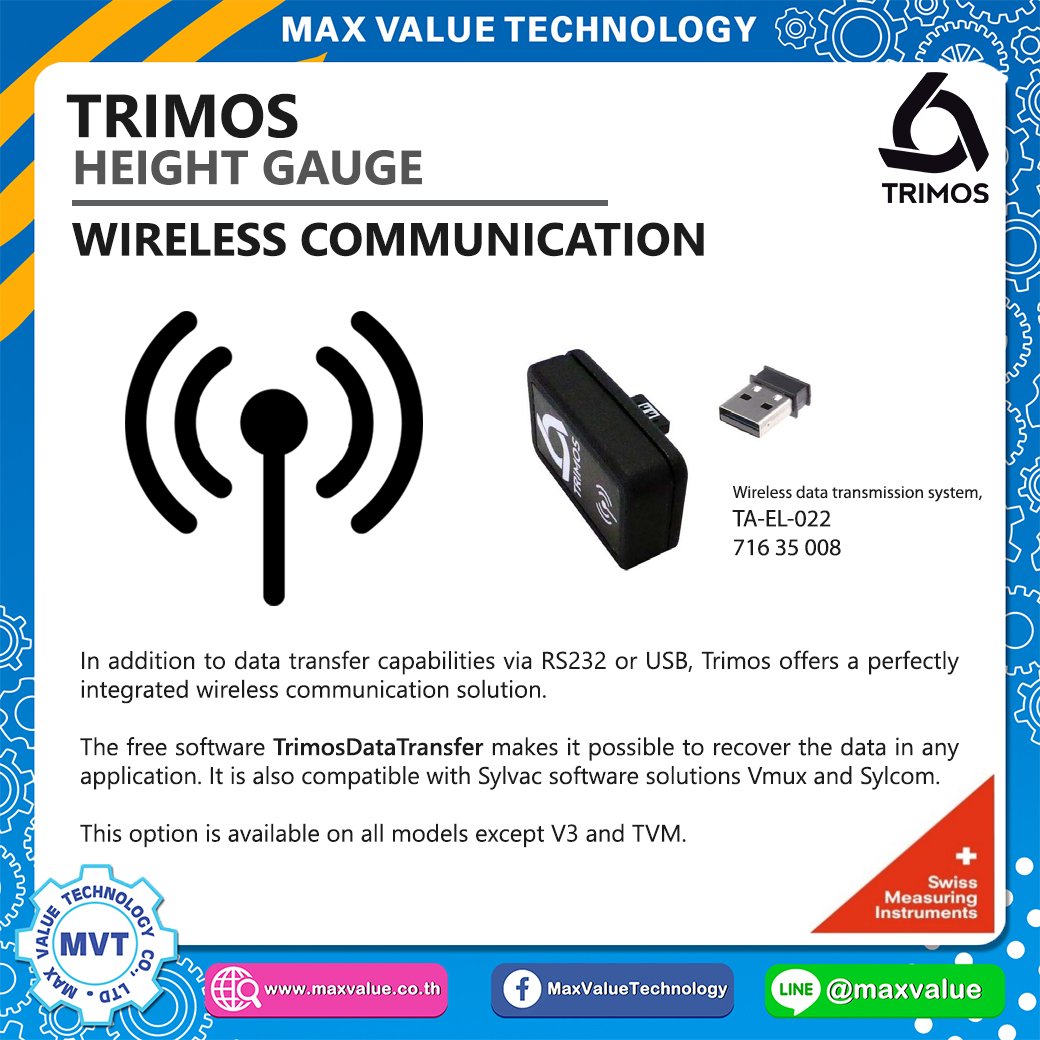

  • Wireless data transter (optional)

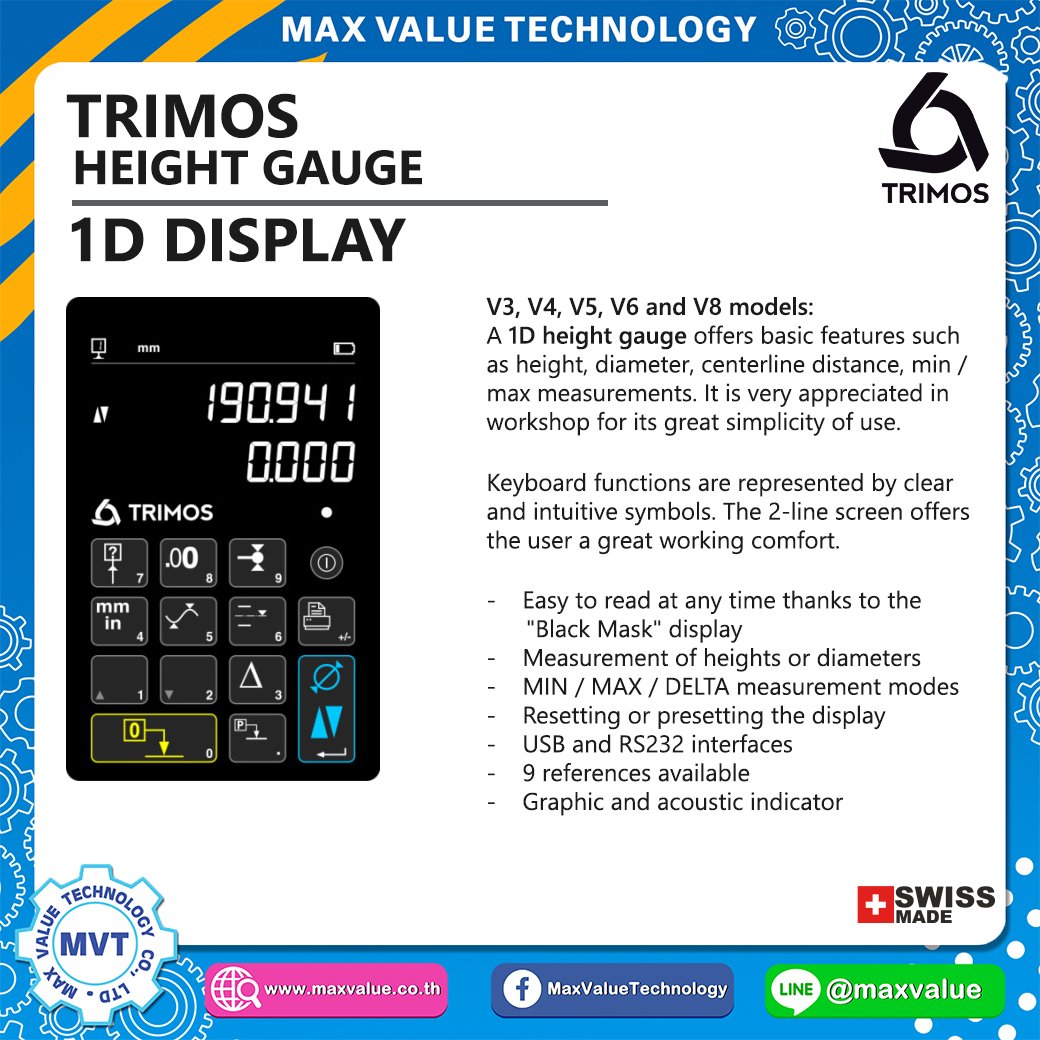

Keyboard functions are represented by clear and intuitive symbols. The display on 2 lines offers the user a great working comfort.

  • Excellent contrast with "black mask" display
  • Measurements of heights or diameters
  • Min / max / delta measuring modes
  • Zero or preset
  • 9 references available
  • Graphical and acoustic indicator
  • Smart reverse diameter measurement


 Video Presentation height gauge TRIMOS

 Video height gauge TRIMOS - Excellent Repeatability

 Video height gauge TRIMOS - Smart Reverse Technology


Measuring range
mm (in) 407 (16)711 (28)
Application range
mm (in)719 (28) 1023 (40)
Max permissible errors, BMPEµm4.56
Repeatability, RMPE (2s)µm2 (Ø: 4)
Frontal squareness deviation SMPEµm1015
Max. Resolutions
mm0.001 (0.00005)
Measuring force
N0.75 ÷ 1.5
Data output

USB / RS232 / Wireless (optional)
Air cushion Yes

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
