HEIGHT GAUGE - V9

Attribute:

Ultimate height gauge evolution - This Height gauge 2D has been developed for the most demanding users. Laboratories and workshops for whom measuring reliability is determining will fully appreciate its exceptional precision level and its "Swiss Made" finish.

Measuring Range

400 mm. 700 mm. 1100 mm.

Brand : TRIMOS

Share

HEIGHT GAUGE - V9

  Brand TRIMOS (swiss made)

Ultimate height gauge evolution

The height gauge V9 has been developed for the most demanding users. Laboratories and workshops for whom measuring reliability is determining will fully appreciate its exceptional precision level and its "Swiss Made" finish.

Metrological performances have been the core of the development of this height gauge. No compromise on precision and repeatability have been tolerated. This is why some construction details, particularly probe holders differ from other models.

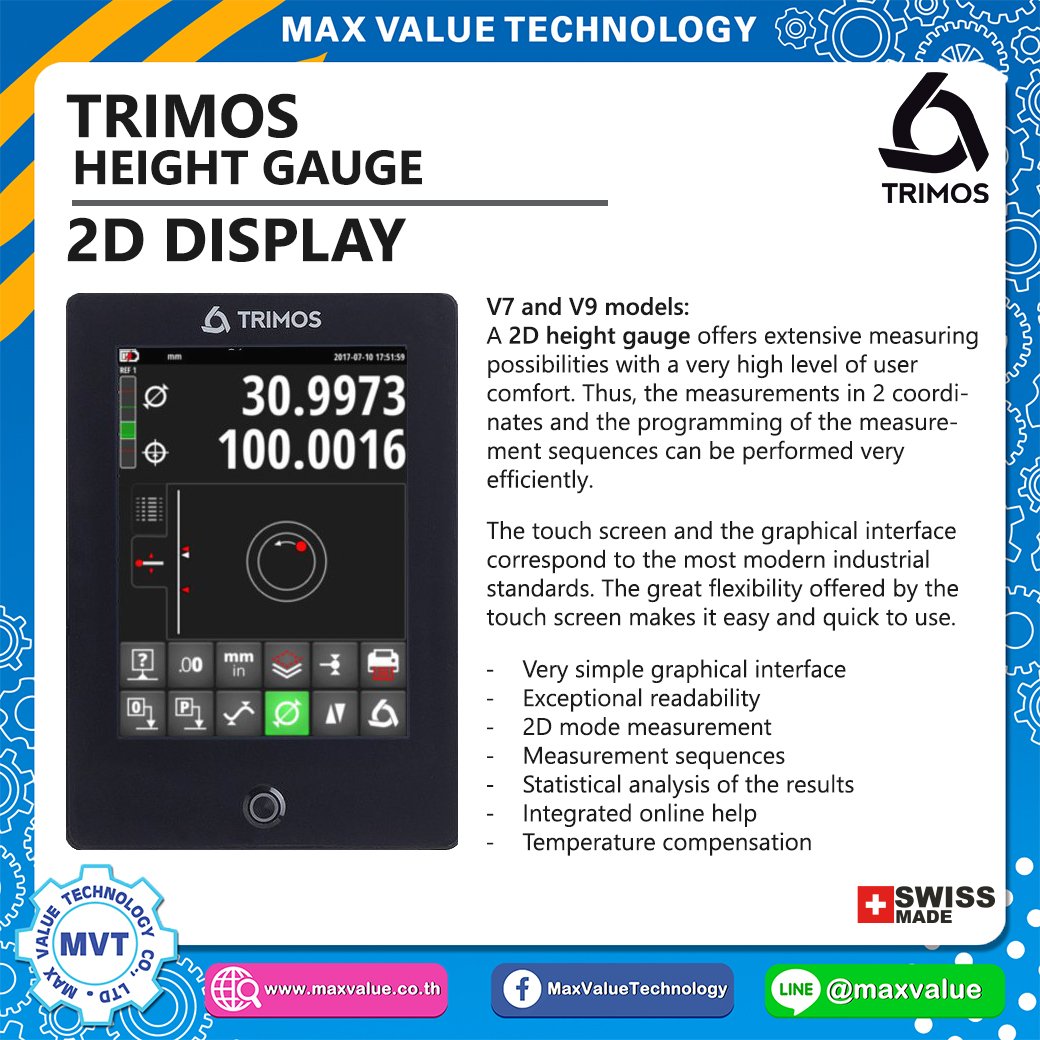

The display, based on an entirely tactile interface, offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angles measurements or statistical analysis of results.

The V9 are equipped with a revolutionary displacement handwheel allowing the user to choose either the manual or motorized displacement mode

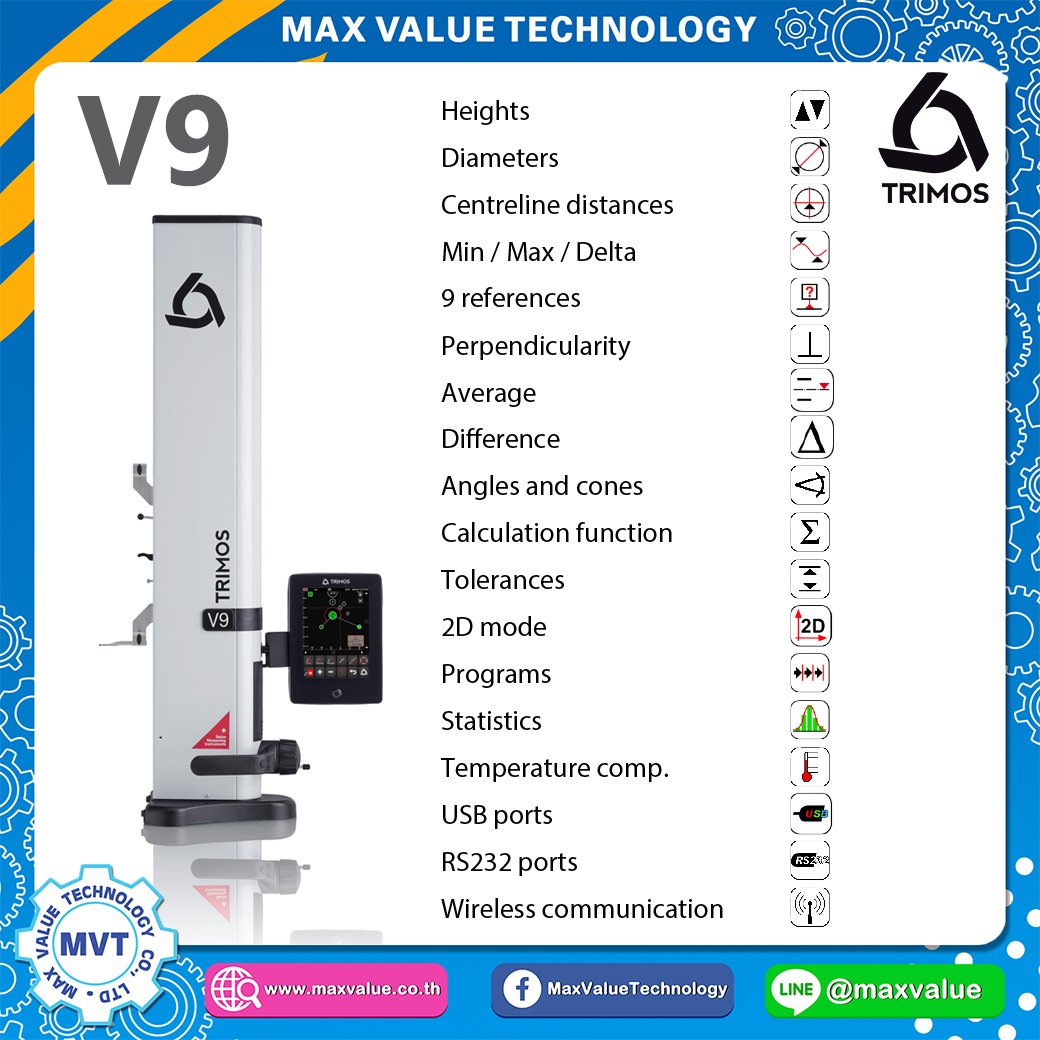

  • Measuring ranges 400, 700 and 1100 mm
  • Exceptional precision level
  • Electronically adjustable measuring force
  • Manual or motor-driven displacement
  • 2D, Programming, Statistics
  • Vast range of accessories
  • All adjustments possible without tools
  • RS232 and USB interfaces
  • Wireless data transter (optional)



DISPLAY/SOFTWARE

The choice and position of the symbols as well as the colors used in the interface comply with very strict ergonomic rules.
The result is a consistent package that provides readability and maximum user comfort.
The Smart Reverse function significantly improves diameter measurements.

  • Very simple graphic interface
  • Excellent readability
  • Measurement in 2D mode
  • Programming measurement seqences
  • Statistical analysis of results
  • Temperature compensation
  • Smart reverse diameter measurement



 Video Presentation height gauge TRIMOS


 Video height gauge TRIMOS - 2D Measurement

 Video height gauge TRIMOS - Smart Reverse Technology

 Video height gauge TRIMOS - How to see the statistics

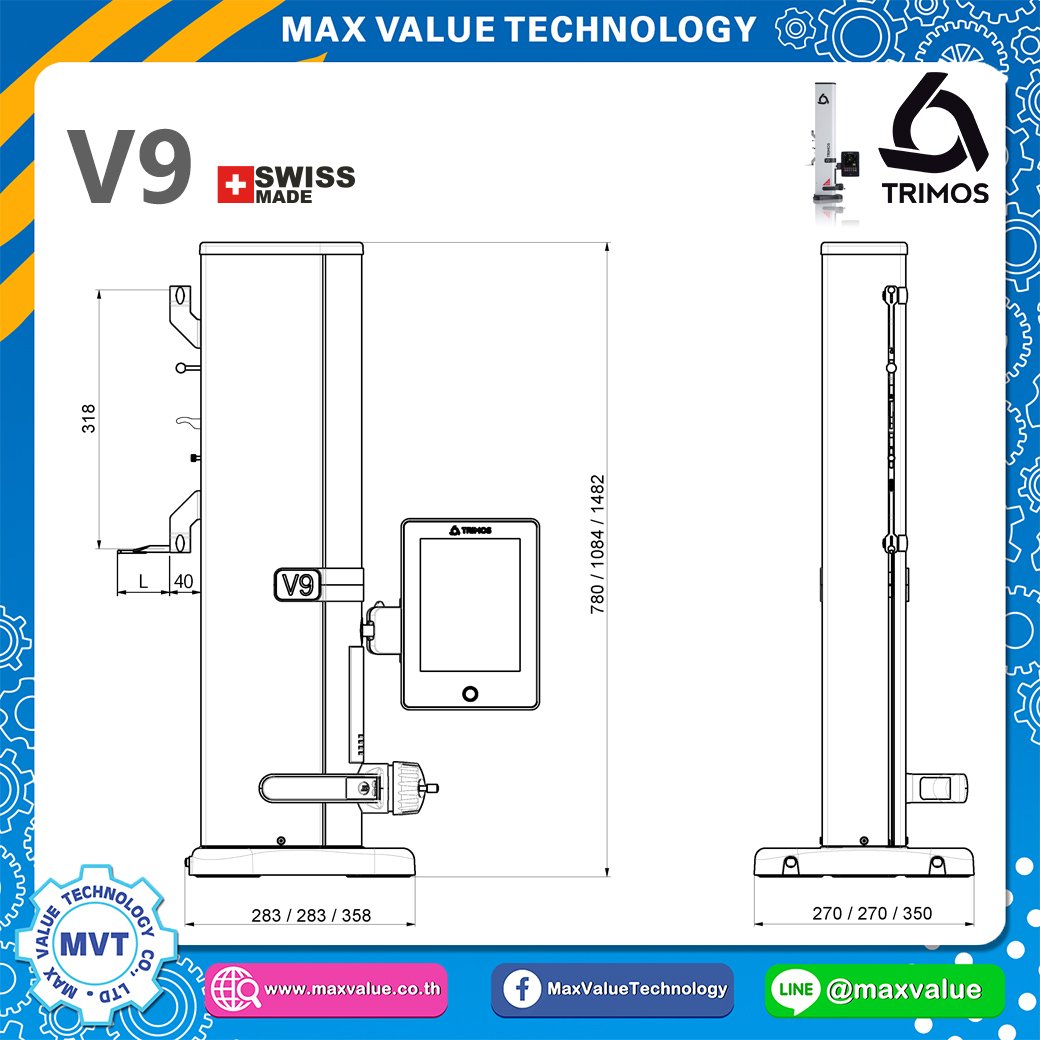

TECHNICAL SPECIFICATION

V9
4007001100
Measuring range
mm (in) 406 (16)710 (28)1109 (43)
Application range
mm (in)724 (28) 1028 (40) 1427 (56)
Max permissible errors, BMPEµm1.2 + L (mm)/1000
Repeatability, RMPE (2s)µm0.4 (Ø:1)
Frontal squareness deviation SMPEµm5811
Max. Resolutions
mm(in)0.0001 (0.00001)
Measuring force
N0.75 ÷ 1.5
Autonomy
h12
Data output

USB / RS232 / Wireless (optional)
Air cushion Yes
Weight
kg212433

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
