HEIGHT GAUGE - V5
Attribute:
Height Gauge for the Workshop - Height Gauge with excellent repeatability and with a evolutionary displacement handwheel offering its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven.
Measuring Range
Categories : Metrology Product , Height Gauge ,
Brand : TRIMOS
Share
HEIGHT GAUGE - V5
Brand TRIMOS (swiss made)
Height Gauge for the Workshop

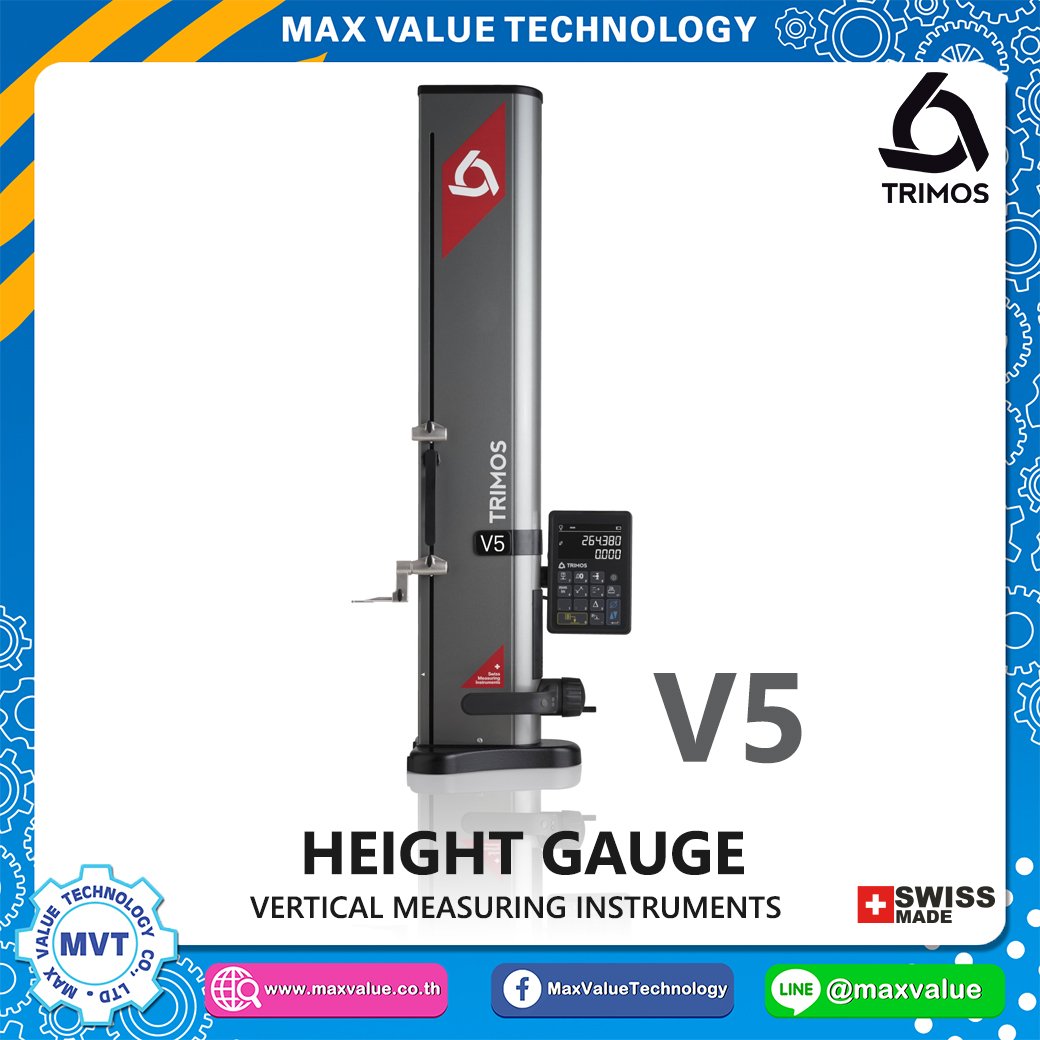

The height gauge V5 is the descendant of the legendary V+ line, from which thousands of copies have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.
Trimos was the first to offer vertical measuring instruments on the market more than 40 years ago. The V5 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V5 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.
The design of the V5 with its side probe holders revives an old Trimos tradition: They enable measuring with long, robust probes guaranteeing an excellent repeatability
- Measuring ranges 400, 700 and 1100 mm
- Extremely easy to use
- Electronically adjustable measuring force
- Manual or motor-driven displacement
- Standard probes up to 400 mm
- Vast range of accessories
- All adjustments possible without tools
- RS232 et USB interfaces
- Wireless data transter (optional)

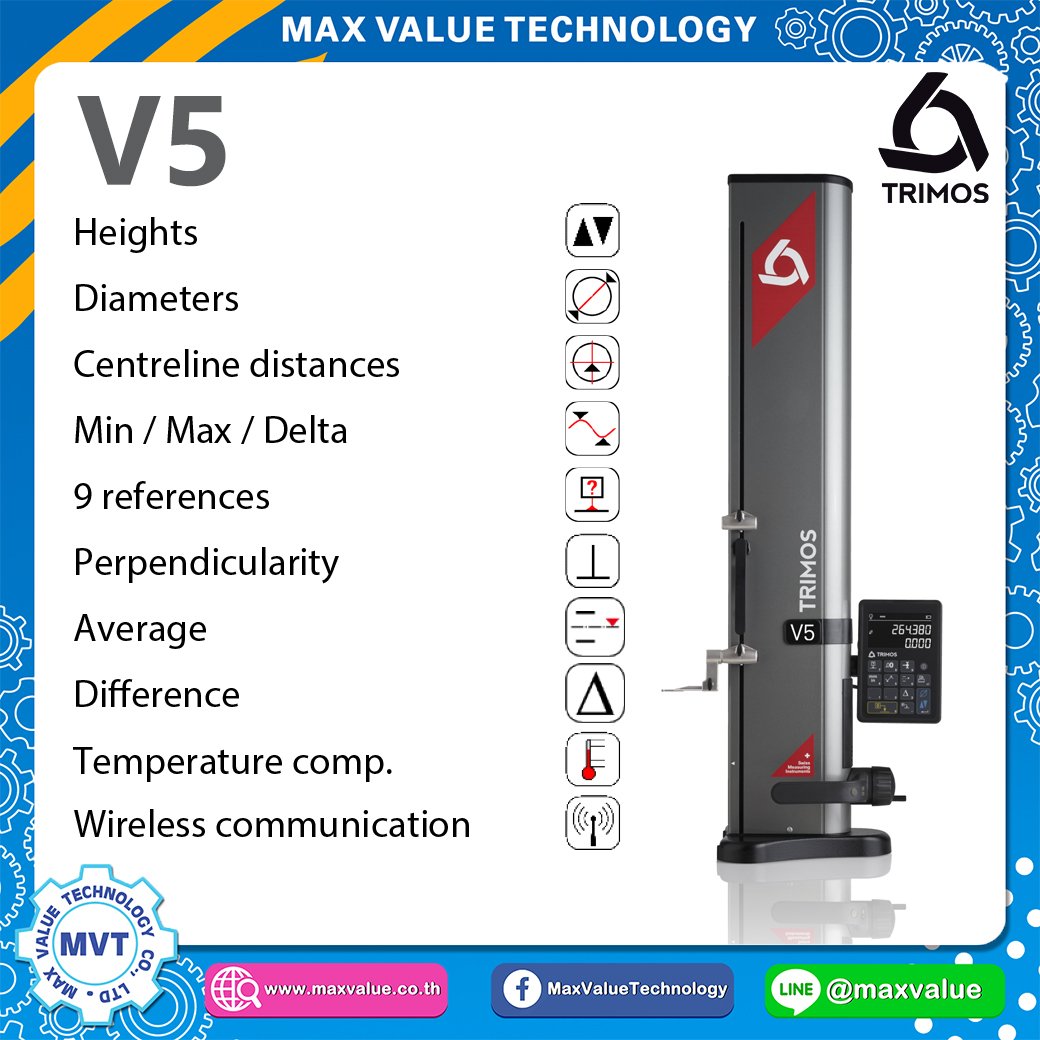

DISPLAY/SOFTWARE
Keyboard functions are represented by clear and intuitive symbols. The display on 2 lines offers the user a great working comfort.
- Excellent contrast with "black mask" display
- Measurements of heights or diameters
- Min / max / delta measuring modes
- Zero or preset function
- USB and RS232 data output
- 9 references available
- Graphical and acoustic probe indicator
- Smart reverse diameter measurement
Video Presentation height gauge TRIMOS
Video height gauge TRIMOS - Excellent Repeatability
Video height gauge TRIMOS - Smart Reverse Technology
TECHNICAL SPECIFICATION
| V5 | 400 | 700 | 1100 | |
| Measuring range | mm (in) | 407 (16) | 711 (28) | 1110 (44) |
| Application range | mm (in) | 719 (28) | 1023 (40) | 1422 (56) |
| Max permissible errors, BMPE | µm | 2.5 + L (mm)/300 | ||
| Repeatability, RMPE (2s) | µm | 2 | ||
| Frontal squareness deviation SMPE | µm | 2 | 8 | 11 |
| Max. Resolutions | mm(in) | 0.0005 (0.00005) | ||
| Measuring force | N | 0.75 ÷ 1.5 | ||
| Autonomy | h | 12 | ||
| Data output | USB / RS232 / Wireless (optional) | |||
| Air cushion | Yes | |||
| Weight | kg | 21 | 24 | 33 |
Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
Catalog TRIMOS height gauge - V5
Catalog TRIMOS height gauge - Accessories
Catalog TRIMOS height gauge - Accessories-set
Video Presentation height gauge TRIMOS
