K110 - External Caliper Gauge (Electronic) 0-10 mm

Attribute:

"KROEPLIN" (Made in Germany) Measurement of tube wall thickness I Range 0-10 mm. & Depth 35 mm. Ball Ø 1,5 mm

Brand : KROEPLIN

Share

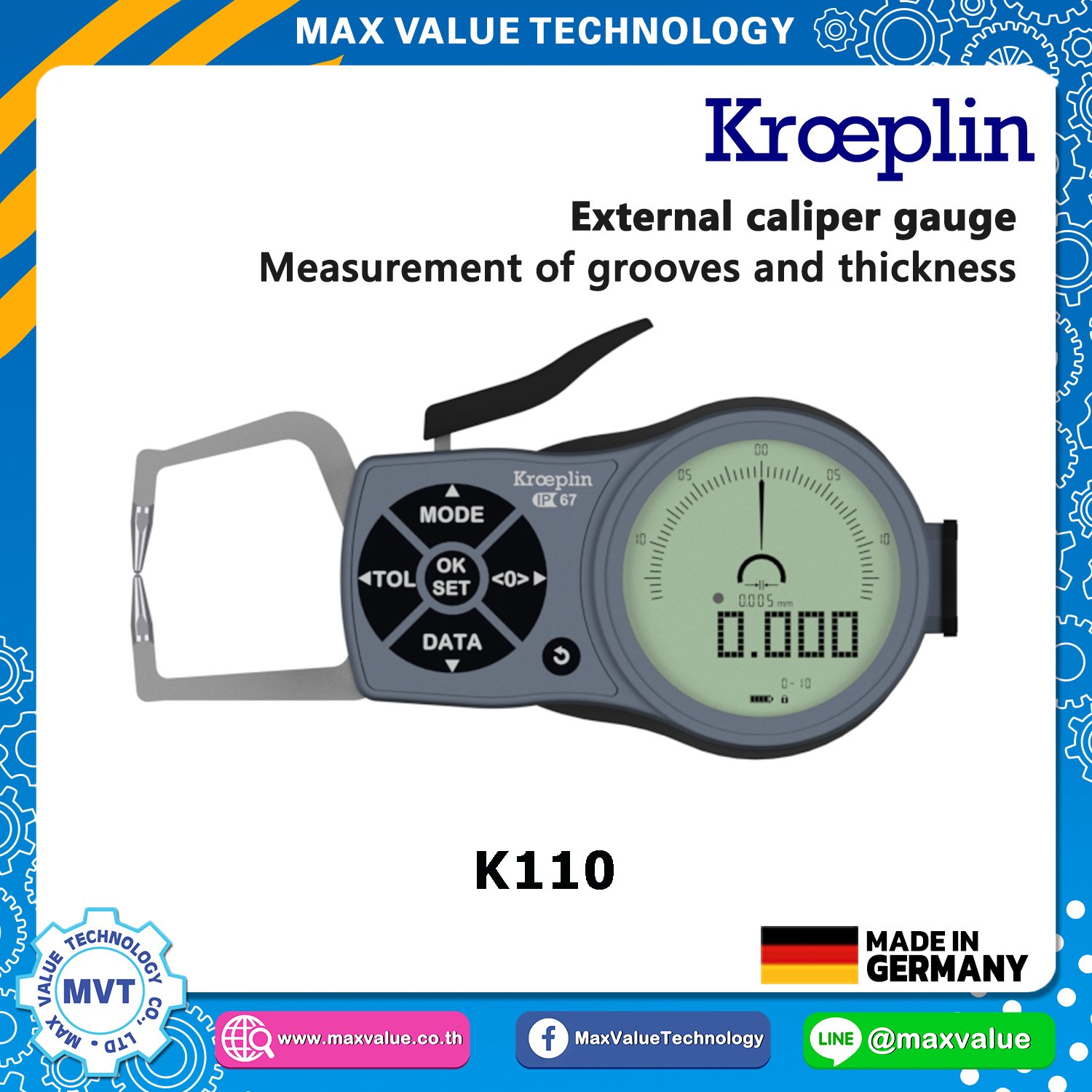

K110- External caliper gauge

Brand : KROEPLIN (Made in Germany)

-----------------

Electronic external measuring gauge

Measurement of tube wall thickness

- Measuring range Meb: 0 – 10 mm

- Numerical interval Zw: 0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm

- Measuring depth L max.: 35 mm



  Download Data sheet

  Download Catalog KROEPLIN



Additional information - caliper gauge

Type
K110
Display mm / inch
inch, mm, mm + inch
ApplicationExternal measurement
Measuring span Mes10 mm
Measuring range Meb
0 – 10 mm
Range of indication Azb0 – 10,5 mm
Numerical interval Zw 0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05mm
Max. permissible errors G0,015 mm
Repeatability limit r0,005 mm
Measuring force F min.1,2 N
Measuring force F max.1,6 N
Type of measuring contact movableHM-Ball Ø 1,5 mm
Measuring contact movable Hb19,1 mm
Type of measuring contact fixedHM-Ball Ø 1,5 mm
Measuring contact fixed Hf18,6 mm
Measuring depth max. L35 mm
Weight260 g
Protection classIP67
