C4150 - External Caliper Gauge (Electronic) 100-150 mm

Attribute:

"KROEPLIN" (Made in Germany) Measurement of grooves and thickness I Range 100-150 mm. & Depth 169 mm. Ball Ø 3 mm

Brand : KROEPLIN

Share

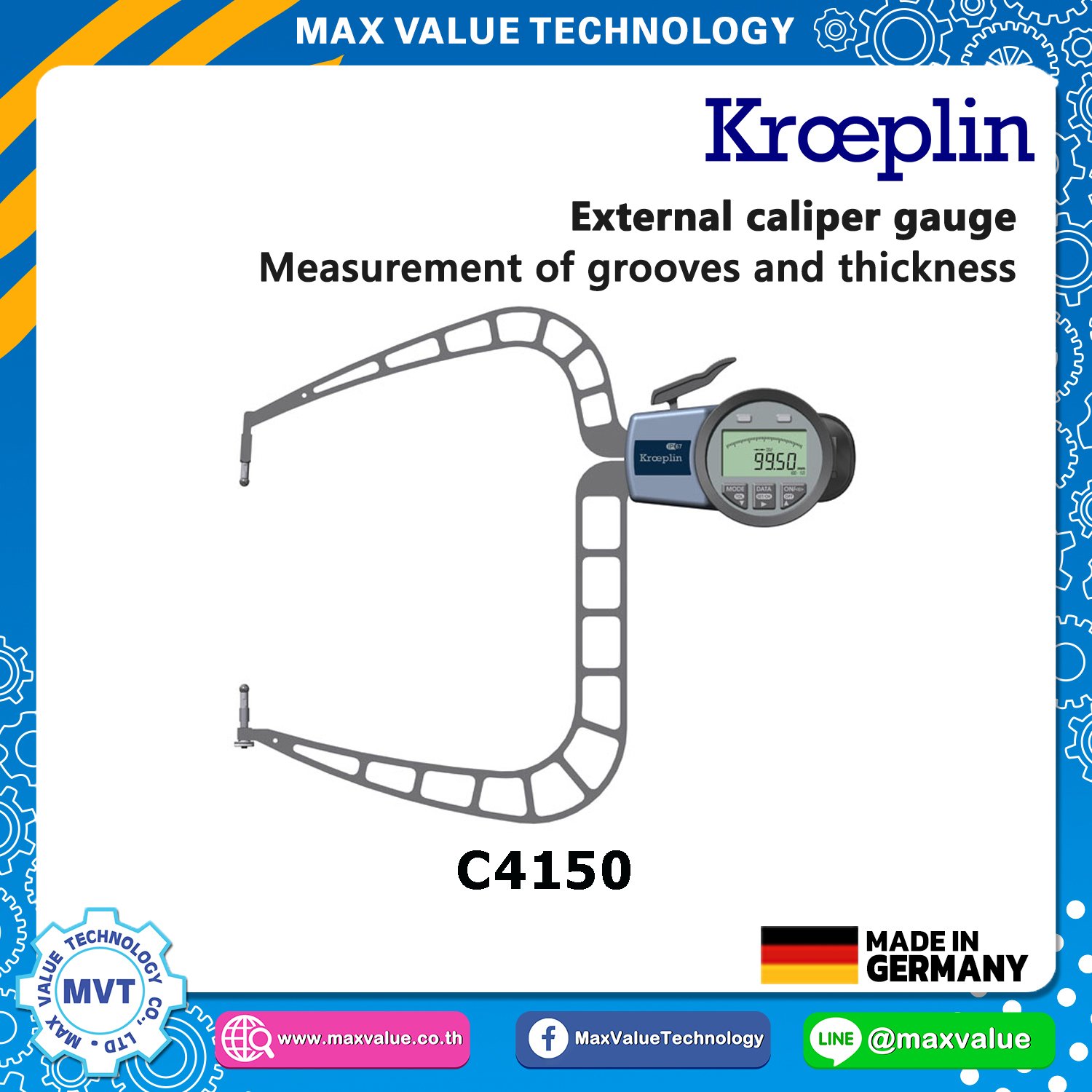

C4150- External caliper gauge

Brand : KROEPLIN (Made in Germany)

-----------------

Electronic external measuring gauge

Measurement of grooves and thickness

- Measuring range Meb: 100 – 150 mm

- Numerical interval Zw:  0,02 / 0,05 mm

- Measuring depth L max.: 169mm



  Download Data sheet

  Download Catalog KROEPLIN



Additional information - caliper gauge

Type
C4150
Display mm / inch
 mm + inch
ApplicationExternal measurement
Measuring span Mes50 mm
Measuring range Meb
100 – 150 mm
Range of indication Azb99,5 – 150,5 mm
Numerical interval Zw 0,02 / 0,05mm
Max. permissible errors G0,08 mm
Repeatability limit r0,06 mm
Measuring force F min.0,8 N
Measuring force F max.7 N
Type of measuring contact movableHM-Ball Ø 5 mm
Measuring contact movable Hb30 mm
Type of measuring contact fixed
Measuring contact fixed Hf30 mm
Measuring depth max. L169 mm
Weight530 g
Protection classIP67
