Clinotronic PLUS

Attribute:

"WYLER" The compact inclination measuring instrument Clinotronic PLUS provides a measuring capacity of ±45, ±60 degrees. (Range ±45°, Sensitivity 5 arcsec)

Model

Clinotronic PLUS ±45° Clinotronic PLUS ±60°

Versions

Cast

Brand : WYLER

Share

Clinotronic PLUS
Brand : Wyler (swiss made )
---------------------------------------

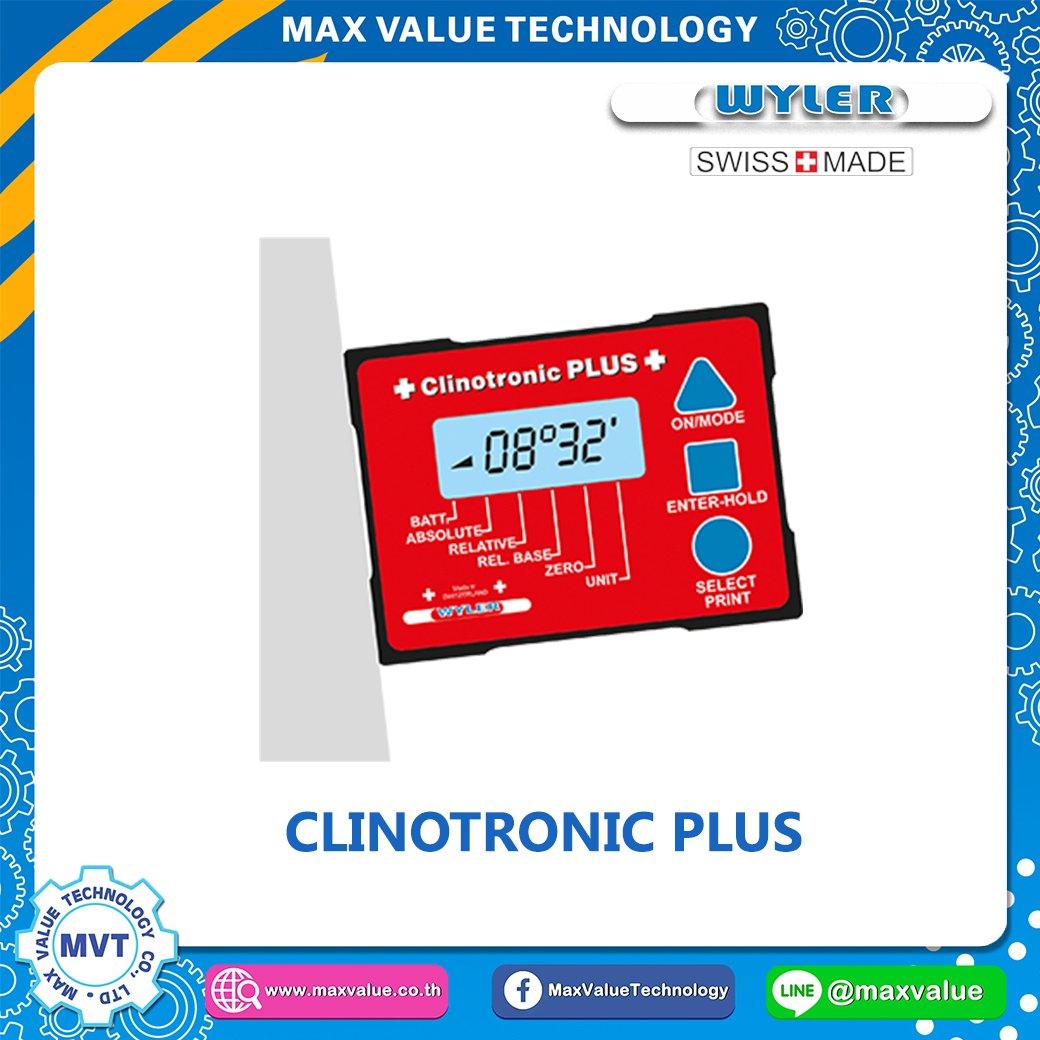

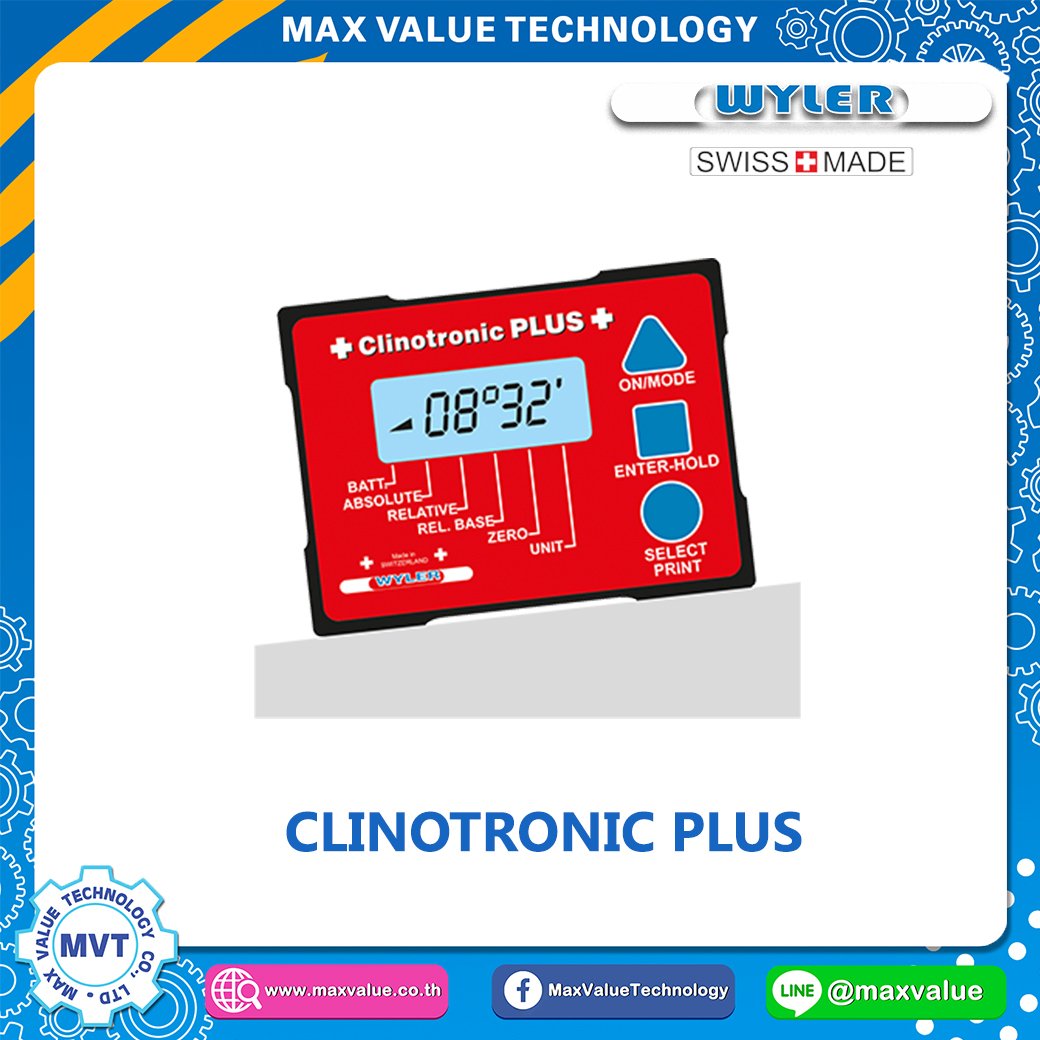

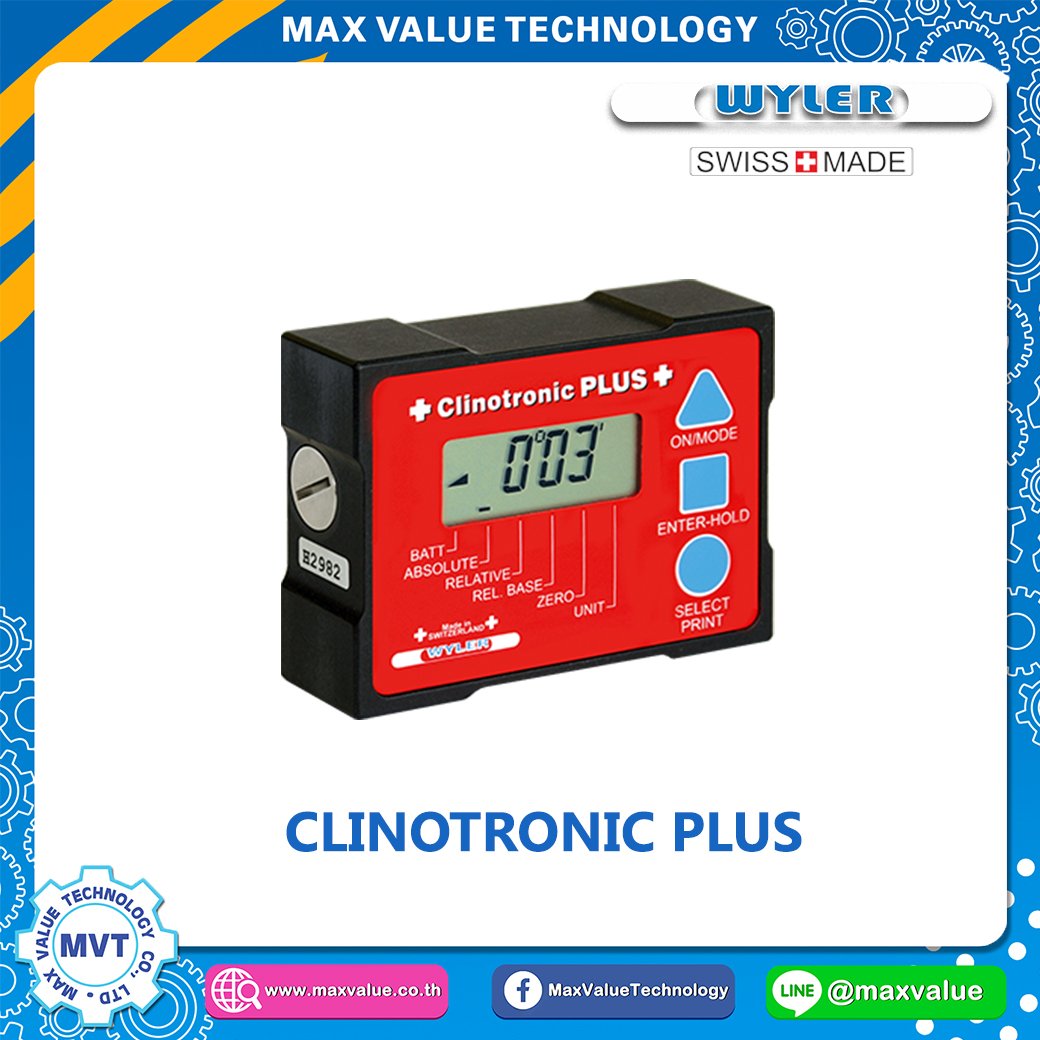

Clinotronic PLUS is a portable precision instrument for measuring inclinations up to ±45° or up to ±60°.



The compact Clinotronic PLUS inclination measuring instrument is known in the industry for its proven precision and robustness as well as for its versatility.

 Its main features are:

  • Stable aluminum housing, hard anodized
  • All four sides can be used as measuring bases
  • Display of measuring value in all standard units
  • Powered by standard 1.5V batteries, allowing cost-efficient reliability around the world
  • Option to connect to a PC
  • As options, magnetic inserts and threaded holes are available

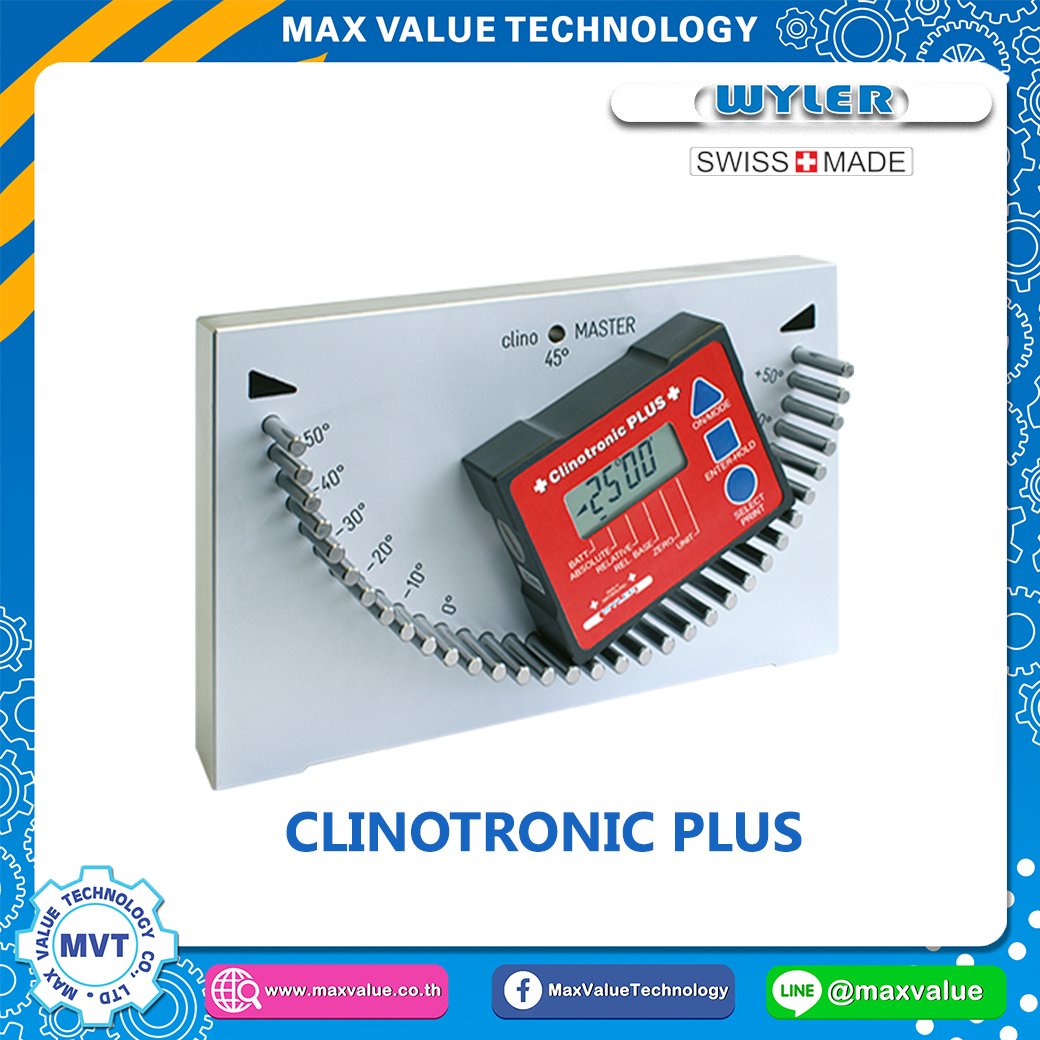

  • Optional ClinoMASTER allows a precise recalibration on site

Calibration Certificate:
 The Clinotronic PLUS can be delivered with an internationally recognised Calibration Certificate against a surcharge

Various:
Also the following expressions are common:
  • Clinometer
  • Inclinometer
  • digital inclination sensor
  • digital inclinometer
  • digital inclination measuring instrument
  • inclination sensor




CLINOTRONIC PLUS with threaded holes

Clinotronic PLUS with magnetic inserts

Application
Clinotronic PLUS

MECHANICAL ENGINEERING / INCLINATION OF A HUGE BEARING RING
Measuring task / Goal:
Checking the inclination at various positions of a huge bearing ring.

--------------------------------------------------------

MECHANICAL ENGINEERING / MACHINE TOOLS / ADJUSTMENT ANGLE OF A TOOL

Measuring task / Goal:
Checking the adjustment angle of a tool on a large rotating lathe.

--------------------------------------------------------

FORMULA 1 CAR RACING

Measuring task / Goal:
Checking and precise adjustment of the wheel mounting, particularly of the wheel camber. These checks and adjustments are carried out between the different training laps to optimize the values for the actual race.

--------------------------------------------------------

MAPPING A GOLF GREEN

Measuring task / Goal:
Mapping of the inclinations on the Green areas of a Golf course.

Some golf courses in England measure the flatness of the „Green“ in a simple way. A special vehicle has been constructed, on which two CLINOTRONIC are mounted in a right angles to each other.

Both are connected to a small printer. The green is checked according to a pre-set pattern and at each measuring point, after a short stop, the inclination angles determined in the two directions are recorded and printed.

--------------------------------------------------------

CALIBRATION OF TESTING MACHINES

Measuring task:
Many testing machines, like those used for impact testing, require precise angle setting. They therefore must be recalibrated regularly.

--------------------------------------------------------

RADIO ONCOLOG / CALIBRATION ON LINAC MECHANICS

Subject:
In order to keep service downtime of the Linac as short as possible, en efficient and accurate way to calibrate Gantry settings, collimator angle and to adjust Couch Roll is needed.

Measuring task / Goal:
The small dimensions (100x75x30 mm) and the light weight (485 Gramm) together with the 4 precise measuring bases situated around the periphery, make the CLINOTRONIC Plus  the ideal instrument for the calibration task.

--------------------------------------------------------

AIRPLANE CONSTRUCTION: MEASURING THE PROFILE OF AN AIRPLANE PROPELLER

Subject:
In production, the profile of an airplane-propeller is measured with the help of a CMM. During maintenance work it would be cumbersome to remove the whole propeller and rarely there is a CMMs available on smaller airports.

Measuring task:
The profile of a propeller must be measured easily and precisely on site without the need to remove the propeller.

--------------------------------------------------------

MEASURING OF THE INCLINATION OF THE ROAD SURFACE

Subject:
Roads are cambered in the middle to ensure a proper drain of the rainwater. The inclination of this camber must be within certain tolerances to guarantee a safe driving.

Measuring task:
The inclination of the road must be measured regularly during the placement of the road surface to ensure that the inclination remains within the tolerances. The measurements must be made by road workers at various temperatures (summer and hot tar) and even at insufficient light conditions (evening).

--------------------------------------------------------

ALIGNMENT OF SOLAR PANELS

Subject:
Solar panels must be perfectly adjusted to the sun to ensure best possible performance.

Measuring task:
The inclination of each single solar panel must be verified periodically. A measuring range of up to ±60° is required.
